VehiclesYokomo Master Offroad MO3.0

Yokomo Master Offroad MO3.0 Chassis

Name: Yokomo Master Offroad MO3.0
Brand: Yokomo
SKU: MOR-030

1/10 scale · 4WD buggy chassis kit · MOR-030

Yokomo's Master Offroad MO3.0 is a 1/10 four-wheel-drive electric buggy kit, sold without motor, electronics, pinion, tires or wheels.

Its 80T spur works through a 2.5:1 reduction to the wheels, and Yokomo's chart for that spur runs from 11.76:1 with a 17T pinion to 6.45:1 with a 31T. The manual gives a thinner diff oil for dirt and a thicker one for carpet and turf. Choose a pinion for your motor, then enter it in the gearing tool to see the speed it gives.

Transmission & axle: 2.50:1
Spur: 80T
Introduced: 2025

Gearing Top speedsourced

Sold without a motor, so there is no stock KV: compare gearing by rollout.

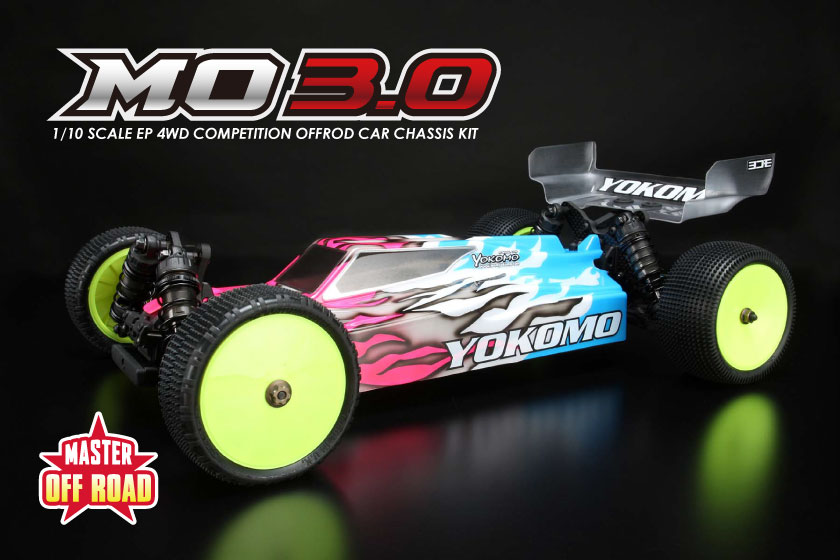

Yokomo Master Offroad MO3.0 — Photo: Yokomo (opens in a new tab)

Specifications

Last modified Sep 28, 2026

Spec	Value	Basis
Vehicle
Class The kind of vehicle the maker sells it as. It sets what the car is built to do and which cars it is fair to compare it with. Buggies are low, light off-road cars built for jumps and fast corners on dirt, clay or turf tracks. Drive All four wheels are driven. That gives more grip under power, especially on loose ground. The cost is more parts to maintain. Power Sold without a motor, so you choose the motor, ESC and battery yourself. Rows that depend on the motor say so. Build A kit you build yourself from parts. Most kits come without motor, ESC, servo, radio and battery, and many without tires or a painted body. The manual lists what to add. Scale The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement. A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size. Part number The maker's product number for this exact version. A V2, a new color, or a kit instead of an RTR usually has a different number, and parts can differ between them. Check it against your box or receipt before ordering parts.
Class	Buggy
Drive	4WD
Power	Motor not included
Build	Kit
Scale	1/10
Part number	MOR-030
Drivetrain
Pinion The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite. On a chassis sold as kits, each kit brings its own. Spur The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter. Pinion and spur must have the same pitch, or tooth size, to mesh. Transmission & axle Every reduction after the spur, multiplied together: transmission, differentials and axle gears. It is fixed by the design; the gearing you change is the pinion and spur. This one is worked out from the tooth counts the maker publishes. Final drive How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed. The range comes from the maker's gearing chart for the pinions it lists.
Pinion	Not applicable
Spur	80TStock	Stock
Transmission & axle	2.50:1Derived	Derived
Final drive	6.45 to 11.76:1 on 31T to 17T pinionsMaker's chart	Maker's chart
Wheels & tires
Tire diameter The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller. Race tires wear down over a day, and a smaller tire gears the car shorter.
Tire diameter	Not applicable
Power
Motor Motor KV is the RPM a motor turns per volt with no load. This vehicle comes without a motor, so there is no stock KV; it depends on the one you fit. Motor shaft The diameter of the motor's output shaft, which a pinion's bore must match. This vehicle comes without a motor, so it depends on the one you fit. Battery The highest LiPo cell count the maker rates the electronics for. This vehicle comes without electronics, so it depends on the ESC and motor you fit.
Motor	Not applicable
Motor shaft	Not applicable
Battery	Not applicable
Performance
Theoretical top speed It needs a motor KV, and this vehicle comes without a motor. Fit one and the calculator works it out from the motor's KV and the gearing.
Theoretical top speed	Not applicable

How to read these figures

Stock is as the vehicle ships.
Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart.
Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how.
Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
Maker’s chart is the ratios the maker prints for this chassis with the pinions it names.

How these numbers were settled

The manual's table of pinions that fit the standard 80T spur (Z2-SG80SDA) runs from 11.76 with a 17T pinion to 6.45 with a 31T; every cell works out to the same 2.5 after the spur (80/20 x 2.5 = 10.00), so that ratio is derived from the table rather than printed.

The manual gives two diff oils, #5,000 for dirt and #10,000 for carpet and artificial turf, so no single kit oil is shown.
Pinion, motor, tires and wheels are bought separately.
