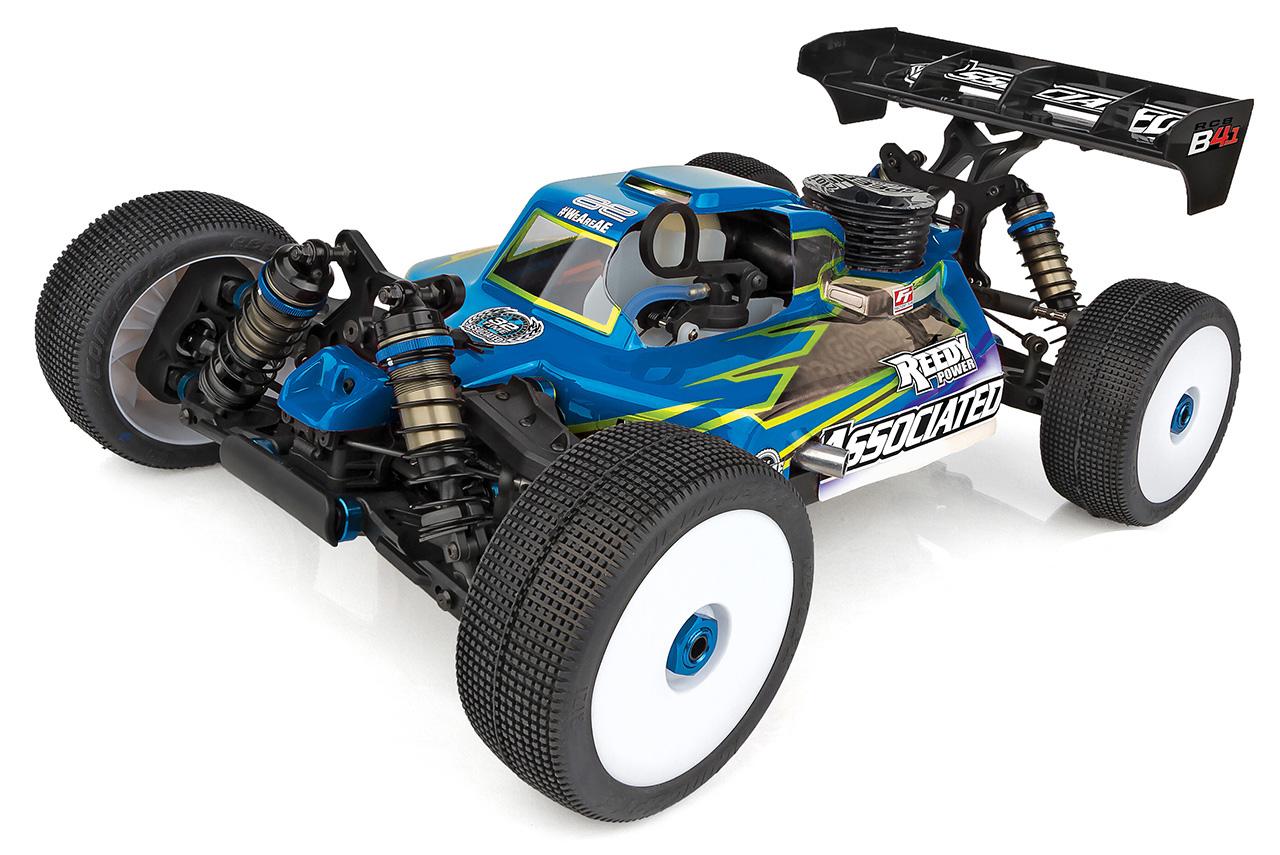

VehiclesTeam Associated RC8B4.1 Team Kit
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 13TStock | Stock |
| Spur | 47TStock | Stock |
| Transmission & axle | 3.38:1Stock | Stock |
| Final drive | 12.24:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not applicable | |
| Power | ||
| Motor | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | 80949 | |
| Scale | 1/8 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
How these numbers were settled
Nitro kit, same treatment as the RC8B4.2: 13T clutch bell 81374 supplied, engine not, 'Wheels, Tires, and Foam Inserts Not Included!'.
- The after-spur figure is part 81468, the 44/13 diff ring gear set.
- The 12.238 total is derived from the kit's own 47/13 and 3.385, not published by Associated.
Sources
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
