Tamiya M-05Ra Chassis

Name: Tamiya M-05Ra
Brand: Tamiya

1/10 scale · 2WD chassis · sold as kits

Tamiya's M-05Ra is the rally version of the M-05, a 1/10 front-wheel-drive chassis set up for flat dirt as well as pavement, sold as the Citroen 2CV Rally and Renault 5 Turbo kits.

It comes with a 16T pinion for 7.25:1, and the same table as the M-05 gives 6.44:1 on an 18T and 5.8:1 on a 20T. The kits are built on a 210 mm or 239 mm wheelbase depending on the body. Tamiya does not publish the spur or gearbox stage, so enter your pinion in the gearing tool to see the ratio.

Final drive: 5.80 to 7.25:1on 20T to 16T
Wheelbase: 210 / 239mm
Introduced: 2010

Gearing Top speedsourced

The pinion, motor and tires come with each kit: enter yours in the gearing tool.

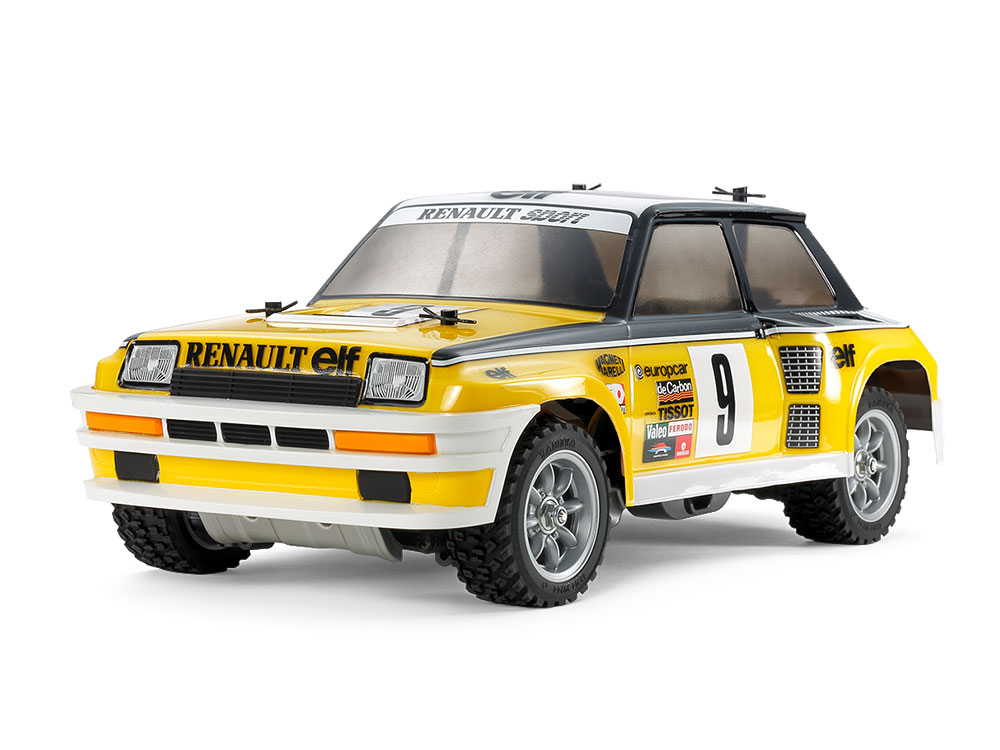

Tamiya M-05Ra — Photo: Tamiya (opens in a new tab)

Kits on this chassis Built on the M-05Ra

Each kit adds its own body, tires, pinion and motor. The chassis figures below apply to all of them.

Kit	Part no.	Maker page
Renault 5 Turbo	47435	tamiya.comPage (opens in a new tab)

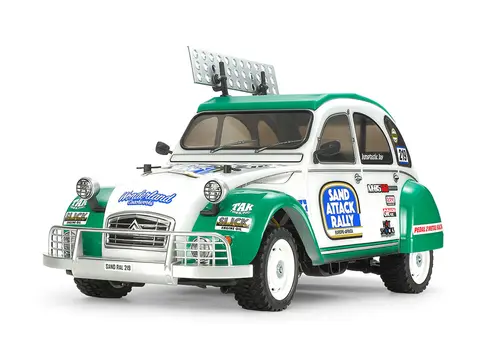

Citroen 2CV Rally	58670	tamiya.comPage (opens in a new tab)

Specifications

Last modified Sep 29, 2026

Spec	Value	Basis
Vehicle
Class The kind of vehicle the maker sells it as. It sets what the car is built to do and which cars it is fair to compare it with. Rally cars are 4WD cars with more suspension travel and treaded tires, for dirt, gravel and broken pavement. The maker does not name a class for this one, so this is the site's judgment from its design. Drive Only one axle is driven, the rear on almost every 2WD RC car. It is lighter and simpler, and it takes more throttle control on loose ground. Build A kit you build yourself from parts. Most kits come without motor, ESC, servo, radio and battery, and many without tires or a painted body. The manual lists what to add. Scale The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement. A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size.
Class	Rallyour call
Drive	2WD
Build	Kit
Scale	1/10
Drivetrain
Pinion The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite. On a chassis sold as kits, each kit brings its own. Spur The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter. Pinion and spur must have the same pitch, or tooth size, to mesh. Transmission & axle Every reduction after the spur, multiplied together: transmission, differentials and axle gears. It is fixed by the design; the gearing you change is the pinion and spur. Final drive, printed How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed.
Pinion	With each kit
Spur	Not published
Transmission & axle	Not published
Final drive, printed	7.25:1 on 16T, 6.44:1 on 18T, 5.80:1 on 20TMaker's chart	Maker's chart
Wheels & tires
Tire diameter The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller. At high speed tires can balloon and grow, so the real gearing gets taller as the car goes faster.
Tire diameter	With each kit
Power
Motor Motor KV is the RPM a motor turns per volt with no load. This vehicle comes without a motor, so there is no stock KV; it depends on the one you fit. Battery The highest LiPo cell count the maker rates the electronics for. This vehicle comes without electronics, so it depends on the ESC and motor you fit.
Motor	With each kit
Battery	With each kit
Size & weight
Wheelbase The distance between the front and rear axle centers. A longer wheelbase is steadier at speed and over bumps; a shorter one turns more tightly. This chassis can be set to more than one wheelbase.
Wheelbase	210 or 239mm, 2 settingsStock	Stock

How to read these figures

Stock is as the vehicle ships.
Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart.
Not published means it exists but no source we could find prints it.
With each kit means each kit on this chassis brings its own, so enter yours in the gearing tool.
Maker’s chart is the ratios the maker prints for this chassis with the pinions it names.

Other versions of this chassis

M-05ChassisFront-drive chassis · 2009

How these numbers were settled

The M-05Ra manual fits a 16T pinion (BA33 '16T Pinion gear') and prints the same pinion options as the M-05, 16T (7.25:1), 18T (6.44:1) and 20T (5.8:1) (step 11, PDF p. 7); both current kits print 7.25:1, 'ギヤ比＝7.25：1' on the Citroen 2CV Rally 58670 and the Renault 5 Turbo 47435.

The spur and gearbox stage are not published, so pinion x ratio is the only gearing fact.
Tamiya describes it as the front-wheel-drive M-05 adapted for flat dirt ('M-05シャーシをベースに､フラットダート走行に対応').
The kit pages print 239mm (2CV Rally) and 210mm (Renault 5 Turbo) wheelbases.

Sources

Every figure on this page traces to one of these; where they disagreed, the note above says which was used and why. Links open in a new tab.

Maker documents

M-05Ra chassis instruction manual (Tamiya PDF) (opens in a new tab)16T pinion BA33 and pinion options table, step 11, PDF p. 7tamiya.comUsed forMain specs

Parts and electronics

Products 58670 (opens in a new tab)tamiya.comUsed forMain specs
Products 47435 (opens in a new tab)tamiya.comUsed forMain specs
Product info EX (opens in a new tab)tamiya.comUsed forMain specs
