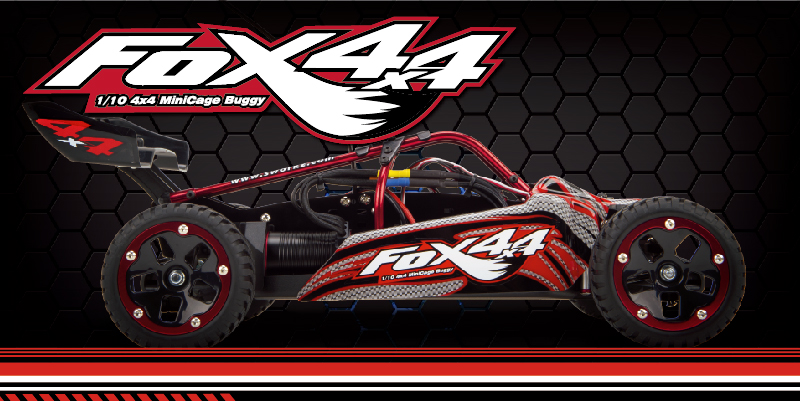

VehiclesSWORKz FOX 4x4
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 22TStock | Stock |
| Spur | 70TStock | Stock |
| Transmission & axle | 3.36:1Derived | Derived |
| Final drive | 10.70:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not published | |
| Power | ||
| Motor | Not published | |
| Battery | Not published | |
| Performance | ||
| Theoretical top speed | Not published | |
| Vehicle | ||
| Part number | SW-940001 | |
| Scale | 1/10 | |
| Class | Buggy | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not published means it exists but no source we could find prints it.
How these numbers were settled
Ready-to-run 1/10 4x4 minicage buggy with a SWORKz SP-3500 3652 brushless motor and SE-50 50A ESC, both made by HobbyWing.
- Sworkz prints 'Gear Ratio: C:70/22T, F/R:37/11T', so the ratio after the spur is 37/11 = 3.3636 and 70/22 x 3.3636 = 10.70 is worked out, not printed.
- Sworkz publishes no KV for the motor, no cell rating for the ESC and no tire size, so all three are left blank.
Documents
- ManualInstruction manual (SWORKz PDF) (opens in a new tab)Spec p. 3; replacement parts list p. 33-35
Sources
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
