VehiclesMaverick Microbe SC Flux

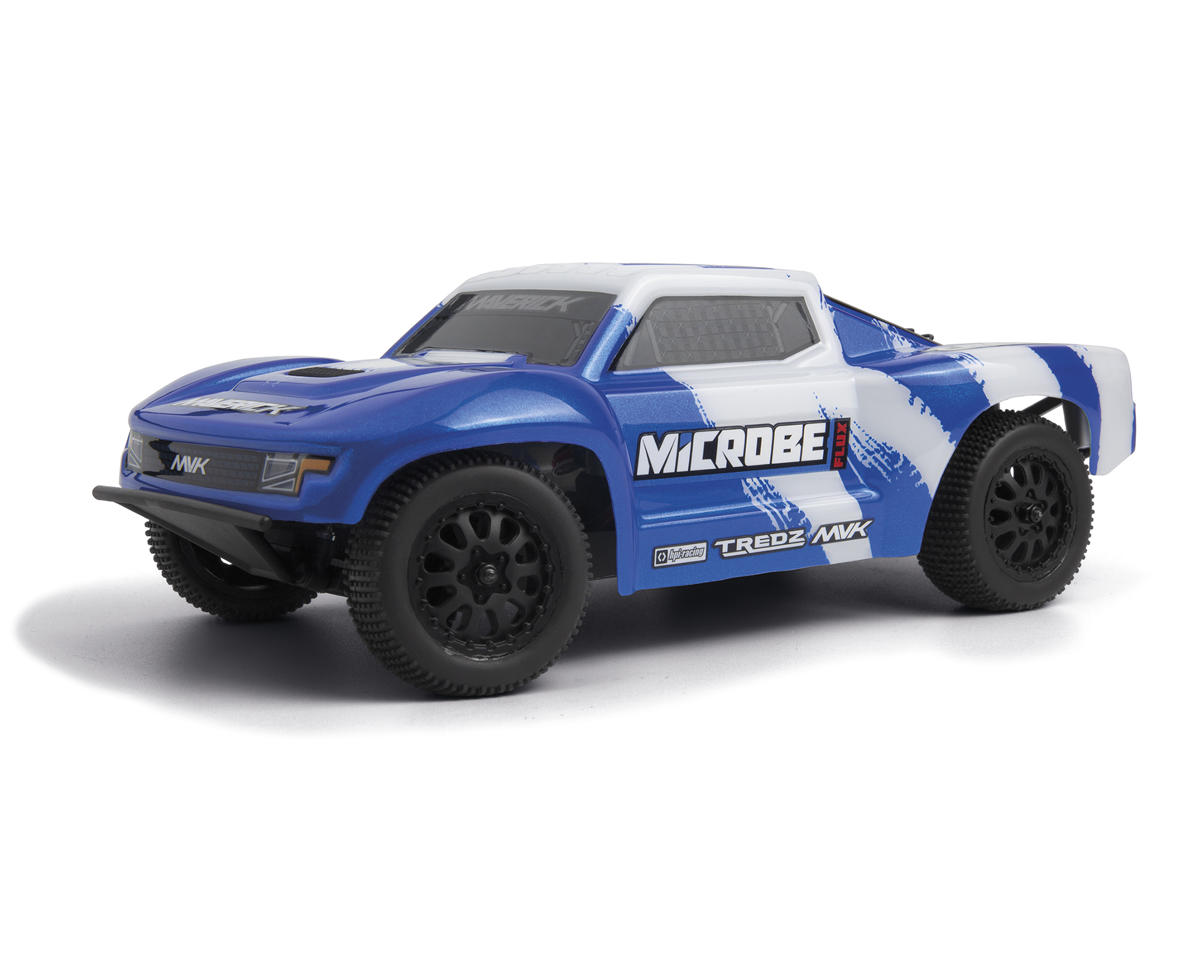

Maverick Microbe SC Flux
1/24 scale · short course truck · 151508
- Top speed
- 23mphstock gearing
- Speed set
- 27mphincluded in the box
- Final drive
- 12.75:1
- Tire
- 42.5mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 12TStock | Stock |
| Spur | 45TStock | Stock |
| Transmission & axle | 3.40:1Stock | Stock |
| Spur ÷ pinion | 3.750:1Calculated | Calculated |
| Final drive | 12.75:1Stock | Stock |
| Speed gearing, in the box | 13T / 42Tpinion / spurStock | Stock |
| Final drive, speed gearing | 10.98:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 42.5mmStock | Stock |
| Rollout | 10.5mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | 8000KVStock | Stock |
| Motor shaft | Not published | |
| Battery | Up to 2SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed, stock gearing | 23.1mph on 2SCalculated | Calculated |
| Theoretical top speed, speed gearing | 26.8mph on 2SCalculated | Calculated |
| Motor speed | 59,200rpm, no loadCalculated | Calculated |
| Vehicle | ||
| Part number | 151508 | |
| Scale | 1/24 | |
| Class | Short course truck | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it. The top speed is kinematic: an ideal no-load RPM with no slip and no loss under load, so a real car is slower. Speed gearing is the taller set that ships in the box but is not fitted; swapping it in is the owner's job, and the car runs hotter on it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 12T | Mod 0.5 | Not published | 150878 (opens in a new tab) |
| Spur | 45T | Mod 0.5 | Not applicable | 150878 (opens in a new tab) |
| In the box, not fitted | ||||
| Speed pinion | 13T | Not published | Not published | Not published |
| Speed spur | 42T | Not published | Not applicable | Not published |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Gearing in the box is supplied, not fitted: the fitted set is what the figures and the calculators use. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
The brushless Microbe SC.
- The kit page prints 'Standard gearing 12T/45T', 'Internal transmission ratio: 3.4', an SC outer tire diameter of 42.5mm, and optional 11T and 13T pinions and a 42T spur included in the box.
- The total is worked out as 45/12 x 3.4 = 12.75; 13T on 42T gives 10.98.
- The motor is the FLX28 1626 8000KV, which the page calls '2S capable', on the FLX28-2S25 ESC, so 2S is stored.
Documents
- Exploded viewTechnical guide with parts list and exploded views (Maverick PDF) (opens in a new tab)Parts list p. 2; gearbox assembly section 3-5, PDF p. 9
- Parts listTechnical guide parts list (Maverick PDF) (opens in a new tab)Parts #, p. 2
- ManualQuick start guide (Maverick PDF) (opens in a new tab)
Sources
- 151508hpiracing.com (opens in a new tab)
- 150878hpiracing.com (opens in a new tab)
- Manual (PDF)hpiracing.com (opens in a new tab)
- 150876hpiracing.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
