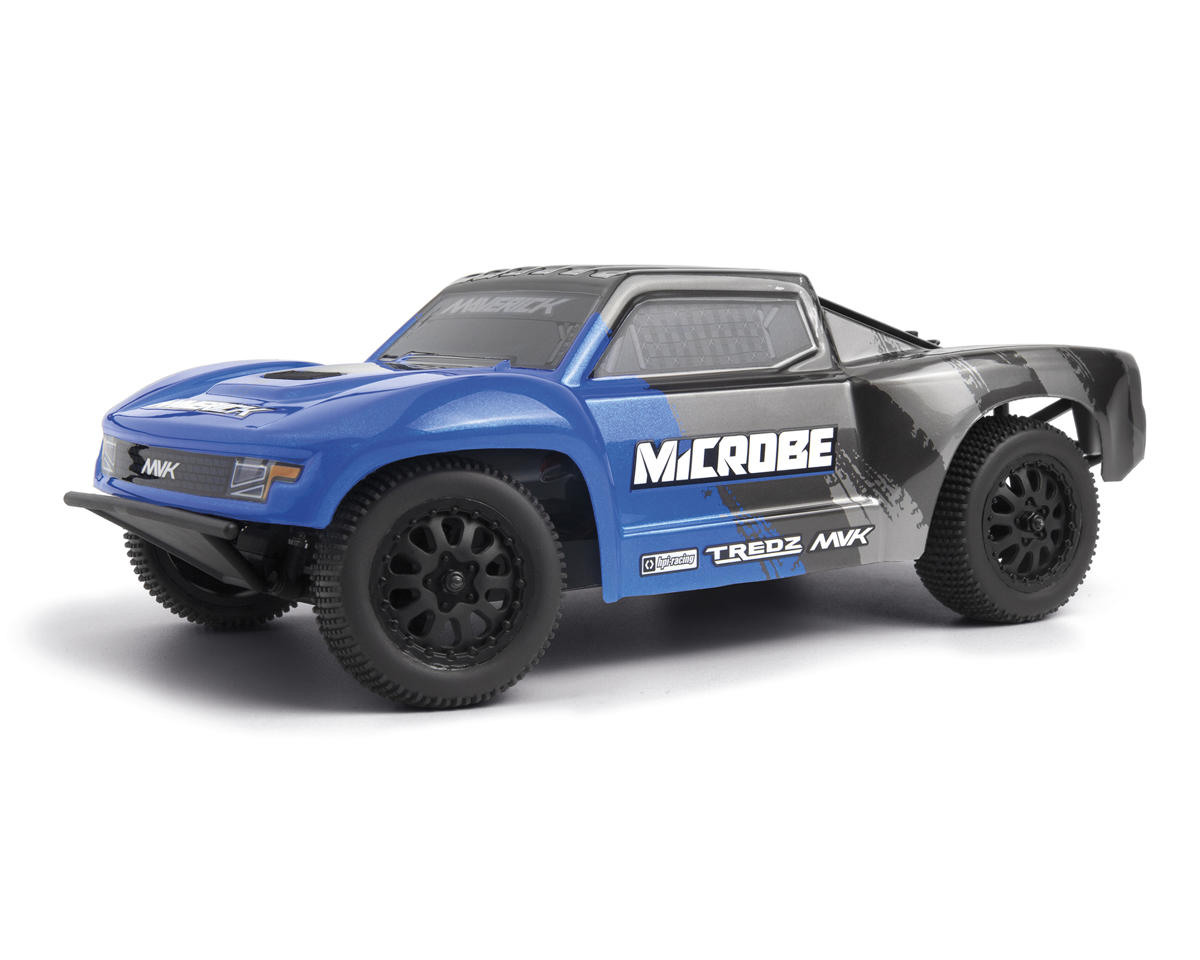

VehiclesMaverick Microbe SC
Maverick Microbe SC
1/24 scale · short course truck · 151500
- Final drive
- 12.75:1
- Tire
- 42.5mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 12TStock | Stock |
| Spur | 45TStock | Stock |
| Transmission & axle | 3.40:1Stock | Stock |
| Spur ÷ pinion | 3.750:1Calculated | Calculated |
| Final drive | 12.75:1Stock | Stock |
| Speed gearing, in the box | 13T / 42Tpinion / spurStock | Stock |
| Final drive, speed gearing | 10.98:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 42.5mmStock | Stock |
| Rollout | 10.5mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not published | |
| Battery | Not published | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | 151500 | |
| Scale | 1/24 | |
| Class | Short course truck | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 12T | Mod 0.5 | Not published | 150831 (opens in a new tab) |
| Spur | 45T | Mod 0.5 | Not applicable | 150831 (opens in a new tab) |
| In the box, not fitted | ||||
| Speed pinion | 13T | Not published | Not published | Not published |
| Speed spur | 42T | Not published | Not applicable | Not published |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Gearing in the box is supplied, not fitted: the fitted set is what the figures and the calculators use. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
The short course version of the Microbe on a longer chassis.
- The kit page prints 'Standard gearing 12T/45T', 'Internal transmission ratio: 3.4', an SC outer tire diameter of 42.5mm, and optional 11T and 13T pinions and a 42T spur included in the box.
- The total is worked out as 45/12 x 3.4 = 12.75; 13T on 42T gives 10.98.
- The MS-050 37T motor is brushed and has no KV rating.
- No rating is published for the 2-in-1 ESC, so the cell count is left blank.
Documents
- Exploded viewTechnical guide with parts list and exploded views (Maverick PDF) (opens in a new tab)Parts list p. 2; gearbox assembly section 3-5, PDF p. 9
- Parts listTechnical guide parts list (Maverick PDF) (opens in a new tab)Parts #, p. 2
- ManualQuick start guide (Maverick PDF) (opens in a new tab)
Sources
- 151500hpiracing.com (opens in a new tab)
- 150831hpiracing.com (opens in a new tab)
- Manual (PDF)hpiracing.com (opens in a new tab)
- 151528hpiracing.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
