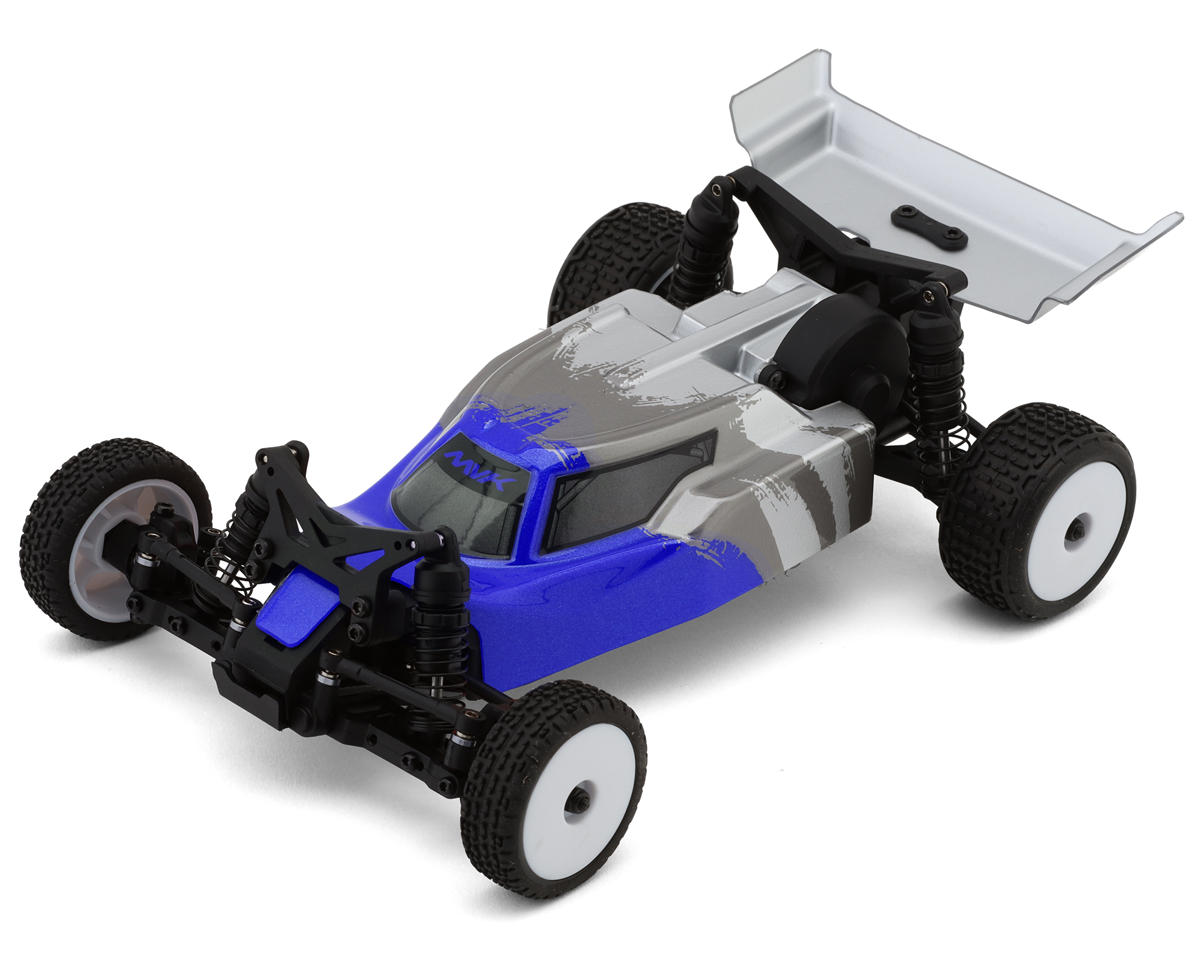

VehiclesMaverick Microbe
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 12TStock | Stock |
| Spur | 45TStock | Stock |
| Transmission & axle | 3.40:1Stock | Stock |
| Spur ÷ pinion | 3.750:1Calculated | Calculated |
| Final drive | 12.75:1Stock | Stock |
| Speed gearing, in the box | 13T / 42Tpinion / spurStock | Stock |
| Final drive, speed gearing | 10.98:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 35mmStock | Stock |
| Rollout | 8.6mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not published | |
| Battery | Not published | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | 150800 | |
| Scale | 1/24 | |
| Class | Buggy | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 12T | Not published | Not published | Not published |
| Spur | 45T | Mod 0.5 | Not applicable | 150831 (opens in a new tab) |
| In the box, not fitted | ||||
| Speed pinion | 13T | Not published | Not published | Not published |
| Speed spur | 42T | Not published | Not applicable | Not published |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Gearing in the box is supplied, not fitted: the fitted set is what the figures and the calculators use. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
A 1/24 rear-drive buggy.
- The kit page's technical specification prints 'Standard gearing 12T/45T', 'Internal transmission ratio: 3.4', a 35mm rear and 33mm front outer tire diameter, and optional 11T and 13T pinions and a 42T spur included in the box.
- The total is worked out as 45/12 x 3.4 = 12.75; the tallest boxed combination, 13T on 42T, gives 10.98.
- The rear tire is used, as the rear wheels are driven.
- The MS-030 63T motor is brushed and has no KV rating.
- It ships with a 7.4V 350mAh LiPo, but no rating is published for the 2-in-1 ESC, so the cell count is left blank.
Documents
- Exploded viewTechnical guide with parts list and exploded views (Maverick PDF) (opens in a new tab)Parts list p. 2; gearbox assembly section 3-11, PDF p. 11
- Parts listTechnical guide parts list (Maverick PDF) (opens in a new tab)Parts #, p. 2
- ManualQuick start guide (Maverick PDF) (opens in a new tab)
Sources
- 150800hpiracing.com (opens in a new tab)
- Manual (PDF)hpiracing.com (opens in a new tab)
- 150843hpiracing.com (opens in a new tab)
- 150831hpiracing.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
