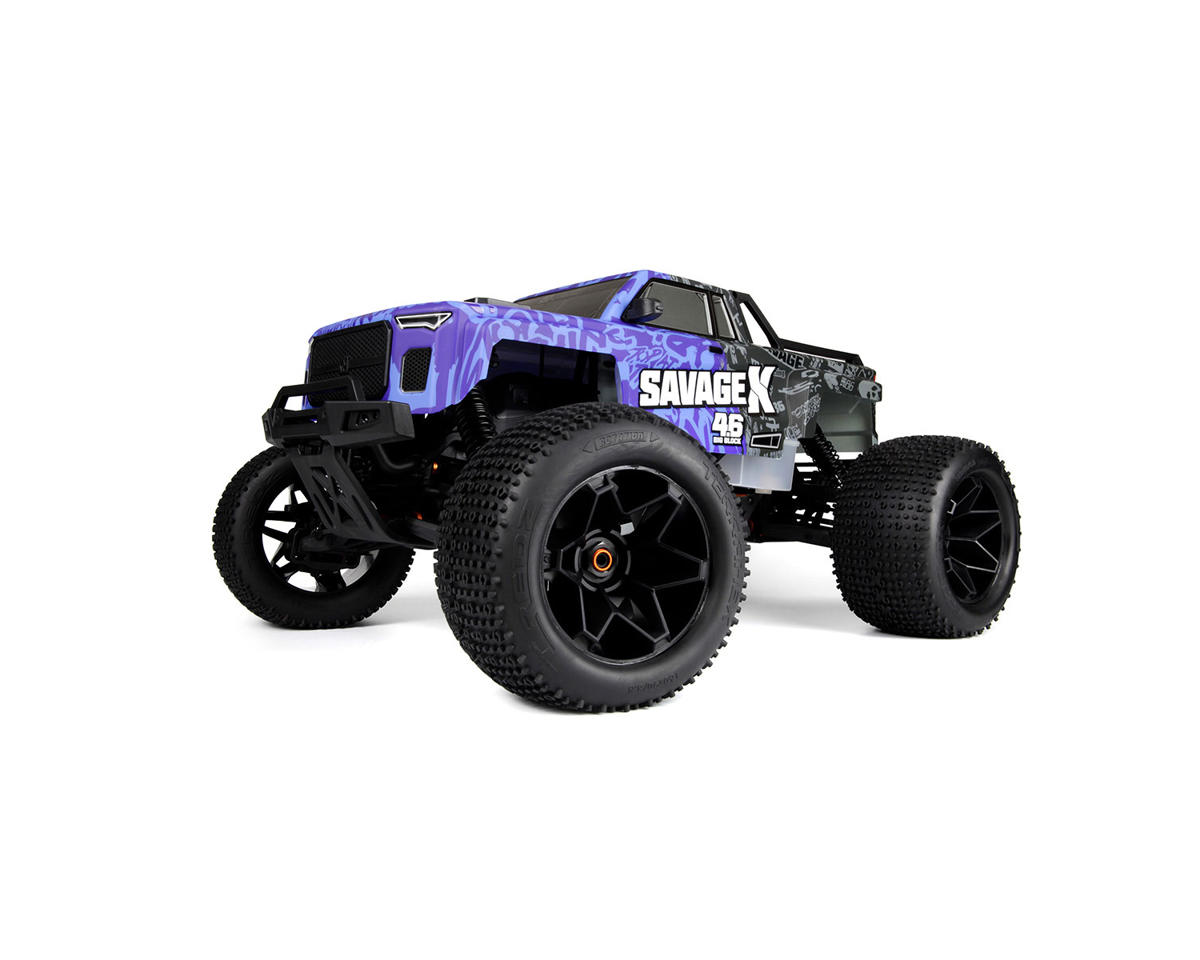

VehiclesHPI Racing Savage X 4.6 GT-6
HPI Racing Savage X 4.6 GT-6
1/8 scale · monster truck · 160585
- Final drive
- 13.69:1
- Tire
- 160mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 17TStock | Stock |
| Spur | 47TStock | Stock |
| Transmission & axle | 4.95:1Derived | Derived |
| Spur ÷ pinion | 2.765:1Calculated | Calculated |
| Final drive | 13.69:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 160mmStock | Stock |
| Rollout | 36.7mm per motor turnCalculated | Calculated |
| Wheel hex | 17 mmStock | Stock |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Advertised top speed | 45mphMaker's claim | Maker's claim |
| Chassis | ||
| Length | 534 mm21 inStock | Stock |
| Width | 445 mm17.5 inStock | Stock |
| Height | 255 mm10 inStock | Stock |
| Shock oil, front | 30 wtStock | Stock |
| Shock oil, rear | 30 wtStock | Stock |
| Vehicle | ||
| Part number | 160585 | |
| Scale | 1/8 | |
| Class | Monster truck | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 17T | Mod 1 | Not applicable | 77107 (opens in a new tab) |
| Spur | 47T | Mod 1 | Not applicable | 76937 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
Nitro, Nitro Star F4.6 V2 engine, with the Savage two-speed transmission.
- HPI prints no gear ratio, so the figures shown here are worked out from the tooth counts in the manual's parts list (p. 47), with the gear pairs taken from the transmission exploded view (p. 49): 17T clutch bell (77107) to 47T spur (76937); first gear 18T/44T, second 23T/39T; a 32T drive gear (86084) to the 29T gear on the output shaft (86098); then 29T/9T diff bevel gears (105551).
- Second (high) gear gives 13.69:1, the figure shown here; first gear is 19.73:1.
- The manual's two-speed setup page (p. 35) labels the drive gear 34T, but the parts list, the exploded view and the part page all say 32T, so 32T is used.
- HPI quotes speeds over 45 mph.
- Tires are Tredz TerraHex HD, 160x90mm (160584).
Documents
- ManualSavage X 4.6 instruction manual (HPI PDF) (opens in a new tab)Spur gear p. 30; 2-speed setup p. 35
- Parts listSavage X 4.6 parts list (HPI PDF) (opens in a new tab)p. 47
- Exploded viewSavage X 4.6 exploded view (HPI PDF) (opens in a new tab)
- Exploded viewTransmission exploded view, Savage X 4.6 manual (HPI PDF) (opens in a new tab)p. 49
Sources
- 160585hpiracing.com (opens in a new tab)
- stdhpiracing.com (opens in a new tab)
- Manual (PDF)hpiracing.com (opens in a new tab)
- 77107hpiracing.com (opens in a new tab)
- 76937hpiracing.com (opens in a new tab)
- 86084hpiracing.com (opens in a new tab)
- 105551hpiracing.com (opens in a new tab)
- 160584hpiracing.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
