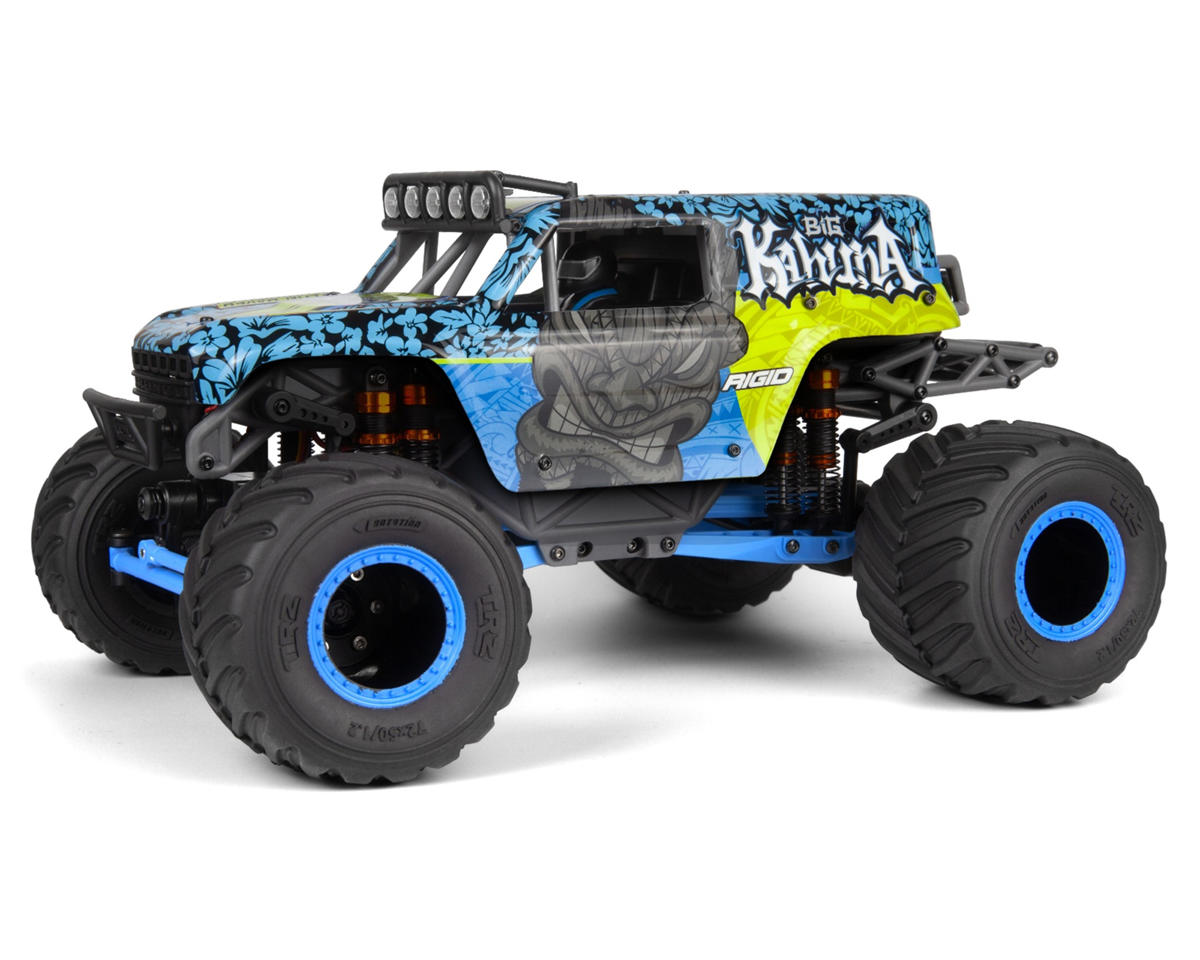

HPI Racing Mini King Flux Big Kahuna Ford Bronco 4400
1/18 scale · monster truck · 160807
- Tire
- 72mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 10TStock | Stock |
| Spur | Not published | |
| Transmission & axle | Not published | |
| Final drive | Not published | |
| Wheels & tires | ||
| Tire diameter | 72mmStock | Stock |
| Wheel hex | 7 mmStock | Stock |
| Power | ||
| Motor | 4500KVStock | Stock |
| Motor shaft | 2.3 mmStock | Stock |
| Battery | Up to 3SLiPoStock | Stock |
| Stock motor | FLX16-2435-4500KV Brushless MotorStock | Stock |
| Battery connector | XT-30Stock | Stock |
| Performance | ||
| Theoretical top speed | Not published | |
| Chassis | ||
| Length | 275 mm10.8 inStock | Stock |
| Width | 215 mm8.5 inStock | Stock |
| Height | 125 mm4.9 inStock | Stock |
| Wheelbase | 178 mm7 inStock | Stock |
| Shock oil, front | 100 cStStock | Stock |
| Shock oil, rear | 100 cStStock | Stock |
| Vehicle | ||
| Part number | 160807 | |
| Scale | 1/18 | |
| Class | Monster truck | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 10T | Mod 0.5 | 2.3 mm | 161249 (opens in a new tab) |
| Spur | Not published | Not recorded | Not applicable | Not recorded |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft (2.3 mm on the stock motor). Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
HPI's standard parts list and the technical guide name a 10T 0.5M pinion (161249) on the FLX16-2435 4500KV motor, whose shaft is 2.3mm.
- The gear it drives is part of the HD machined transmission gear set (161214), whose tooth counts are not published, so the spur, the transmission and axle ratio and the total are left blank.
- The axle bevel set is listed as 44T/18T (161128).
- Tires are Tredz TRZ 72x50mm (160880).
- The ESC is named FLX16-3S30-WP on the product page, the parts list and its own part page, but FLX18-3S30-WP in its manual; the part page rates it for 2-3S LiPo.
Documents
- ManualMini King user guide (HPI PDF) (opens in a new tab)Center gearbox, pp. 14-15
- Parts listMini King technical guide, parts list (HPI PDF) (opens in a new tab)p. 3
Sources
- 160807hpiracing.com (opens in a new tab)
- stdhpiracing.com (opens in a new tab)
- Manual (PDF)hpiracing.com (opens in a new tab)
- 161249hpiracing.com (opens in a new tab)
- 161214hpiracing.com (opens in a new tab)
- 161128hpiracing.com (opens in a new tab)
- 160880hpiracing.com (opens in a new tab)
- 160899hpiracing.com (opens in a new tab)
- 160898hpiracing.com (opens in a new tab)
- 160896hpiracing.com (opens in a new tab)
- Manual (PDF)hpiracing.com (opens in a new tab)
- Manual (PDF)hpiracing.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
