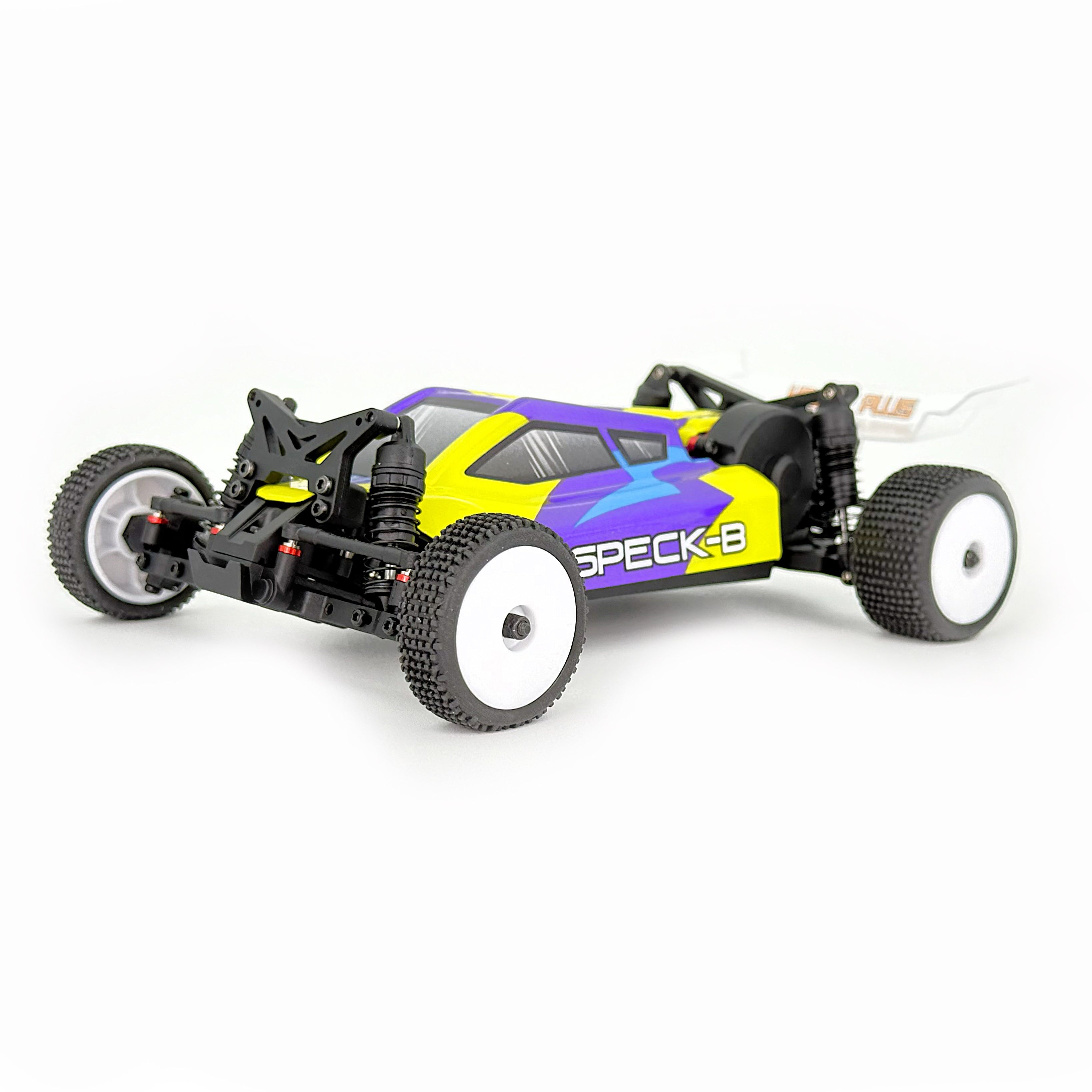

VehiclesHobby Plus Speck-B Brushless
Hobby Plus Speck-B Brushless
1/24 scale · buggy · HBP2410260
- Final drive
- 12.85:1
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 12TStock | Stock |
| Spur | 45TStock | Stock |
| Transmission & axle | 3.43:1Derived | Derived |
| Final drive | 12.85:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not published | |
| Power | ||
| Motor | 8000KVStock | Stock |
| Motor shaft | Not published | |
| Battery | Up to 2SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | Not published | |
| Vehicle | ||
| Part number | HBP2410260 | |
| Scale | 1/24 | |
| Class | Buggy | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 12T | Mod 0.5 | Not published | 250148 (opens in a new tab) |
| Spur | 45T | Mod 0.5 | Not applicable | 250121 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
Hobby Plus's page for the brushless Speck spur, idler and pinion set (250148), which sits in the Speck B Brushless replacement parts list, prints a standard ratio of a 12T 0.5M pinion on a 45T 0.5M spur for a 12.85:1 final drive.
- The reduction after the spur is worked out from that chart: 12.85 x 12 / 45 = 3.43.
- The motor is a Hobbywing 1626 8000kv 2-pole sensorless unit and the ESC a Hobbywing Mini 28, rated 2S maximum on its own parts page (250157) and in the manual.
- The page lists the wheels as 32.8mm front and 34.5mm rear outer diameter, but those are wheel figures and no tire diameter is published, so the tire is left blank.
- Colour variants carry MAG and YW suffixes on this base number.
Documents
- ManualInstruction manual, Speck B brushed/brushless (PDF) (opens in a new tab)Reduction gear box p. 20; brushless motor p. 26
- Parts listParts list, Speck B (in the instruction manual PDF) (opens in a new tab)Parts list p. 30-31
- Gearing chartGear ratio chart, Speck brushless (Hobby Plus gear set page 250148) (opens in a new tab)Gear Ratio Chart
Sources
- speck-b-1-24-2wd-buggy-brus…hbplusrc.com (opens in a new tab)
- plastic-main-middle-gear-br…hbplusrc.com (opens in a new tab)
- hb-hw-mini-28-brushless-esc…hbplusrc.com (opens in a new tab)
- Manual (PDF)cdn.shopify.com (opens in a new tab)
- spur-idler-pinion-gear-speckhbplusrc.com (opens in a new tab)
- hb-hw-brushless-motor-1626s…hbplusrc.com (opens in a new tab)
- mini-28-esc-brushless-1626-…hbplusrc.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
