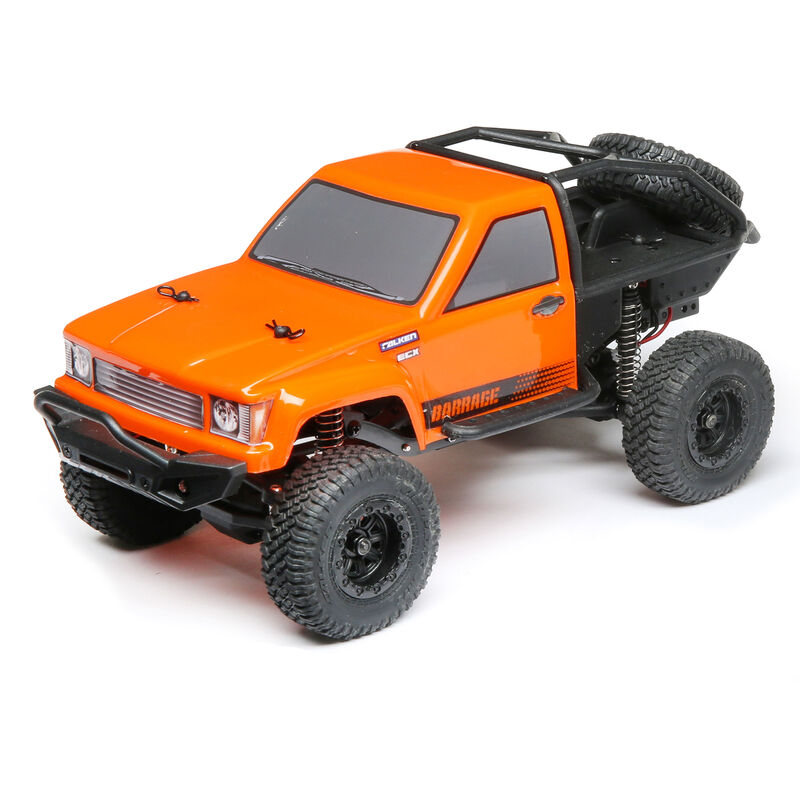

ECX Barrage 1/24 4WD

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.

Gearing parts

Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft (1.5 mm on the stock motor).

How these numbers were settled

Horizon's spec table prints a 12T pinion, a 64T spur and a 1.8in (46mm) outer tire diameter; the later Barrage UV (ECX00019) and its FPV version (ECX00018) print the same gears and tire.

• No after-spur ratio is published, so the ratios are left blank.
• It runs a 4.8V NiMH pack and a 050 brushed motor, which has no KV rating; the cell count is left blank.

Documents

• ManualOwner's manual, multilingual (Horizon PDF) (opens in a new tab)Replacement parts list

Sources

• ECX00017horizonhobby.com (opens in a new tab)
• ECX00019horizonhobby.com (opens in a new tab)
• DYNS1203horizonhobby.com (opens in a new tab)
• Manual (PDF)horizonhobby.com (opens in a new tab)
• ECX202032horizonhobby.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
