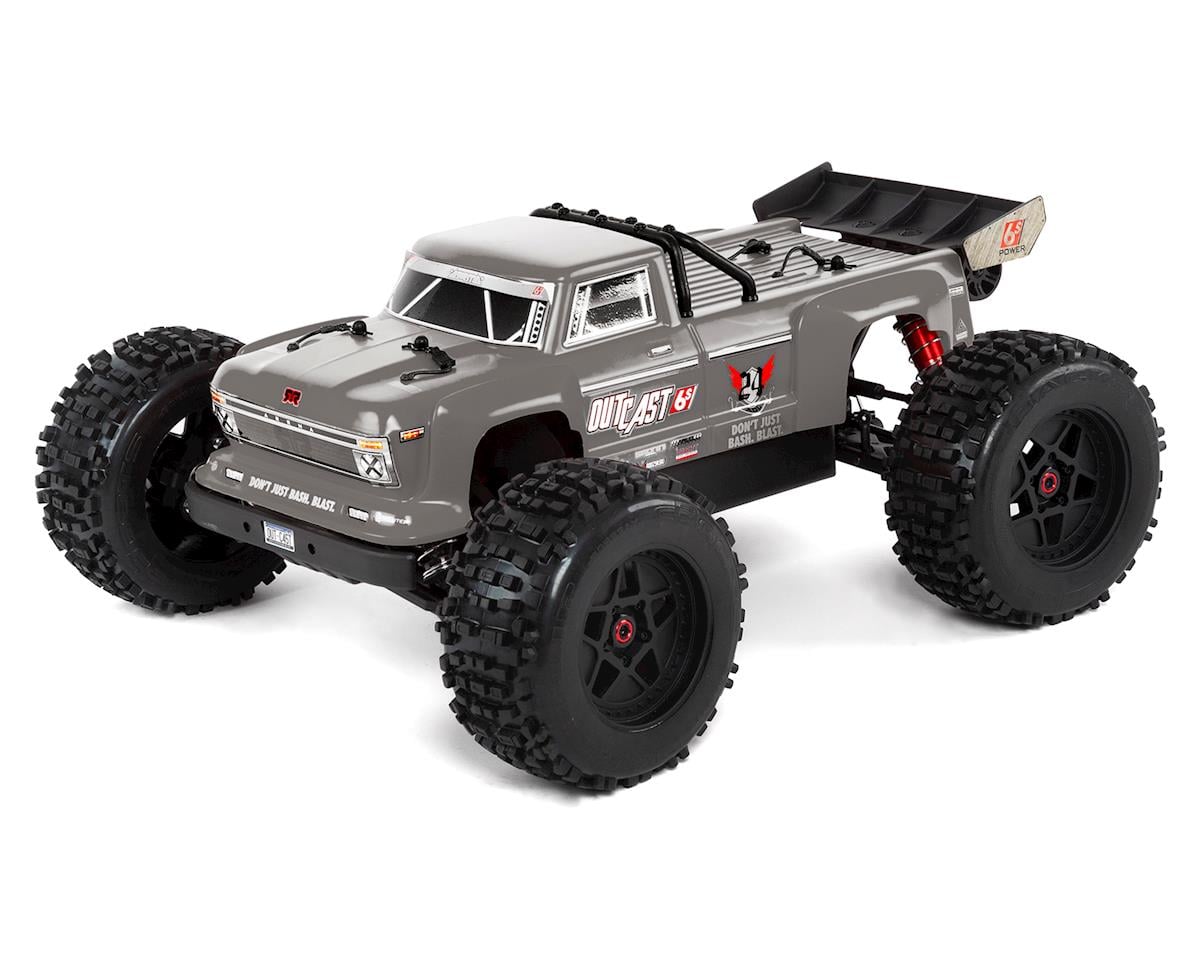

VehiclesArrma Outcast 6S BLX V4
Arrma Outcast 6S BLX V4
1/8 scale · monster truck · ARA106042
- Top speed
- 51mphcalculated
- Final drive
- 17.92:1
- Tire
- 172mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Vehicle | ||
| Class | Monster truck | |
| Drive | 4WD | |
| Power | Brushless | |
| Build | Ready to run | |
| Scale | 1/8 | |
| Part number | ARA106042 | |
| Drivetrain | ||
| Pinion | 12TStock | Stock |
| Spur | 50TStock | Stock |
| Transmission & axle | 4.30:1Stock | Stock |
| Spur ÷ pinion | 4.167:1Calculated | Calculated |
| Final drive | 17.92:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 172mmEstimated | Estimated |
| Rollout | 30.2mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | 2050KVStock | Stock |
| Battery | Up to 6SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | 51.2mph on 6SCalculated | Calculated |
| Motor speed | 45,510rpm, no loadCalculated | Calculated |
| Chassis | ||
| Weight | 5.17 kg (11.4 lb)Stock | Stock |
| Length | 540 mm21.3 inStock | Stock |
| Width | 461 mm18.1 inStock | Stock |
| Height | 230 mm9.1 inStock | Stock |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. The top speed is kinematic: an ideal no-load RPM with no slip and no loss under load, so a real car is slower.
How these numbers were settled
Sold as the V4 generation of the Outcast 6S BLX, the truck that came before the current EXB version.
- A dealer's specification table lists a 12-tooth pinion turning a 50-tooth spur for a 4.3:1 transmission ratio and a 17.92:1 final drive, a 2050Kv brushless motor, and dBoots Back-Flip tires at 172mm.
- HobbyTown lists this version as discontinued and no longer available for purchase.
- A 10th Anniversary Limited Edition of this truck used the same running gear under a special livery.
Sources
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
