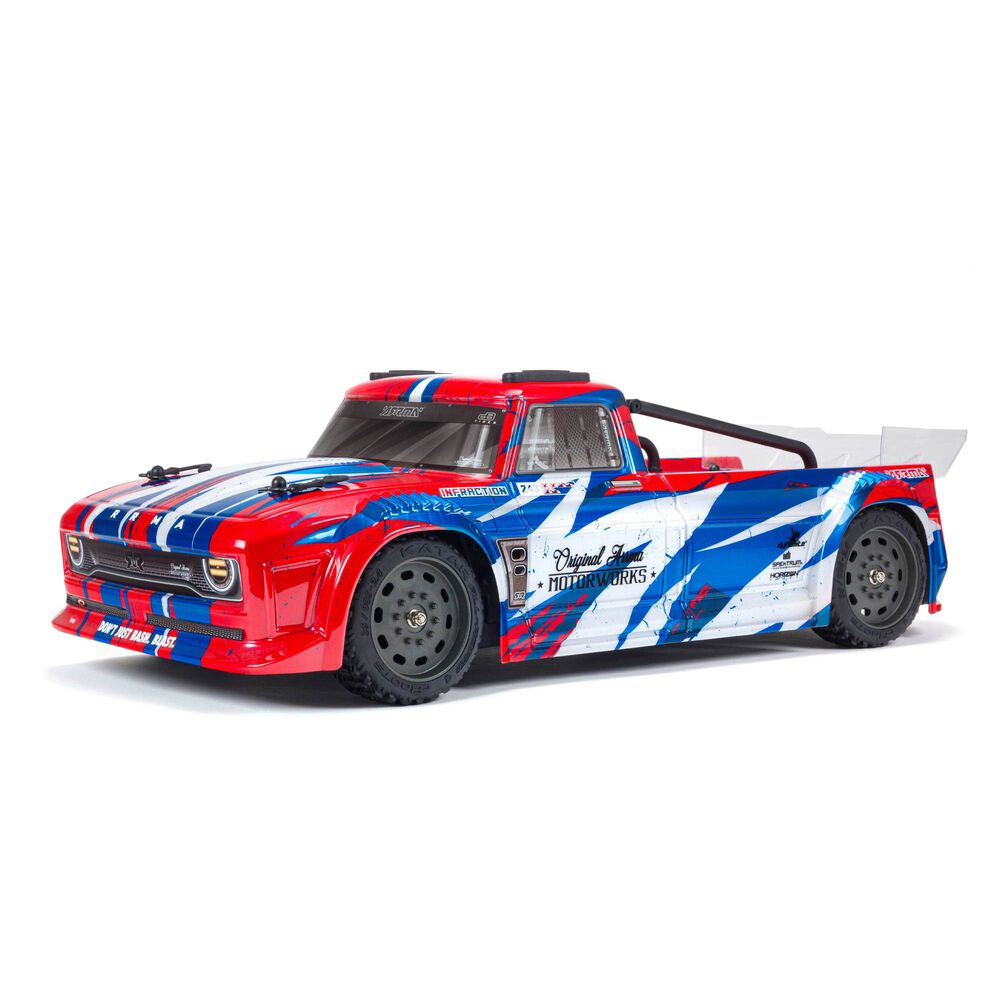

Arrma Infraction 4X4 MEGA
1/8 scale · street and speed-run body · ARA4215V3
- Final drive
- 10.45:1
- Tire
- 85mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 15TStock | Stock |
| Spur | 55TStock | Stock |
| Transmission & axle | 2.85:1Stock | Stock |
| Spur ÷ pinion | 3.667:1Calculated | Calculated |
| Final drive | 10.45:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 85mmStock | Stock |
| Rollout | 25.6mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not published | |
| Battery | Up to 2SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | ARA4215V3 | |
| Scale | 1/8 | |
| Class | Street and speed-run body | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 15T | Mod 0.8 | 3.175 mm | ARA311077 (opens in a new tab) |
| Spur | 55T | Mod 0.8 | Not applicable | ARA311112 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
The brushed Infraction 4X4, with an Arrma MEGA 570 9T brushed motor, sold with a 7-cell NiMH pack and charger.
- Brushed, so there is no KV.
- The ESC is the Arrma MEGA brushed ESC, rated for 2S LiPo.
- Horizon prints Pinion 15T, Spur Gear 55T, Internal Gear Ratio 2.85 and Final Drive 10.45, and 55/15 x 2.85 = 10.45.
- The standard-parts list confirms the 15T and 55T gears and the 37T diff sets with 13T input gears, and names the dBoots Katar 35/085 2.4 tire (ARA550083), whose page prints an overall diameter of 3.35 in (85mm).
Documents
Sources
- ARA4215V3horizonhobby.com (opens in a new tab)
- searchhorizonhobby.com (opens in a new tab)
- ARA550083horizonhobby.com (opens in a new tab)
- ARA311077horizonhobby.com (opens in a new tab)
- interactive-exploded-viewhorizonhobby.com (opens in a new tab)
- ARA311112horizonhobby.com (opens in a new tab)
- ARA390301horizonhobby.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
