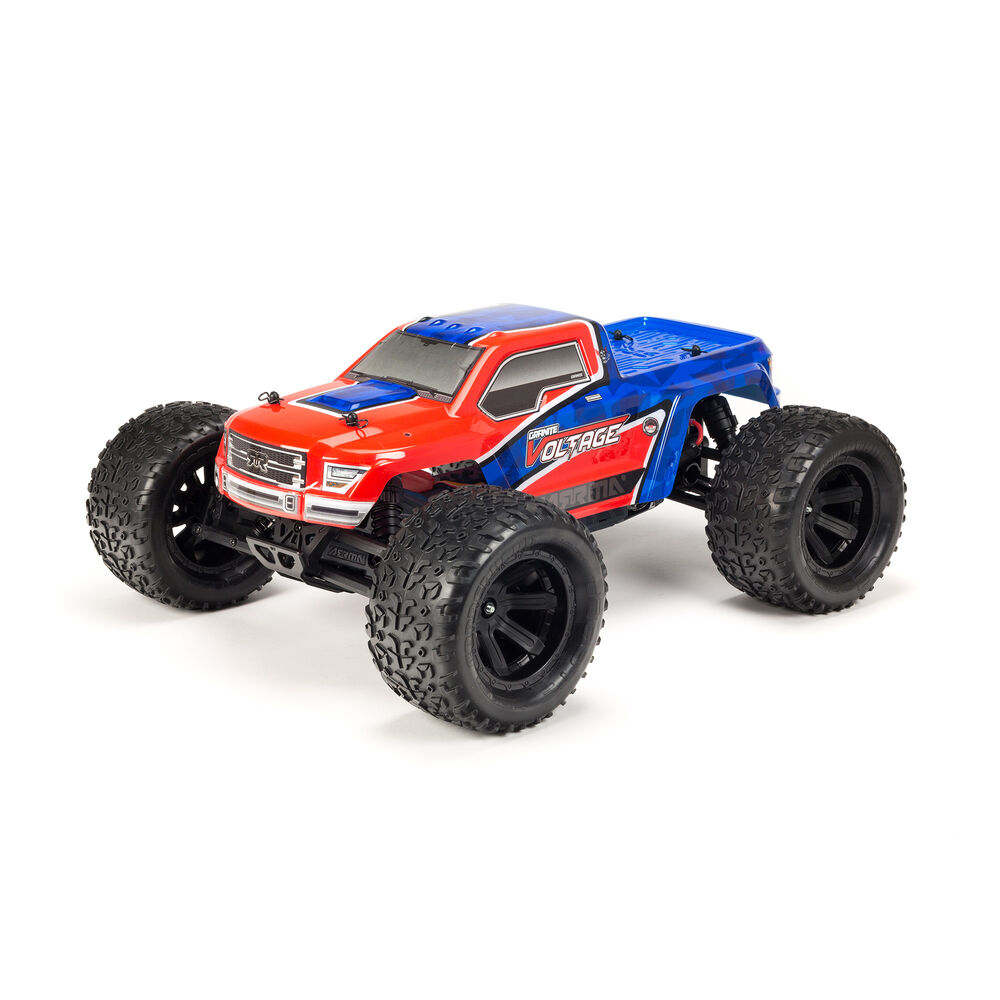

Arrma Granite Voltage 2WD

The kind of vehicle the maker sells it as. It sets what the car is built to do and which cars it is fair to compare it with.

• Monster trucks have tall tires and long suspension travel, built for jumping and rough ground rather than a race track.

Only one axle is driven, the rear on almost every 2WD RC car.

• It is lighter and simpler, and it takes more throttle control on loose ground.

A brushed motor carries current through carbon brushes that rub on the commutator.

• It is cheaper and smooth at low speed.
• The brushes wear and the motor loses power over time.

Ready to run: built at the factory with the electronics installed.

• Some come without a battery or charger; the maker's box contents say which.

The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement.

• A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size.
• This one is 418 mm long.

The maker's product number for this exact version.

• A V2, a new color, or a kit instead of an RTR usually has a different number, and parts can differ between them.
• Check it against your box or receipt before ordering parts.

The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite.

• On this car one tooth changes the gearing by about 6.3%.
• A bigger pinion loads the motor and ESC harder, so check the maker's gearing chart and feel the motor temperature after a run.

The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter.

• Pinion and spur must have the same pitch, or tooth size, to mesh.
• The Gearing parts table below shows this car's pitch and part numbers.

Every reduction after the spur, multiplied together: transmission, differentials and axle gears.

• It is fixed by the design; the gearing you change is the pinion and spur.

Spur teeth divided by pinion teeth: the part of the gearing that a pinion or spur swap changes.

• Here it is 5.813:1.

How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed.

• Among 1/10 monster trucks in the catalog, the middle half run between 11.4:1 and 15.1:1 on stock gearing; this one is 15.1:1.

The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller.

• At high speed tires can balloon and grow, so the real gearing gets taller as the car goes faster.

How far the car moves for one turn of the motor: tire circumference divided by final drive.

• It lets you compare gearing across different tire sizes; more rollout is taller gearing.
• Here it is 27.0 mm.

The hex on the axle that the wheel locks onto and is driven by. A wheel must match the hex size to fit.

• 12 mm is the common size on 1/10 cars, so most 1/10 wheels fit; offset and width still vary.
• The wheel nut is a separate size, so check its thread too before buying nuts.

Brushed motors are rated by can size and turns rather than KV, so there is no KV to show.

The highest LiPo cell count the maker rates the electronics for. Each cell is 3.7 V nominal and 4.2 V fully charged.

• 2S is 7.4 V nominal and 8.4 V off the charger.
• Running more cells than this risks the ESC and motor.
• Many cars also run on fewer cells, only slower.

The motor fitted at the factory, as the maker names it.

• Brushed motors are often named by can size, such as 540 or 550, and by turns: fewer turns is faster.

The electronic speed control. It feeds power from the battery to the motor as you work the throttle, and usually powers the receiver and servo too.

• An amp figure in its name is normally the maker's continuous rating.
• A brushed ESC cannot run a brushless motor.
• Set its low-voltage cutoff for LiPo, so a pack is not run flat.

The plug on the battery lead. Your battery needs the same plug.

• An adapter works, but it adds resistance and another joint that can work loose.

The biggest pack that fits the tray, as the maker states it: length and width, and height where given.

• Compare it with the pack's case size, not its capacity.
• Allow room for the leads.

A brushed motor has no KV rating, so no theoretical top speed is worked out. Compare gearing by rollout instead.

The top speed the maker claims.

• Makers often quote it with optional gearing, a bigger battery or a fully charged pack, so read their wording before comparing it with another car's claim or with the calculated figure.

The vehicle's weight as the maker states it.

• The maker does not say whether it includes a battery.
• More weight takes more power to accelerate and lands harder on the parts; it changes top speed very little.

Overall length as the maker states it, usually with the body fitted.

• Useful for comparing real size, since scale labels are loose.

Overall width as the maker states it, usually with the body fitted.

• A wider car is more stable in corners and harder to roll over.

Overall height as the maker states it, usually with the body fitted.

• Useful when checking it fits a shelf, a bag or a car trunk.

The distance between the front and rear axle centers. A longer wheelbase is steadier at speed and over bumps; a shorter one turns more tightly.
