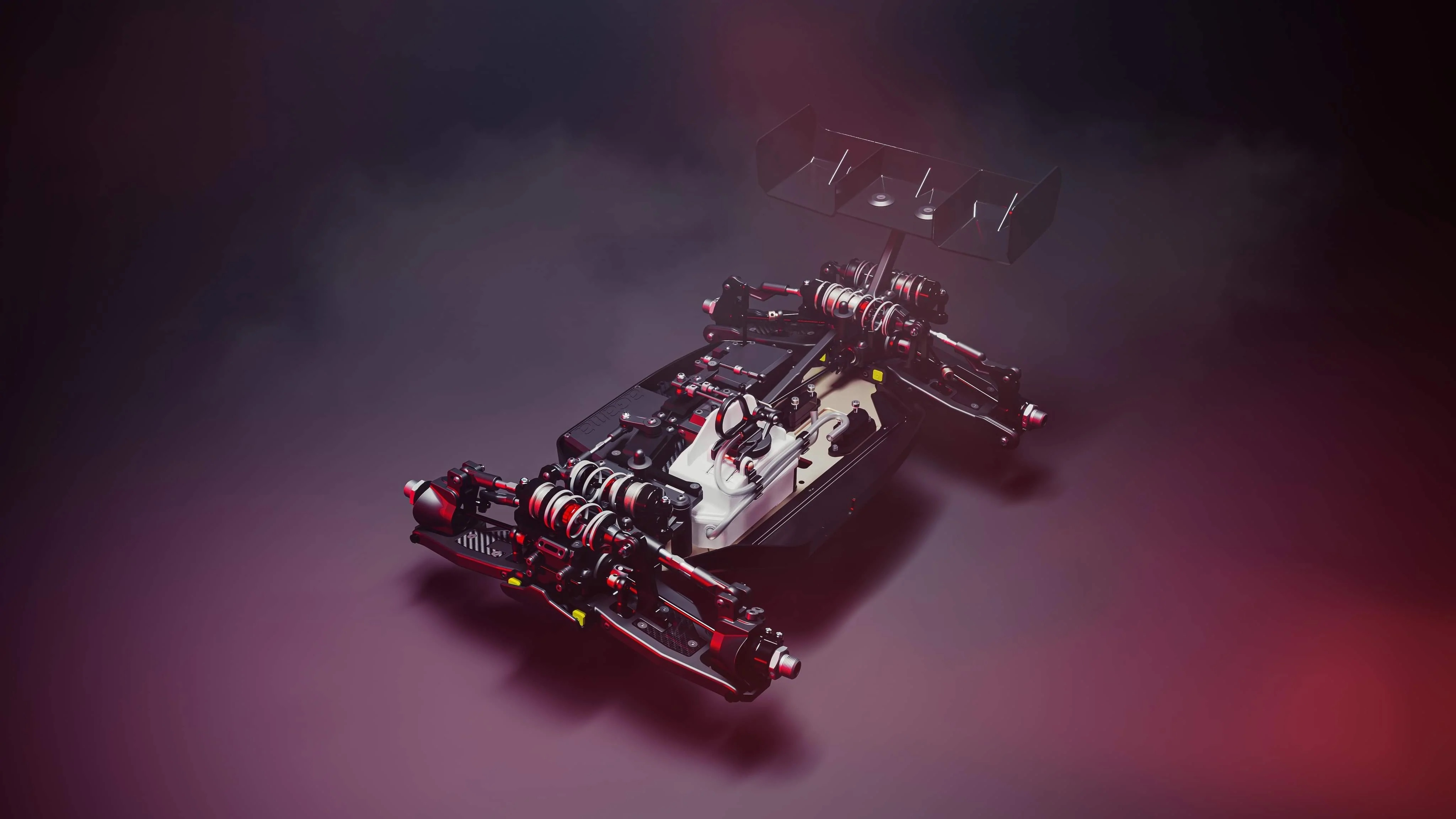

Agama N1

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.

How these numbers were settled

Nitro 1/8 buggy kit; the engine and pipe are not included.

• The manual's clutch bell step shows the 8313 13T clutch bell, its center diff step shows the 8147 47T spur, and its front diff step shows the 48943 43T ring gear.
• The 13T diff pinion is from Nemo Racing, the US distributor, whose 48913 part is listed as the 13T-43T F/R diff pinion for the N1. 43/13 = 3.3077 after the spur, and 47/13 x 3.3077 = 11.96 is worked out, not printed.
• Tires are not included, so the tire size is left blank.

Sources

• Manual (PDF)cdn.shopify.com (opens in a new tab)
• 48913-f-r-diff-pinion-gear-…nemoracing.com (opens in a new tab)
• manual-setup-and-exploded-d…nemoracing.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
