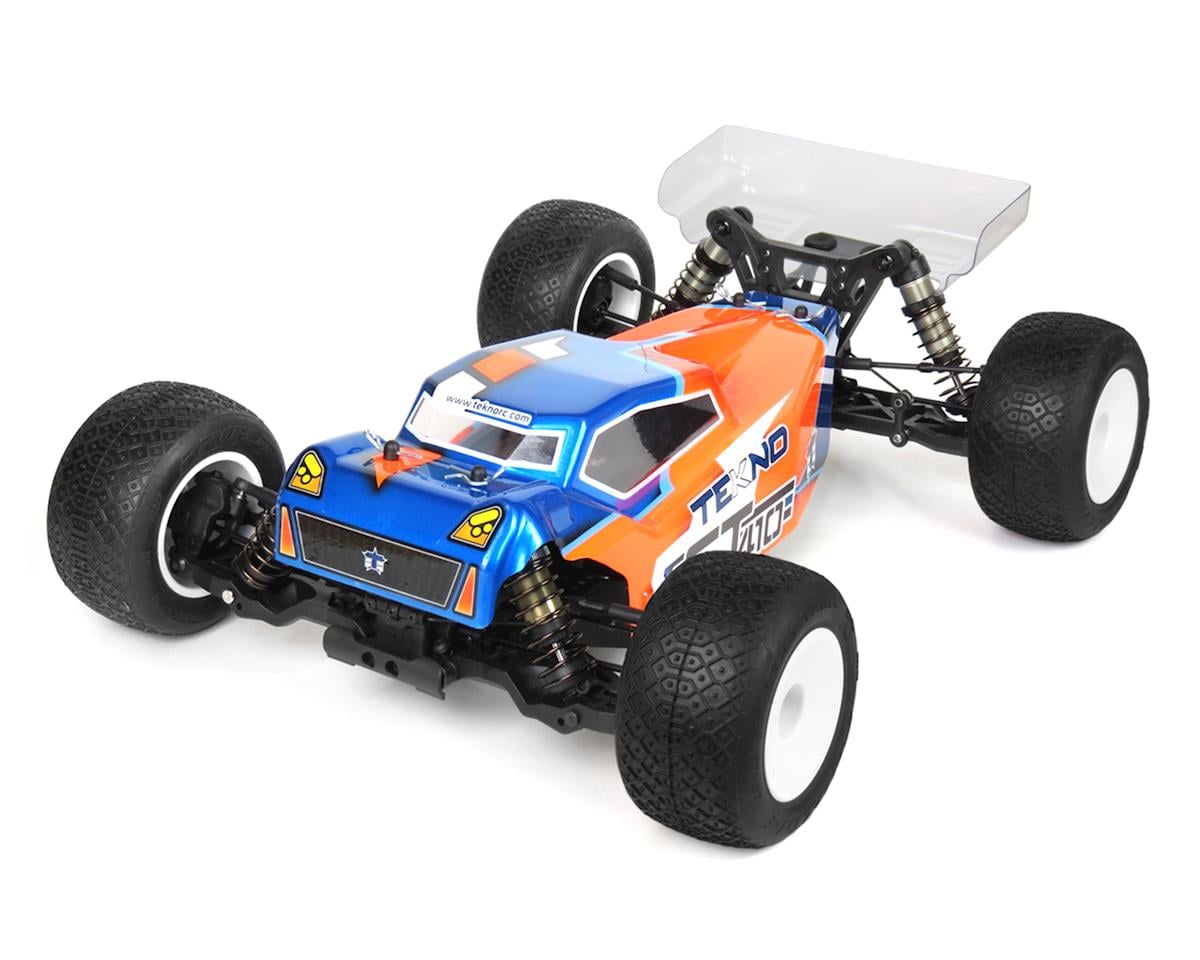

Tekno RC ET410

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.

Gearing parts

Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft.

Buying a new pinion or spur? Check what’s fitted first: Why your RC's gear specs might not add up

How these numbers were settled

Released in 2018, this bare kit ships without a motor, speed control, radio, servo, wheels or tires.

• The parts list names a 53 tooth, 32 pitch spur gear, and the differential runs a 40 tooth ring gear against a 10 tooth pinion gear, a ratio of 4 to 1 after the spur.
• Tekno's suggested motor pinion sizes range from 16 to 19 teeth depending on motor and track, with no single size marked as stock.
• Tekno has since replaced it with the ET410.2.

Sources

• Manual (PDF)teknorc.com (opens in a new tab)
• p786755amainhobbies.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
