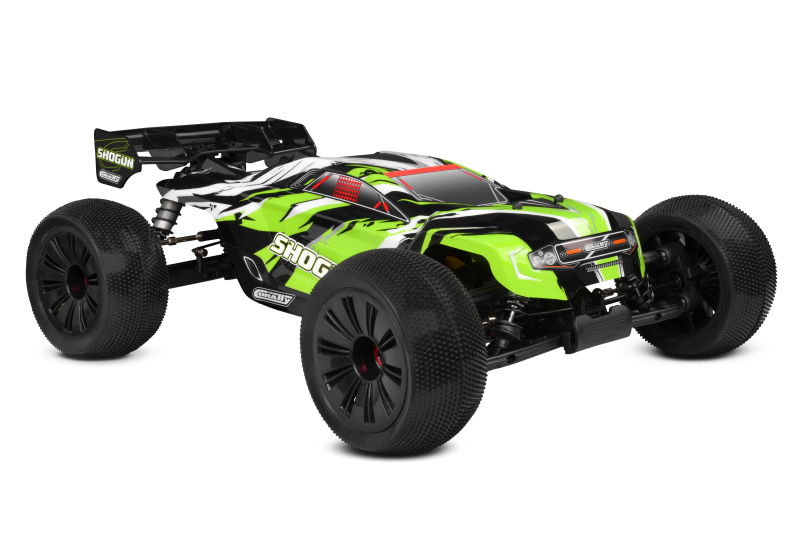

VehiclesTeam Corally Shogun XP 6S
Team Corally Shogun XP 6S
1/8 scale · truggy · C-00175
- Top speed
- 54mphcalculated
- Final drive
- 10.89:1
- Tire
- 111mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Vehicle | ||
| Class | Truggy | |
| Drive | 4WD | |
| Power | Brushless | |
| Build | Ready to run | |
| Scale | 1/8 | |
| Part number | C-00175 | |
| Drivetrain | ||
| Pinion | Not published | |
| Spur | Not published | |
| Transmission & axle | Not published | |
| Final drive | 10.89:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 111mmEstimated | Estimated |
| Rollout | 32.0mm per motor turnCalculated | Calculated |
| Wheel hex | 17 mmStock | Stock |
| Power | ||
| Motor | 2050KVStock | Stock |
| Battery | Up to 6SLiPoStock | Stock |
| Stock motor | Kuron 2050kVStock | Stock |
| Stock ESC | TOROX 185Stock | Stock |
| Battery connector | XT90Stock | Stock |
| Performance | ||
| Theoretical top speed | 54.3mph on 6SCalculated | Calculated |
| Motor speed | 45,510rpm, no loadCalculated | Calculated |
| Chassis | ||
| Weight | 3.25 kg (7.2 lb)without batteryStock | Stock |
| Length | 495 mm19.5 inStock | Stock |
| Width | 308 mm12.1 inStock | Stock |
| Height | 175 mm6.9 inStock | Stock |
| Wheelbase | 327 mm12.9 inStock | Stock |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it. The top speed is kinematic: an ideal no-load RPM with no slip and no loss under load, so a real car is slower.
How these numbers were settled
Team Corally's Shogun XP 6S is a 1/8 scale 4WD truggy fitted with a Kuron 2050kV brushless motor and a TOROX 185 amp electronic speed control rated to 6S.
- A dealer specification sheet lists a 10.89 to 1 gear ratio, a tire measuring 111 by 42 millimeters, a 3250 gram weight without the battery, and an XT90 battery connector.
- Pinion, spur and internal gear figures are not published.
Sources
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
