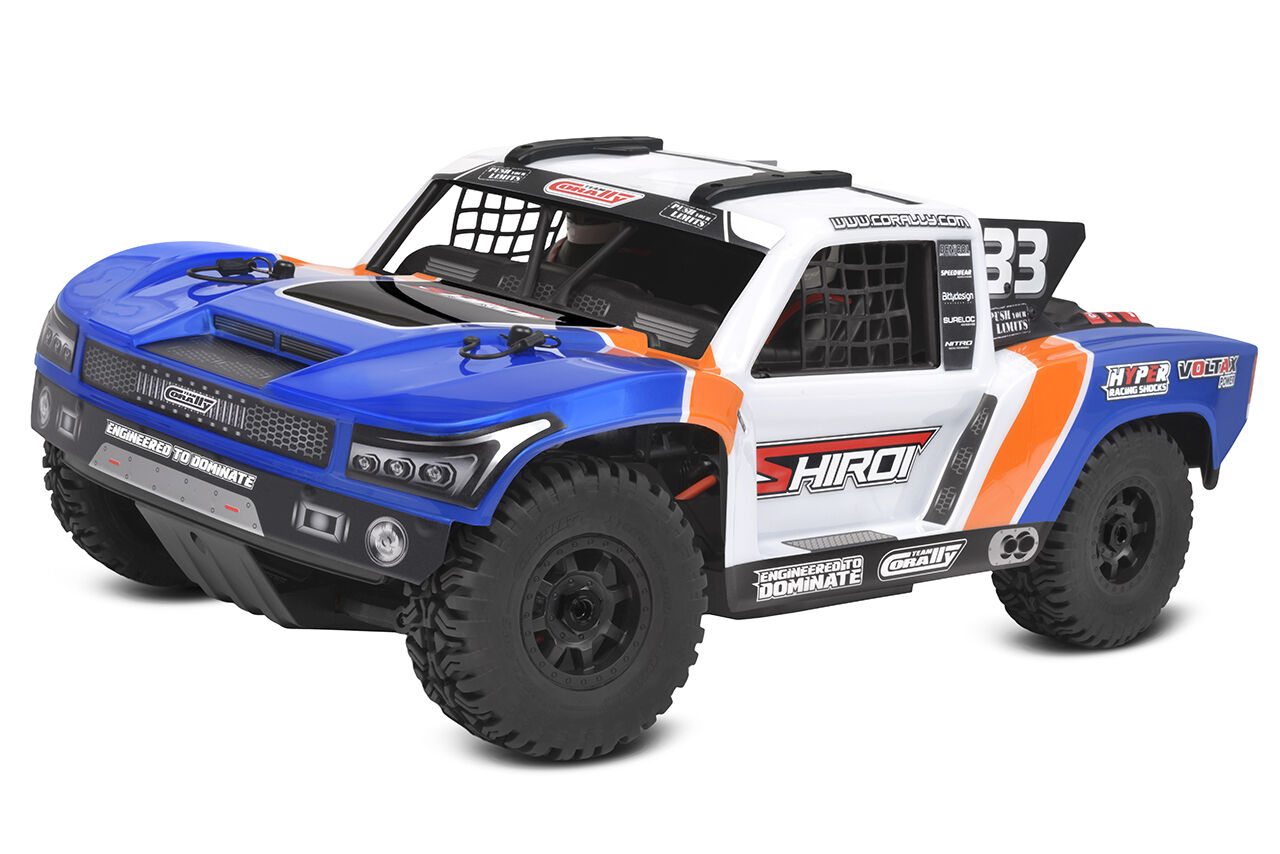

VehiclesTeam Corally Shiroi XP 6S Roller
Team Corally Shiroi XP 6S Roller
1/8 scale · short course truck · C-00478
- Final drive
- 13.23:1
- Tire
- 120mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 13TStock | Stock |
| Spur | 52TStock | Stock |
| Transmission & axle | 3.31:1Stock | Stock |
| Spur ÷ pinion | 4.000:1Calculated | Calculated |
| Final drive | 13.23:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 120mmStock | Stock |
| Rollout | 28.5mm per motor turnCalculated | Calculated |
| Wheel hex | 17 mmStock | Stock |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Battery space | 161 × 51 × 50 mmmax pack, L × W × HStock | Stock |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Chassis | ||
| Width | 315 mm12.4 inStock | Stock |
| Height | 235 mm9.3 inStock | Stock |
| Diff oil, front | 20KStock | Stock |
| Diff oil, center | 100KStock | Stock |
| Diff oil, rear | 10KStock | Stock |
| Vehicle | ||
| Part number | C-00478 | |
| Scale | 1/8 | |
| Class | Short course truck | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 13T | Mod 1 | 5 mm | C-72813 (opens in a new tab) |
| Spur | 52T | Mod 1 | Not applicable | C-00180-607 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
Roller: motor, ESC, servo, radio and battery are not included, so KV and cell count are the buyer's.
- Corally's roller page prints Motor Pinion 13T, Spur Gear 52T, Gear Pitch MOD 1.0 and Overall Drive Ratio 13.23, and the roller manual's speed gear chart (p. 8) gives 13.23 for a 13T pinion on the 52T spur at a 3.31 ratio after the spur.
- The roller manual's exploded view (p. 17) marks the motor, ESC and servo as not included but shows the 13T pinion C-72813 without that mark.
- The roller page prints the internal ratio as 3.32; the manual's 3.31 is shown here (43T bevel gear on a 13T bevel pinion).
- The tire is Corally's printed Tire Dia. of 120mm (48mm wide).
- The roller page prints a 623mm length, 380mm wheelbase and 4650g weight, while the manual and Team Corally USA print 620mm, 388mm and 5250g, so those are left blank.
- The ready-to-run version is C-00278.
Documents
- ManualInstruction manual, Shiroi roller C-00478 (Team Corally USA PDF) (opens in a new tab)
- Gearing chartSpeed gear chart in the Shiroi roller manual (Team Corally USA PDF) (opens in a new tab)Speed gear chart, p. 8
- Exploded viewExploded view, Shiroi (Team Corally USA PDF) (opens in a new tab)
- Parts listParts list, Shiroi (Team Corally USA PDF) (opens in a new tab)
Sources
- team-corally-shiroi-xp-6s-r…corally.com (opens in a new tab)
- Manual (PDF)cdn.shopify.com (opens in a new tab)
- cor00478-b-shiroi-xp6-1-8-6…corallyus.com (opens in a new tab)
- spares-shiroicorally.com (opens in a new tab)
- team-corally-spur-gear-52t-…corally.com (opens in a new tab)
- team-corally-m10-pinion-sho…corally.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
