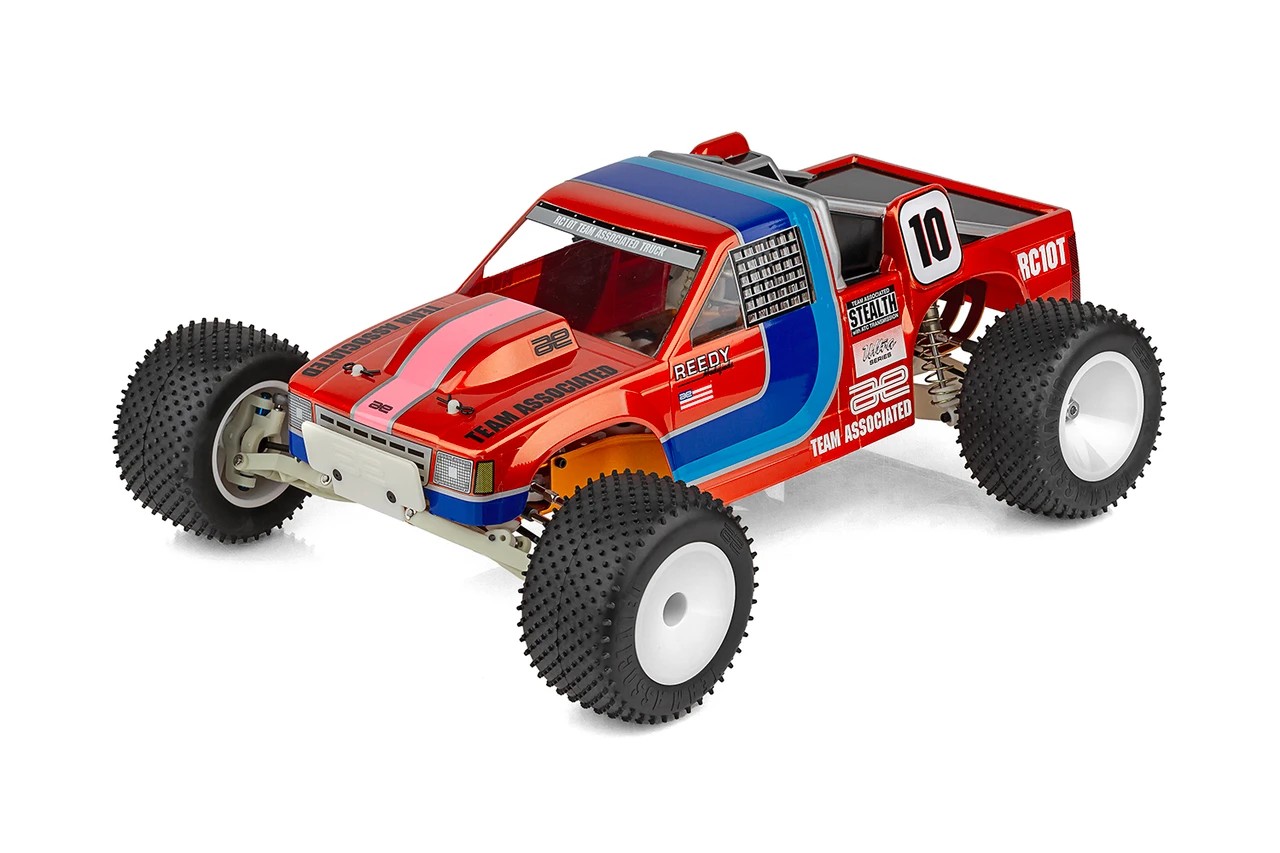

The RC10T 4WD Kit is a 1/10 four-wheel-drive assembly kit with an aluminum tub chassis and independent suspension.1 The gold aluminum tub chassis has adjustable ball differentials at both ends and a center belt.1 Its included tires let the builder complete the rolling chassis before choosing the separately required motor, speed controller and pinion.1 The clear body needs paint, and the radio and steering servo are also supplied by the owner.
Read moreShow less
Check the required-equipment list when selecting the remaining parts for the completed vehicle.1
Pros
Adjustable front and rear ball differentials provide separate settings for each end.1
Cons
Motor, speed controller and radio equipment are purchased separately before the vehicle can run.1
Specifications
Last modified
14 specifications across 5 groups, covering stock setup, dimensions and components.
Spec
Value
Basis
Vehicle
Class
The kind of vehicle the maker sells it as. It sets what the car is built to do and which cars it is fair to compare it with.
A truggy is a 1/8 buggy with wider arms and truck tires: more stable and more forgiving on rough ground.
Drive
All four wheels are driven. That gives more grip under power, especially on loose ground.
The cost is more parts to maintain.
Power
Sold without a motor, so you choose the motor, ESC and battery yourself.
Rows that depend on the motor say so.
Build
A kit you build yourself from parts.
Most kits come without motor, ESC, servo, radio and battery, and many without tires or a painted body.
The manual lists what to add.
Scale
The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement.
A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size.
Part number
The maker's product number for this exact version.
A V2, a new color, or a kit instead of an RTR usually has a different number, and parts can differ between them.
Check it against your box or receipt before ordering parts.
Class
Truggy
Drive
4WD
Power
Motor not included
Build
Kit
Scale
1/10
Part number
6048
Drivetrain
Pinion
The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite.
It depends on the motor you fit, so the maker does not list one.
Spur
The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter.
Pinion and spur must have the same pitch, or tooth size, to mesh.
Transmission & axle
Every reduction after the spur, multiplied together: transmission, differentials and axle gears.
It is fixed by the design; the gearing you change is the pinion and spur.
Final drive
How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed.
Pinion
Not applicable
Spur
Not published
Transmission & axle
2.25:1Stock
Stock
Final drive
Not published
Wheels & tires
Tire diameter
The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller.
Race tires wear down over a day, and a smaller tire gears the car shorter.
Tire diameter
Not published
Power
Motor
Motor KV is the RPM a motor turns per volt with no load.
This vehicle comes without a motor, so there is no stock KV; it depends on the one you fit.
Battery
The highest LiPo cell count the maker rates the electronics for.
This vehicle comes without electronics, so it depends on the ESC and motor you fit.
Motor
Not applicable
Battery
Not applicable
Performance
Theoretical top speed
It needs a motor KV, and this vehicle comes without a motor. Fit one and the calculator works it out from the motor's KV and the gearing.
Theoretical top speed
Not applicable
How to read these figures
Stock is as the vehicle ships.
Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart.
Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit.
Not published means it exists but no source we could find prints it.
