Tamiya M-06 Chassis

Name: Tamiya M-06
Brand: Tamiya

1/10 scale · 2WD chassis · sold as kits

Tamiya's M-06 is a 1/10 rear-motor, rear-wheel-drive chassis for small classic cars, sold under bodies such as the Volkswagen Karmann Ghia and the Lotus Europa Special.

The kits include a 20T pinion for 5.8:1, and Tamiya's table adds 6.44:1 on an 18T and 7.25:1 on a 16T. The rear section mounts in three places for a 210 mm, 225 mm or 239 mm wheelbase. Tamiya does not publish the spur tooth count or the stage after it, so those printed totals are the gearing to work from in the gearing tool.

Final drive: 5.80 to 7.25:1on 20T to 16T
Wheelbase: 210 / 225 / 239mm
Introduced: 2011

Gearing Top speedsourced

The pinion, motor and tires come with each kit: enter yours in the gearing tool.

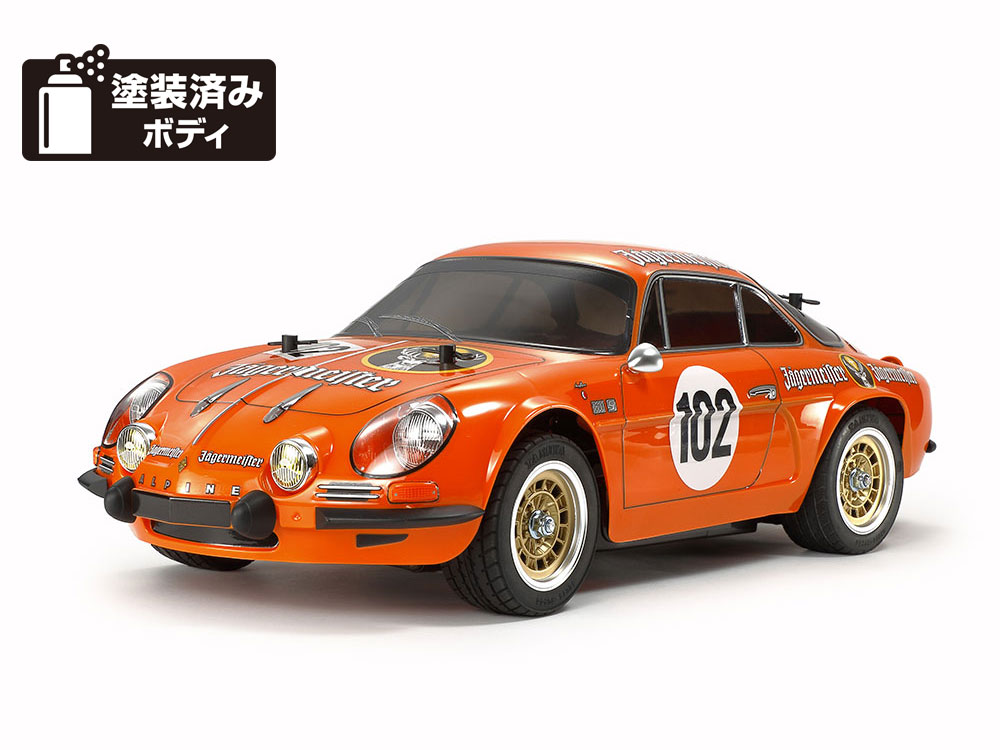

Tamiya M-06 — Photo: Tamiya (opens in a new tab)

Kits on this chassis Built on the M-06

Each kit adds its own body, tires, pinion and motor. The chassis figures below apply to all of them.

Kit	Part no.	Maker page
Alpine A110 Jagermeister 1973	58708	tamiya.comPage (opens in a new tab)
Lotus Europa Special	58698	tamiya.comPage (opens in a new tab)

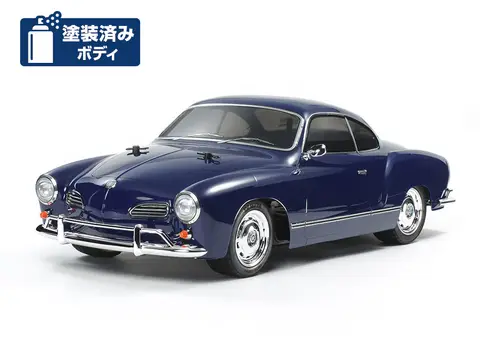

Volkswagen Karmann Ghia	58677	tamiya.comPage (opens in a new tab)
Eunos Roadster	47431	tamiya.comPage (opens in a new tab)

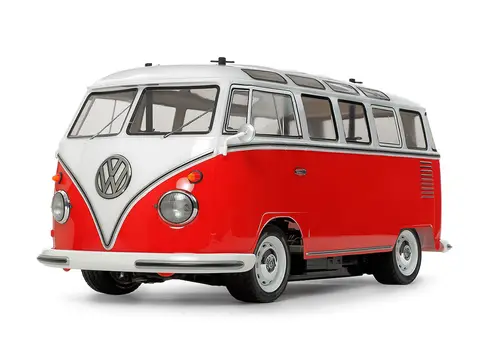

Volkswagen Type 2 (T1)	58668	tamiya.comPage (opens in a new tab)

Specifications

Last modified Sep 29, 2026

Spec	Value	Basis
Vehicle
Class The kind of vehicle the maker sells it as. It sets what the car is built to do and which cars it is fair to compare it with. Touring cars are 4WD on-road cars for asphalt and carpet tracks, often raced in classes with fixed motor and battery rules. The maker does not name a class for this one, so this is the site's judgment from its design. Drive Only one axle is driven, the rear on almost every 2WD RC car. It is lighter and simpler, and it takes more throttle control out of corners. Build A kit you build yourself from parts. Most kits come without motor, ESC, servo, radio and battery, and many without tires or a painted body. The manual lists what to add. Scale The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement. A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size.
Class	Touringour call
Drive	2WD
Build	Kit
Scale	1/10
Drivetrain
Pinion The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite. On a chassis sold as kits, each kit brings its own. Spur The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter. Pinion and spur must have the same pitch, or tooth size, to mesh. Transmission & axle Every reduction after the spur, multiplied together: transmission, differentials and axle gears. It is fixed by the design; the gearing you change is the pinion and spur. Final drive, printed How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed. On-road racers often compare gearing by rollout instead, because tire sizes differ between cars.
Pinion	With each kit
Spur	Not published
Transmission & axle	Not published
Final drive, printed	7.25:1 on 16T, 6.44:1 on 18T, 5.80:1 on 20TMaker's chart	Maker's chart
Wheels & tires
Tire diameter The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller. Race tires wear down over a day, and a smaller tire gears the car shorter.
Tire diameter	With each kit
Power
Motor Motor KV is the RPM a motor turns per volt with no load. This vehicle comes without a motor, so there is no stock KV; it depends on the one you fit. Battery The highest LiPo cell count the maker rates the electronics for. This vehicle comes without electronics, so it depends on the ESC and motor you fit.
Motor	With each kit
Battery	With each kit
Size & weight
Wheelbase The distance between the front and rear axle centers. A longer wheelbase is steadier at speed and over bumps; a shorter one turns more tightly. This chassis can be set to more than one wheelbase.
Wheelbase	210 or 225 or 239mm, 3 settingsStock	Stock

How to read these figures

Stock is as the vehicle ships.
Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart.
Not published means it exists but no source we could find prints it.
With each kit means each kit on this chassis brings its own, so enter yours in the gearing tool.
Maker’s chart is the ratios the maker prints for this chassis with the pinions it names.

How these numbers were settled

Tamiya prints 'ギヤレシオ=5.8:1（キット標準20Tピニオン使用時）' on the Alpine A110 Jagermeister 1973 58708, Lotus Europa Special 58698, Volkswagen Karmann Ghia 58677 and Eunos Roadster 47431, and the M-06 manual fits a 20T pinion (BA20) with the options 16T (7.25:1), 18T (6.44:1) and 20T (5.8:1) (step 7, PDF p. 6). 16 x 7.25 = 20 x 5.8 = 116, and 18 x 6.44 = 115.9.

The spur and counter gear are shown without tooth counts and the gearbox stage is not published, so pinion x ratio is the only gearing fact.
Rear motor, rear-wheel drive.
Tamiya prints '210、225、239mmの3タイプのホイールベースが選べ'; the kit pages print 210mm (A110), 225mm (Europa, Eunos Roadster) and 239mm (Karmann Ghia, Type 2).
