Serpent Spyder SRX2 Gen3 Team Chassis

Name: Serpent Spyder SRX2 Gen3 Team
Brand: Serpent
SKU: 500016

1/10 scale · 2WD buggy chassis kit · 500016

Serpent's Spyder SRX2 Gen3 Team is a two-wheel-drive 1/10 buggy kit for racing, built by you and sold without motor, electronics, pinion or tyres.

The 3-gear transmission reduces 2.43:1 after the 78T spur, so the pinion you fit sets the overall ratio. Serpent sells a range of optional spurs for the car, which leaves room to keep the pinion sensible as motors change. Pick the pinion for your motor and track first, then fine tune with the spur.

Transmission & axle: 2.43:1
Spur: 78T
Introduced: 2023

Gearing Top speedsourced

Sold without a motor, so there is no stock KV: compare gearing by rollout.

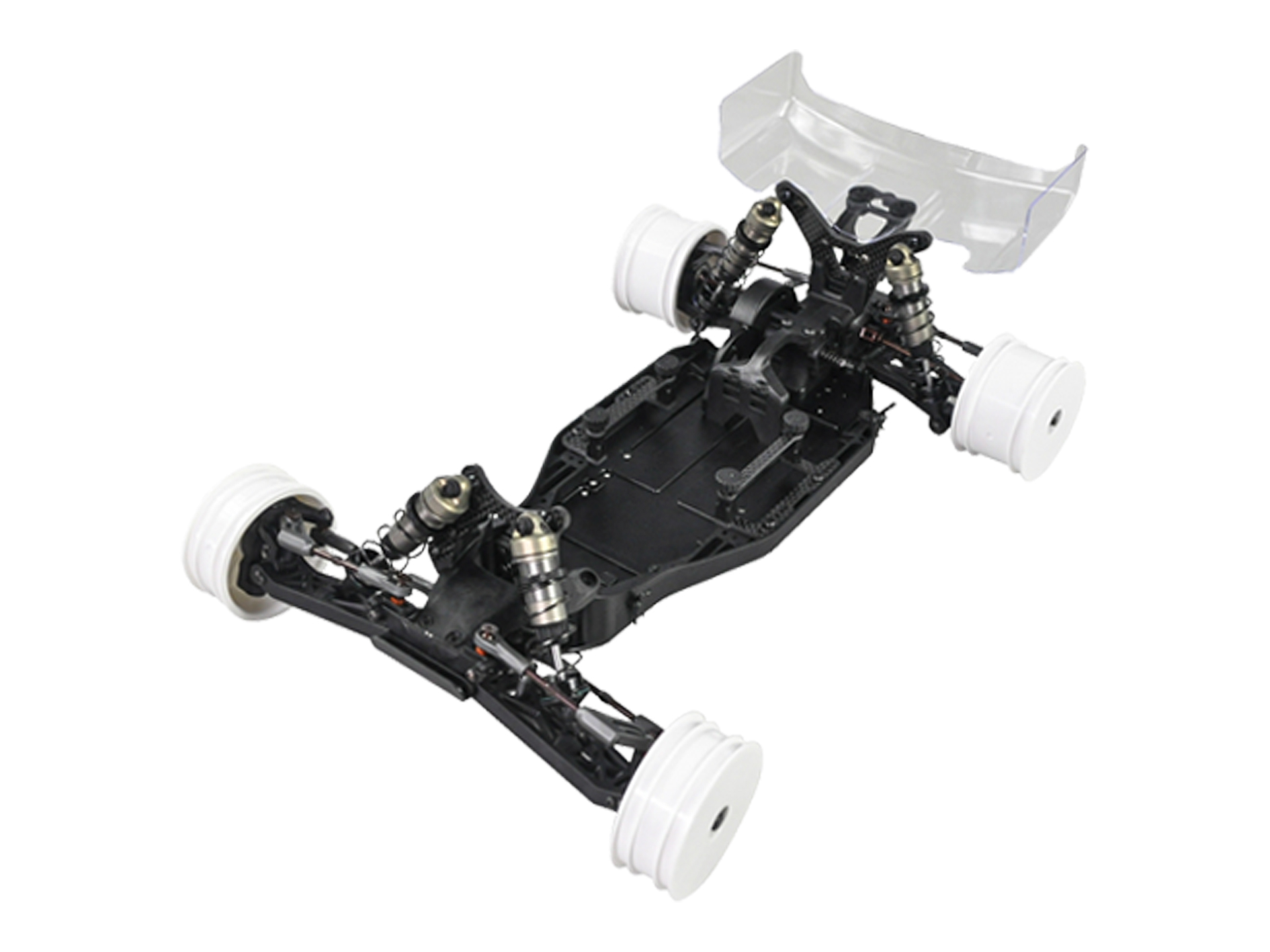

Serpent Spyder SRX2 Gen3 Team — Photo: Serpent (opens in a new tab)

Specifications

Last modified Sep 28, 2026

Spec	Value	Basis
Vehicle
Class The kind of vehicle the maker sells it as. It sets what the car is built to do and which cars it is fair to compare it with. Buggies are low, light off-road cars built for jumps and fast corners on dirt, clay or turf tracks. Drive Only one axle is driven, the rear on almost every 2WD RC car. It is lighter and simpler, and it takes more throttle control on loose ground. Power Sold without a motor, so you choose the motor, ESC and battery yourself. Rows that depend on the motor say so. Build A kit you build yourself from parts. Most kits come without motor, ESC, servo, radio and battery, and many without tires or a painted body. The manual lists what to add. Scale The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement. A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size. Part number The maker's product number for this exact version. A V2, a new color, or a kit instead of an RTR usually has a different number, and parts can differ between them. Check it against your box or receipt before ordering parts.
Class	Buggy
Drive	2WD
Power	Motor not included
Build	Kit
Scale	1/10
Part number	500016
Drivetrain
Pinion The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite. On a chassis sold as kits, each kit brings its own. Spur The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter. Pinion and spur must have the same pitch, or tooth size, to mesh. The Gearing parts table below shows this car's pitch and part numbers. Transmission & axle Every reduction after the spur, multiplied together: transmission, differentials and axle gears. It is fixed by the design; the gearing you change is the pinion and spur. This one is worked out from the tooth counts the maker publishes. Final drive How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed.
Pinion	Not applicable
Spur	78TStock	Stock
Transmission & axle	2.43:1Derived	Derived
Final drive	Not applicable
Wheels & tires
Tire diameter The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller. Race tires wear down over a day, and a smaller tire gears the car shorter.
Tire diameter	Not applicable
Power
Motor Motor KV is the RPM a motor turns per volt with no load. This vehicle comes without a motor, so there is no stock KV; it depends on the one you fit. Motor shaft The diameter of the motor's output shaft, which a pinion's bore must match. This vehicle comes without a motor, so it depends on the one you fit. Battery The highest LiPo cell count the maker rates the electronics for. This vehicle comes without electronics, so it depends on the ESC and motor you fit.
Motor	Not applicable
Motor shaft	Not applicable
Battery	Not applicable
Performance
Theoretical top speed It needs a motor KV, and this vehicle comes without a motor. Fit one and the calculator works it out from the motor's KV and the gearing.
Theoretical top speed	Not applicable

How to read these figures

Stock is as the vehicle ships.
Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart.
Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how.
Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.

Gearing parts

Pinion and spur parts for the Serpent Spyder SRX2 Gen3 Team: fitted, and optional gearing supplied in the box
Component	Teeth	Pitch	Bore	Part number
Fitted at the factory
Spur	78T	Not recorded	Not applicable	500216

About teeth, pitch and bore

Tooth counts are the ones in the specifications above.
Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close.
Bore is the pinion’s hole, listed separately from the motor shaft.

How these numbers were settled

2WD race kit with a 3-gear laydown transmission.

Serpent's reference guide for 500016 lists as kit parts the 78T spur (500216), a 21T top shaft (500701), a 39T idler (500730) and the 51T gear diff set (500790).
The idler does not change the ratio, so 51/21 = 2.4286 after the spur is worked out from the tooth counts, not printed.
The manual states the pinion is not included, and that rims are included but rubber tyres are not, so the tyre size is left blank; the diff and shock oil values are on the default setup sheet.
