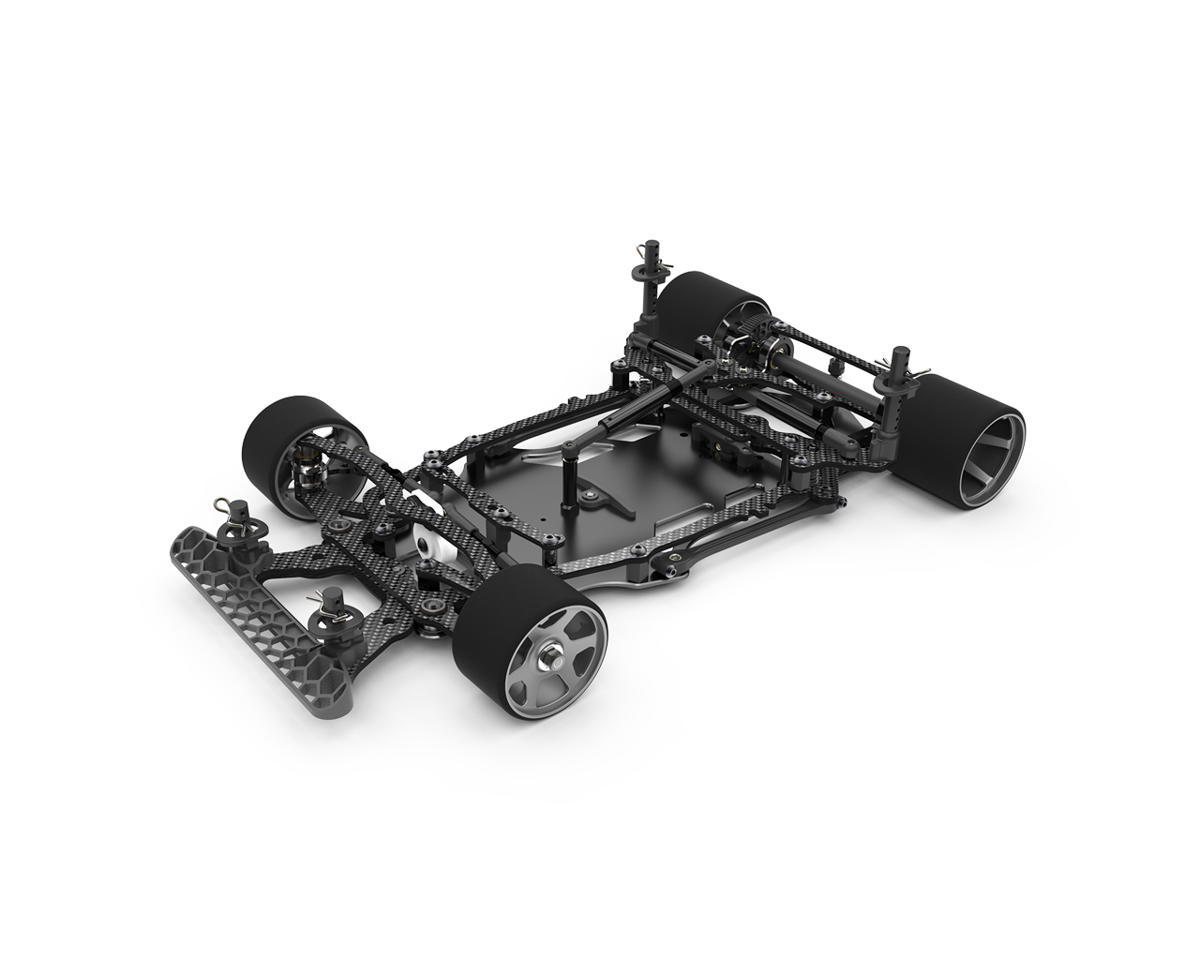

VehiclesSchumacher Eclipse 6
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | Not applicable | |
| Spur | 76TStock | Stock |
| Transmission & axle | 1.00:1Derived | Derived |
| Final drive | Not applicable | |
| Wheels & tires | ||
| Tire diameter | Not applicable | |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | K218 | |
| Scale | 1/12 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Spur | 76T | 64P | Not applicable | CR515 (opens in a new tab)CORE RC |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
1/12 LMP pan car kit.
- The manual's transmission spares list the 76T/64DP spur (CR515), and its rollout section works the gear ratio as spur over pinion (its example is 76/40 = 1.9), so there is no reduction after the spur.
- Its rollout chart assumes a 41.5mm tyre, but no stock tyre size is given, so the tyre is left blank.
- Motor, pinion, speed controller and bodyshell are on the list of items to buy.
- Schumacher sells it as K218, 'Eclipse 6 - 1/12th Circuit - Kit'.
Documents
Sources
- Manual (PDF)racing-cars.com (opens in a new tab)
- technical-information-eclip…racing-cars.com (opens in a new tab)
- eclipse-6-1-12th-circuit-ki…racing-cars.com (opens in a new tab)
- eclipse-6racing-cars.com (opens in a new tab)
- core-rc-spur-gear-76t-64dp-…racing-cars.com (opens in a new tab)
- searchracing-cars.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
