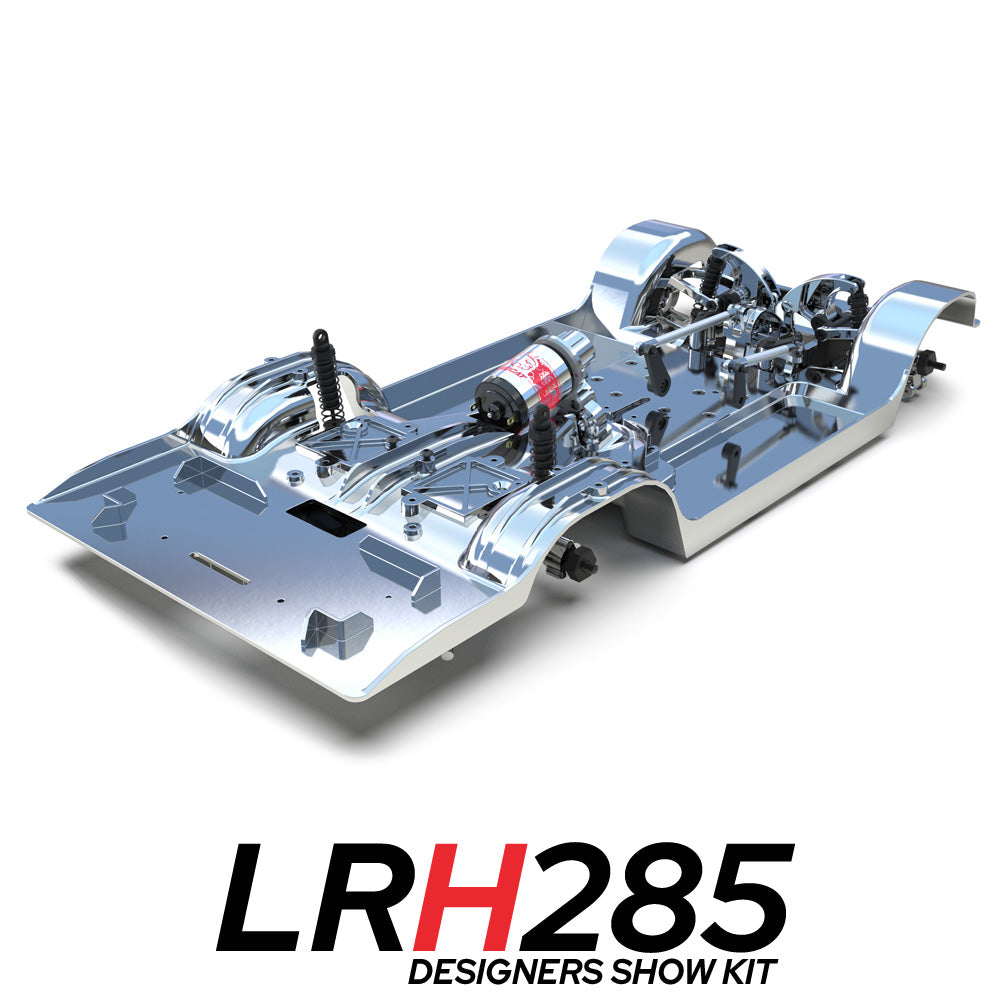

Redcat Racing LRH285 Designer Show Kit

The kind of vehicle the maker sells it as. It sets what the car is built to do and which cars it is fair to compare it with.

• Street covers on-road bashers: speed-run, muscle and drag cars built for straight-line speed rather than racing.

Only one axle is driven, the rear on almost every 2WD RC car.

• It is lighter and simpler, and it takes more throttle control on loose ground.

A brushed motor carries current through carbon brushes that rub on the commutator.

• It is cheaper and smooth at low speed.
• The brushes wear and the motor loses power over time.

Almost ready to run: built at the factory but missing some electronics, usually the radio and sometimes the motor, ESC or servo.

The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement.

• A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size.
• This one is 519 mm long.

The maker's product number for this exact version.

• A V2, a new color, or a kit instead of an RTR usually has a different number, and parts can differ between them.
• Check it against your box or receipt before ordering parts.

The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite.

• It depends on the motor you fit, so the maker does not list one.

The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter.

• Pinion and spur must have the same pitch, or tooth size, to mesh.

Every reduction after the spur, multiplied together: transmission, differentials and axle gears.

• It is fixed by the design; the gearing you change is the pinion and spur.

How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed.

The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller.

• At high speed tires can balloon and grow, so the real gearing gets taller as the car goes faster.

Brushed motors are rated by can size and turns rather than KV, so there is no KV to show.

The highest LiPo cell count the maker rates the electronics for.

• The maker does not publish it.

A brushed motor has no KV rating, so no theoretical top speed is worked out. Compare gearing by rollout instead.

Overall length as the maker states it, usually with the body fitted.

• Useful for comparing real size, since scale labels are loose.

Overall width as the maker states it, usually with the body fitted.

• A wider car is more stable in corners and harder to roll over.

Overall height as the maker states it, usually with the body fitted.

• Useful when checking it fits a shelf, a bag or a car trunk.

The distance between the front and rear axle centers. A longer wheelbase is steadier at speed and over bumps; a shorter one turns more tightly.
