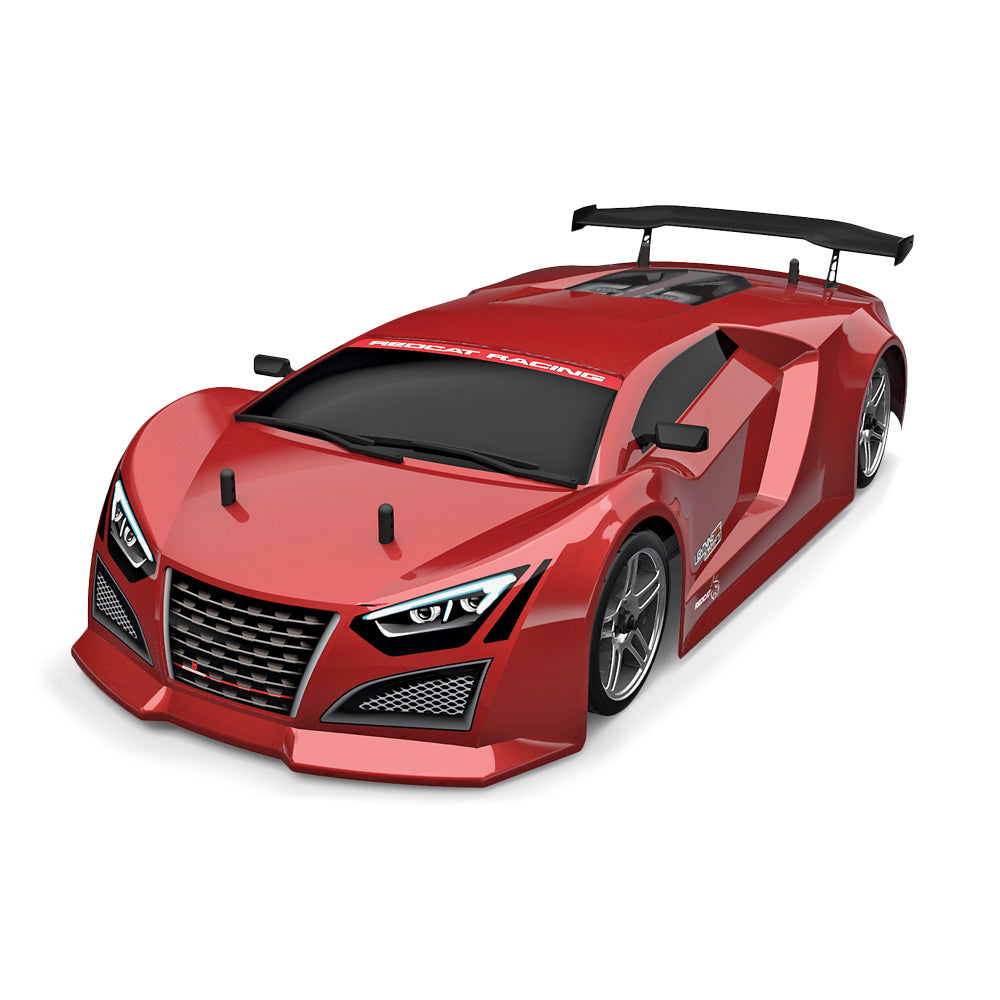

Redcat Racing Lightning EPX Drift
1/10 scale · touring and drift body
- Final drive
- 6.52:1
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 26TStock | Stock |
| Spur | 58TStock | Stock |
| Transmission & axle | 2.92:1Derived | Derived |
| Final drive | 6.52:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not published | |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not published | |
| Battery | Up to 3SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Scale | 1/10 | |
| Class | Touring and drift body | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 26T | Mod 0.6 | Not published | 03005 (opens in a new tab) |
| Spur | 58T | Mod 0.6 | Not applicable | 03004 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
Redcat's manual for the Lightning EP Drift is a single parts sheet shared with the EPX Pro.
- Its gear table gives the brushed version's standard gearing as '#03004-58T #03005-26T 1:6.52', a 58T diff main gear on a 26T motor gear, and the specification table repeats 1:6.52 for the drift car.
- The diffs use an 02029 38T crown gear and an 02030 drive pinion that Redcat's parts page lists as 13T for the Lightning EP Drift, so 38/13 = 2.92 after the spur and 58/26 x 2.92 = 6.52, matching the printed figure.
- The tire diameter is left blank: the same table gives the drift car's 'Diameter of Wheel' as 85mm against 65mm for the on-road car, which is not believable for 1/10 drift tires.
- Redcat's HW-WP-1040-Brushed speed control lists the Lightning EP Drift and is rated to 3S LiPo.
- The motor is a 19T 550 brushed can, so no KV.
Documents
- Parts listLightning EP/EPX Pro parts sheet (Redcat PDF) (opens in a new tab)Spare parts, 03004 and 03005
- Gearing chartGear ratio table, Lightning EP/EPX Pro (Redcat PDF) (opens in a new tab)Specifications table, general gear 58T/26T
- Exploded viewGear box and full assembly views (Redcat PDF) (opens in a new tab)Right-hand panels
Sources
- lightning-epx-driftredcatracing.com (opens in a new tab)
- viewdrive.google.com (opens in a new tab)
- 02030redcatracing.com (opens in a new tab)
- 08074redcatracing.com (opens in a new tab)
- hw-wp-1040-brushedredcatracing.com (opens in a new tab)
- 03005-1redcatracing.com (opens in a new tab)
- 03004-1redcatracing.com (opens in a new tab)
- 28446redcatracing.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
