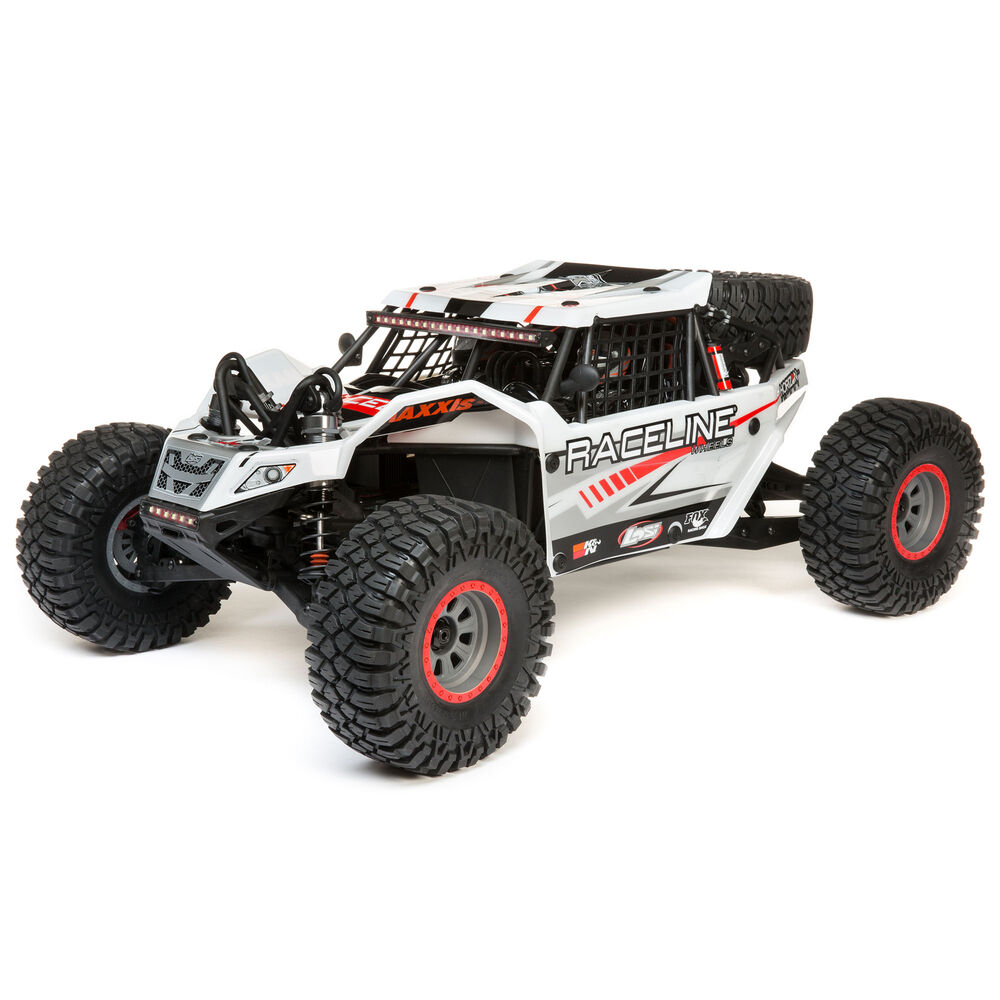

Losi Super Rock Rey 1/6 4WD Brushless Rock Racer RTR w/AVC

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. The top speed is kinematic: an ideal no-load RPM with no slip and no loss under load, so a real car is slower.

How these numbers were settled

From Losi's spec table on the LOS05016T2 page: Pinion 16T, Spur Gear 37T, Final Drive Ratio 9.76:1, Outer Diameter 7.0in (177.8mm), 750Kv Dynamite Fuze brushless motor, up to 8S LiPo.

• The same page also lists an 'Internal Gear Ratio' of 4.88:1, which is inconsistent with the published pinion and spur: 37/16 x 4.88 = 11.28, not 9.76, a miss of about 15%.
• A top-speed check using the published 9.76 final drive, KV, cell count and tire gives 750 x 29.6V (8S nominal) / 9.76 x pi x 0.1778m / 60 x 2.237 = about 47 mph, close to Losi's marketed '50-55+ mph'.
• On that basis 9.76 is taken as the correct final drive, and the transmission and axle ratio is back-derived as 9.76 / (37/16) = 4.22 instead of using Losi's inconsistent 4.88.
• The figures are graded verified because the top-speed check independently corroborates them.
• Losi has since released a Super Rock Rey V2 (LOS05016V2) with Spektrum Firma rather than Dynamite Fuze electronics; whether its gearing or tire differ from V1 is unconfirmed, so it is not listed separately.
• This remains unresolved.

Sources

• LOS05016T2losi.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
