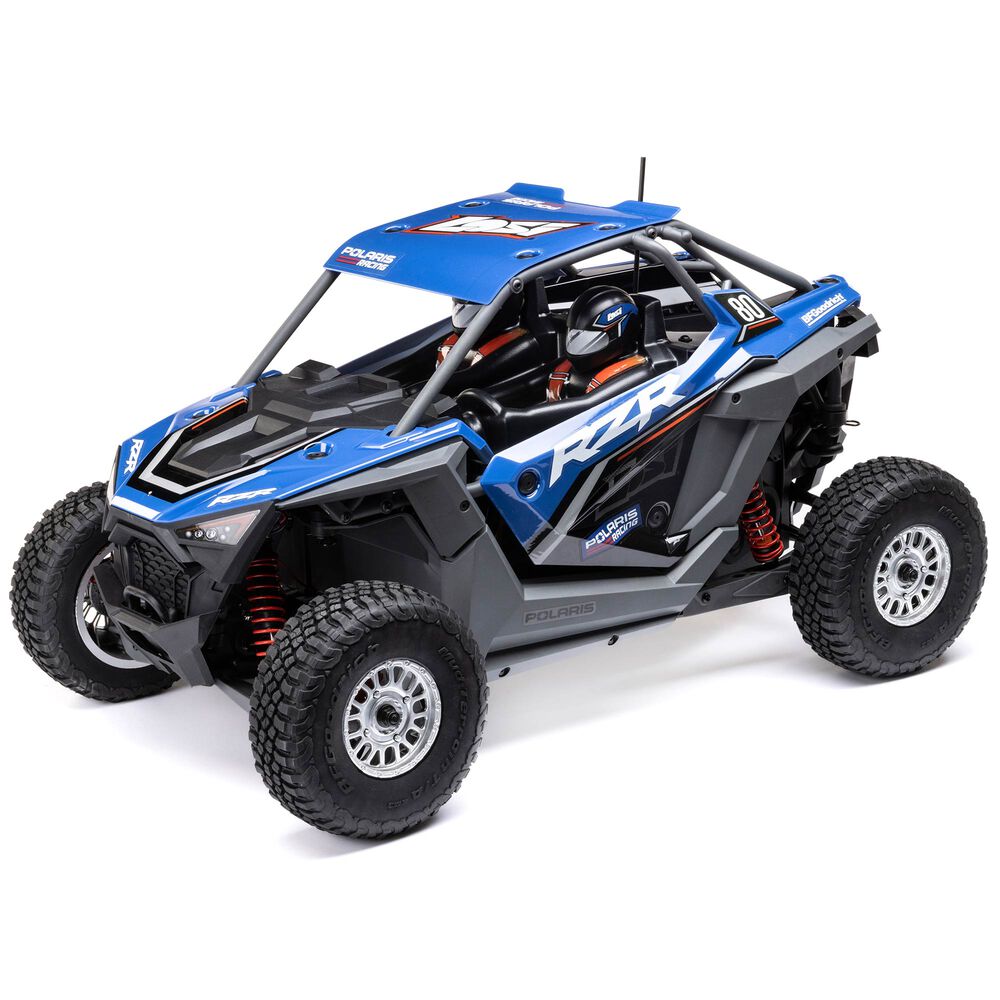

VehiclesLosi RZR Rey 3S 4X4 RTR Brushless
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 12TStock | Stock |
| Spur | 36TStock | Stock |
| Transmission & axle | Not published | |
| Final drive | Not published | |
| Wheels & tires | ||
| Tire diameter | Not published | |
| Wheel hex | 12 mmStock | Stock |
| Power | ||
| Motor | 3800KVStock | Stock |
| Motor shaft | Not published | |
| Battery | Up to 3SLiPoStock | Stock |
| Stock motor | Spektrum Firma 3800Kv Brushless MotorStock | Stock |
| Stock ESC | Spektrum Firma 130A Brushless Smart ESCStock | Stock |
| Battery connector | IC5Stock | Stock |
| Performance | ||
| Theoretical top speed | Not published | |
| Advertised top speed | 45mphMaker's claim | Maker's claim |
| Chassis | ||
| Weight | 3.86 kg (8.5 lb)Stock | Stock |
| Length | 483 mm19 inStock | Stock |
| Width | 290 mm11.4 inStock | Stock |
| Height | 276 mm10.9 inStock | Stock |
| Wheelbase | 363 mm14.3 inStock | Stock |
| Vehicle | ||
| Part number | LOS03029 | |
| Scale | 1/10 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 12T | Mod 1 | Not published | Not published |
| Spur | 36T | Mod 1 | Not applicable | Not published |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft.
How these numbers were settled
Losi's spec table lists a 12T pinion and a 36T spur, and the manual twice calls the stock pinion 12T.
- The same table prints an internal ratio of 4.16:1 and a final drive of 14.58:1, which do not agree with each other (36/12 x 4.16 is 12.48), and Losi publishes no transmission tooth counts that would settle it, so both ratios are left blank.
- The manual's parts list names only a 13T pinion (LOSA3573) and a 42T ring and 12T pinion diff set (LOS232019).
- Losi does not publish the diameter of the BFGoodrich KM3 tires on the 2.2 in wheels.
- The Firma 130A ESC is sold as a 2S to 4S unit, but the manual says this vehicle is compatible with 2S and 3S packs only, so 3S is shown here.
- Blue Polaris (T1) and orange Fox (T2) versions differ only in body.
Documents
- ManualOwner's manual (Horizon PDF) (opens in a new tab)Gearing p. 9; replacement parts p. 11
- Exploded viewExploded view (Horizon PDF) (opens in a new tab)
Sources
- LOS03029horizonhobby.com (opens in a new tab)
- Manual (PDF)production-na01-horizonhobby.demandware.net (opens in a new tab)
- LOSA3573horizonhobby.com (opens in a new tab)
- LOS232019horizonhobby.com (opens in a new tab)
- SPMXSE1130horizonhobby.com (opens in a new tab)
- SPMXSM2900horizonhobby.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
