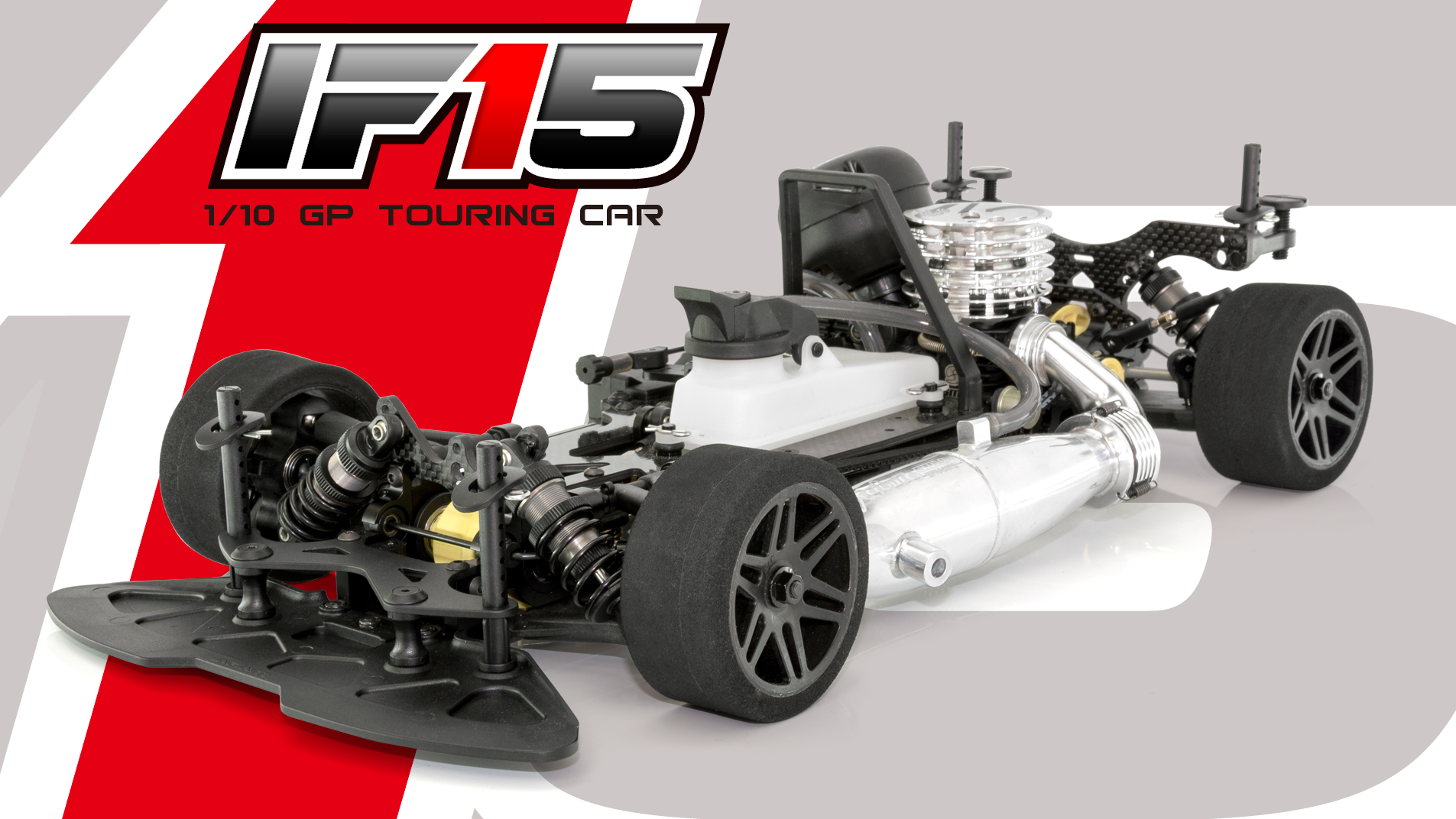

VehiclesInfinity IF15
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 21TStock | Stock |
| Spur | 54TStock | Stock |
| Transmission & axle | Not published | |
| Final drive | Not published | |
| Wheels & tires | ||
| Tire diameter | Not applicable | |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Scale | 1/10 | |
| Class | Touring and drift body | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 21T | Not recorded | Not recorded | Not recorded |
| Spur | 54T | Not published | Not applicable | G017-54 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
Nitro 1/10 touring car with a two-speed transmission; engine, tires and wheels are not included.
- The manual supplies a 16T first and 21T second pinion on the clutch bell with a 59T first and 54T second spur, so second gear, 21T on 54T, is stored as the fitted set.
- The belt and pulley reduction after the spur is not printed, so it and the total are left blank.
Documents
- Parts listParts compatibility table, IF15 series (Infinity PDF, Japanese) (opens in a new tab)G017-54, G065
Sources
- if15-1-10-gp-touring-carcreationmodel.net (opens in a new tab)
- Manual (PDF)creationmodel.net (opens in a new tab)
- G017-54infinity-rcshop.jp (opens in a new tab)
- Manual (PDF)infinity-rcshop.jp (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
