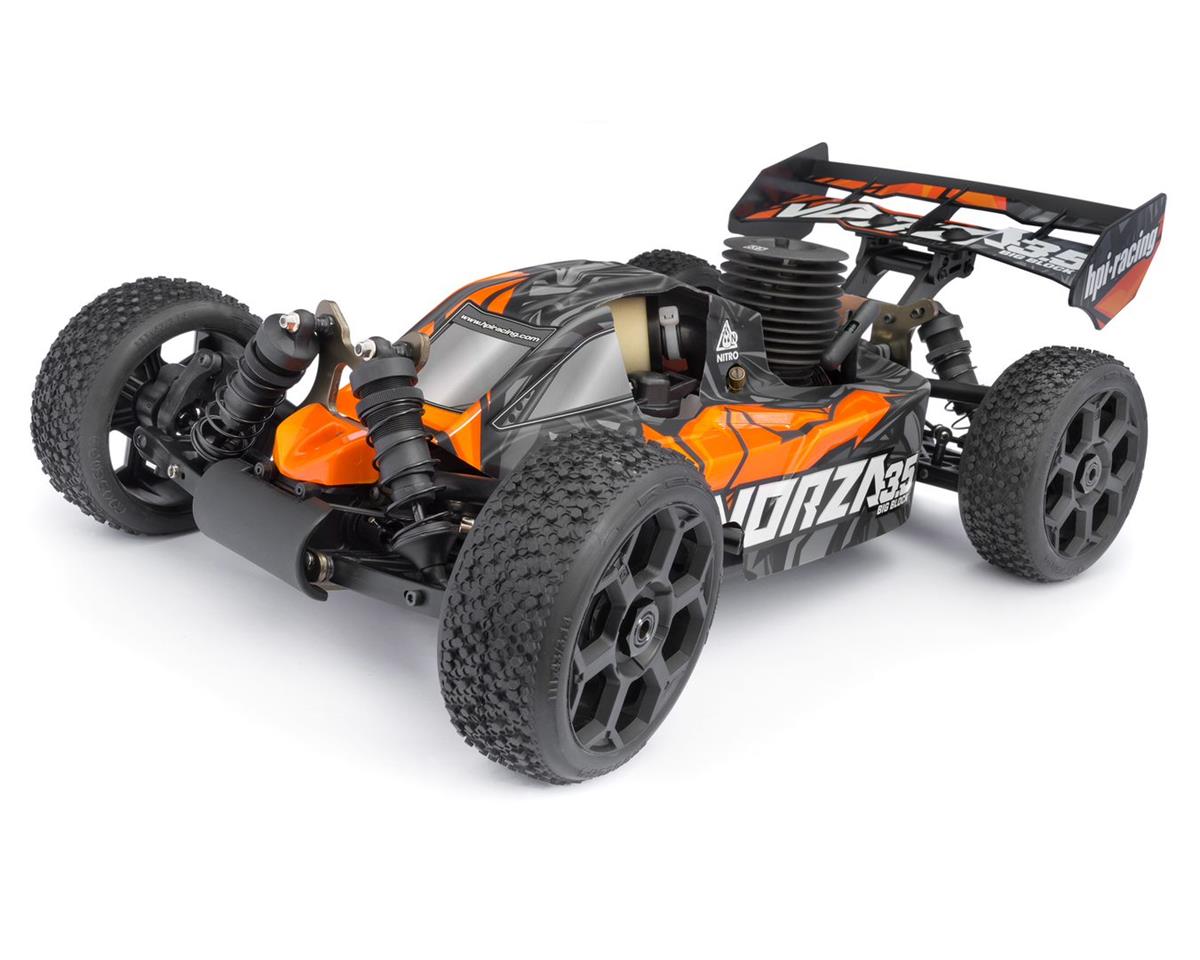

HPI Racing Vorza Nitro Buggy
1/8 scale · buggy · 160177
- Final drive
- 12.90:1
- Tire
- 111mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 16TStock | Stock |
| Spur | 48TStock | Stock |
| Transmission & axle | 4.30:1Derived | Derived |
| Spur ÷ pinion | 3.000:1Calculated | Calculated |
| Final drive | 12.90:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 111mmStock | Stock |
| Rollout | 27.0mm per motor turnCalculated | Calculated |
| Wheel hex | 17 mmStock | Stock |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Chassis | ||
| Length | 508 mm20 inStock | Stock |
| Height | 178 mm7 inStock | Stock |
| Wheelbase | 325 mm12.8 inStock | Stock |
| Shock oil, front | 500 cStStock | Stock |
| Shock oil, rear | 500 cStStock | Stock |
| Vehicle | ||
| Part number | 160177 | |
| Scale | 1/8 | |
| Class | Buggy | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 16T | Not published | Not applicable | 67440 (opens in a new tab) |
| Spur | 48T | Not published | Not applicable | 67428 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
Nitro version of the Vorza buggy, with the Nitro Star F3.5 V2 engine.
- The manual's parts list (p. 44) and HPI's standard parts list both name a 16T clutch bell (67440), a 48T spur (67428), and a 10T spiral pinion (67499) driving a 43T spiral diff gear (101192), so the ratio after the spur is 43/10 = 4.3 and the total is 48/16 x 4.3 = 12.9:1.
- Tires are Tredz Causeway, 111mm outer diameter by 43mm wide (160280).
- The product page prints a 205mm width, which does not fit the 305mm printed for the same chassis on the Vorza Flux page, so the width is left blank.
Documents
- ManualVorza 3.5 Nitro Buggy instruction manual (HPI PDF) (opens in a new tab)Clutch and spur gear mesh, p. 25
- Parts listVorza 3.5 Nitro Buggy parts list (HPI PDF) (opens in a new tab)p. 44; option parts p. 45
- Exploded viewVorza Nitro Buggy exploded view (HPI PDF) (opens in a new tab)
Sources
- 160177hpiracing.com (opens in a new tab)
- stdhpiracing.com (opens in a new tab)
- Manual (PDF)hpiracing.com (opens in a new tab)
- 160280hpiracing.com (opens in a new tab)
- 67440hpiracing.com (opens in a new tab)
- 67428hpiracing.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
