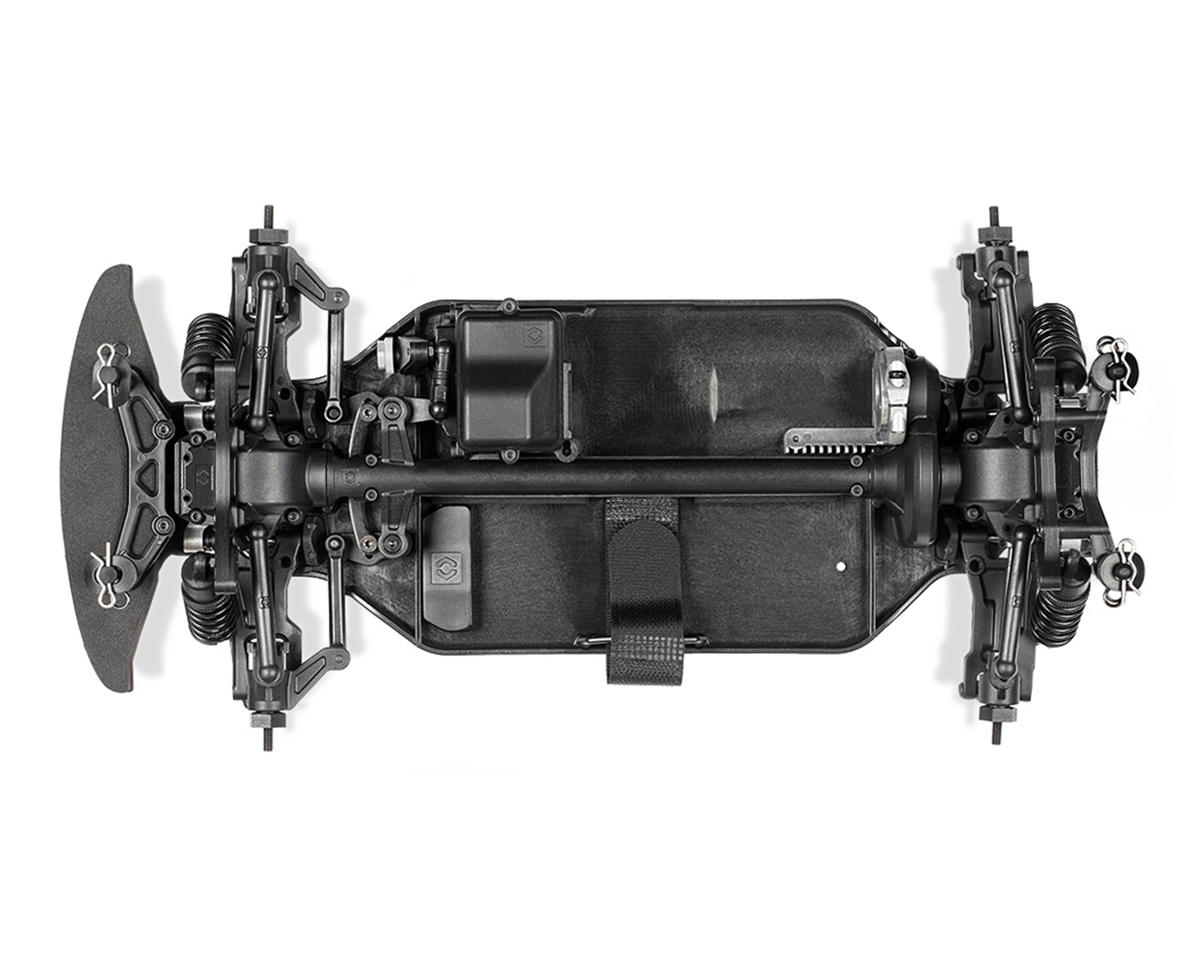

HPI Racing Sport 3 Creator Edition

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.

Gearing parts

Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.

Buying a new pinion or spur? Check what’s fitted first: Why your RC's gear specs might not add up

How these numbers were settled

Pre-built full-time 4WD touring car chassis with heavy-duty gear differentials, sold without a motor, speed control, pinion gear, wheels or tires. HPI's own standard-parts listing for this kit names a 66-tooth spur gear and a 40-tooth to 13-tooth differential bevel pair, giving a 3.077 to 1 reduction after the spur.

Sources

• 118000hpiracing.com (opens in a new tab)
• stdhpiracing.com (opens in a new tab)
• 101215hpiracing.com (opens in a new tab)
• 101216hpiracing.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
