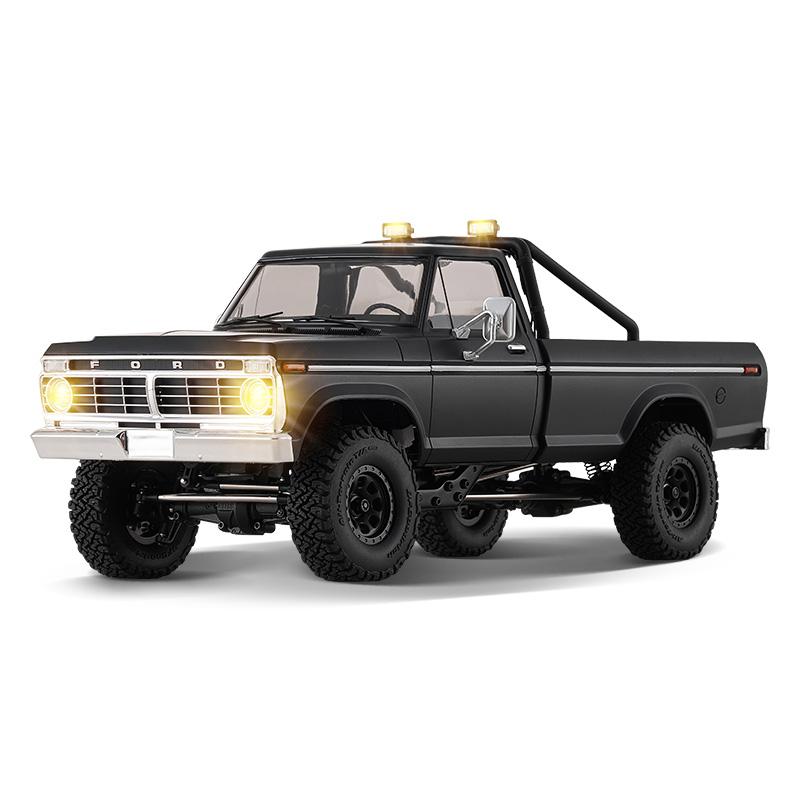

VehiclesFMS FCX18 II Ford F-100 Brushless
FMS FCX18 II Ford F-100 Brushless
1/18 scale · scale crawler · 118L01BLBK
- Top speed
- 11mphcalculated
- Final drive
- 17.70:1
- Tire
- 58mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | Not published | |
| Spur | Not published | |
| Transmission & axle | Not published | |
| Final drive | 17.70:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 58mmStock | Stock |
| Rollout | 10.3mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | 2600KVStock | Stock |
| Motor shaft | Not published | |
| Battery | Up to 3SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | 11.1mph on 3SCalculated | Calculated |
| Motor speed | 28,860rpm, no loadCalculated | Calculated |
| Vehicle | ||
| Part number | 118L01BLBK | |
| Scale | 1/18 | |
| Class | Scale crawler | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it. The top speed is kinematic: an ideal no-load RPM with no slip and no loss under load, so a real car is slower.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | Not published | Not published | Not published | C4089 (opens in a new tab) |
| Spur | Not published | Not published | Not applicable | C4087 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
FMS prints the two-speed gearing as totals: 'High Gear: 17.7, Low Gear: 94.2', on the product page and in the manual's specification page; the high gear is used here and the low gear of 94.2 is the crawl ratio.
- The motor is a 1312 brushless can that the product page describes as a '1312 2600KV brushless motor'.
- The ESC is the SO-ESC10ABL-1312, which the manual rates at '2-3S Lipo' for motors up to 4300KV; the truck ships with a 2S 7.4V 900mAh pack.
- The tire is the licensed BFGoodrich KO3 at 'Φ 58*19 mm' in FMS's own specification table.
- FMS lists the pinion (C4089) and the transmission and axle gear sets (C4087, C4088) as spare parts but prints no tooth counts, so the pinion, the spur and the ratio after it are left blank. 118L01BLBK is the black edition's SKU; no colour-free SKU is published.
Documents
- ManualInstruction manual, FCX18 II F-100 (FMS PDF) (opens in a new tab)Specifications PDF p. 10
- Exploded viewExploded view, transmission (in FMS manual PDF) (opens in a new tab)Pinion and spur, PDF p. 35
- Parts listSpare parts list (in FMS manual PDF) (opens in a new tab)Pinion C4089, gear set C4087, PDF p. 33
Sources
- fms-1-18-fcx18-ii-ford-f-10…fmshobby.com (opens in a new tab)
- Manual (PDF)cdn-files.myshopline.com (opens in a new tab)
- fcx18ii-pinion-gearfmshobby.com (opens in a new tab)
- fcx18ii-gear-set-for-transm…fmshobby.com (opens in a new tab)
- fcx18-ii-1312-brushless-mot…fmshobby.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
