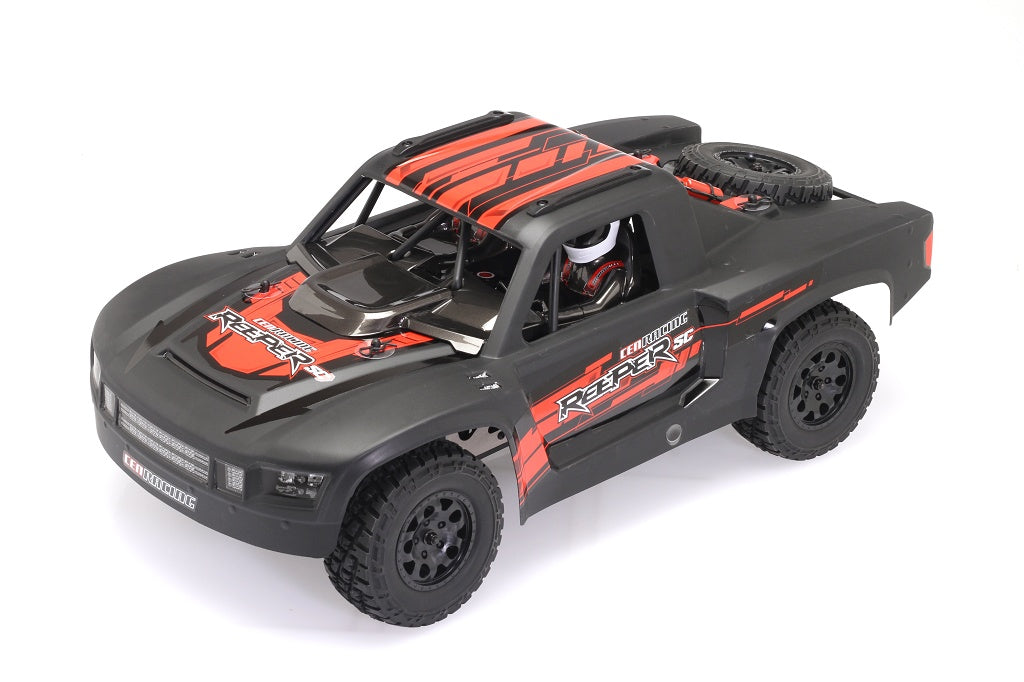

VehiclesCEN Racing Reeper SC
CEN Racing Reeper SC
1/10 scale · short course truck · 9510
- Final drive
- 10.98:1
Open in Top Speedsourced
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 14TStock | Stock |
| Spur | 54TStock | Stock |
| Transmission & axle | 2.85:1Derived | Derived |
| Final drive | 10.98:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not published | |
| Power | ||
| Motor | 4000KVStock | Stock |
| Battery | Not published | |
| Performance | ||
| Theoretical top speed | Not published | |
| Vehicle | ||
| Part number | 9510 | |
| Scale | 1/10 | |
| Class | Short course truck | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not published means it exists but no source we could find prints it.
How these numbers were settled
CEN's product page lists the gearing as a 'Spur / Pinion Gear M0.8 54T/M0.8 14T' and a '37T Ring & 13T Pinion Gear' in bevel-gear diffs front, centre and rear.
- CEN prints no ratio, so the ratio after the spur is taken as the diff ring and pinion alone, 37/13 = 2.85, and the total is worked out as 54/14 x 2.85 = 10.98.
- The motor is a 3660 4000kv brushless can.
- The ESC is named only as a 'BEAST SL G2 80A' with no cell rating, and the short course tires are listed without a size, so both are left blank.
Sources
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
