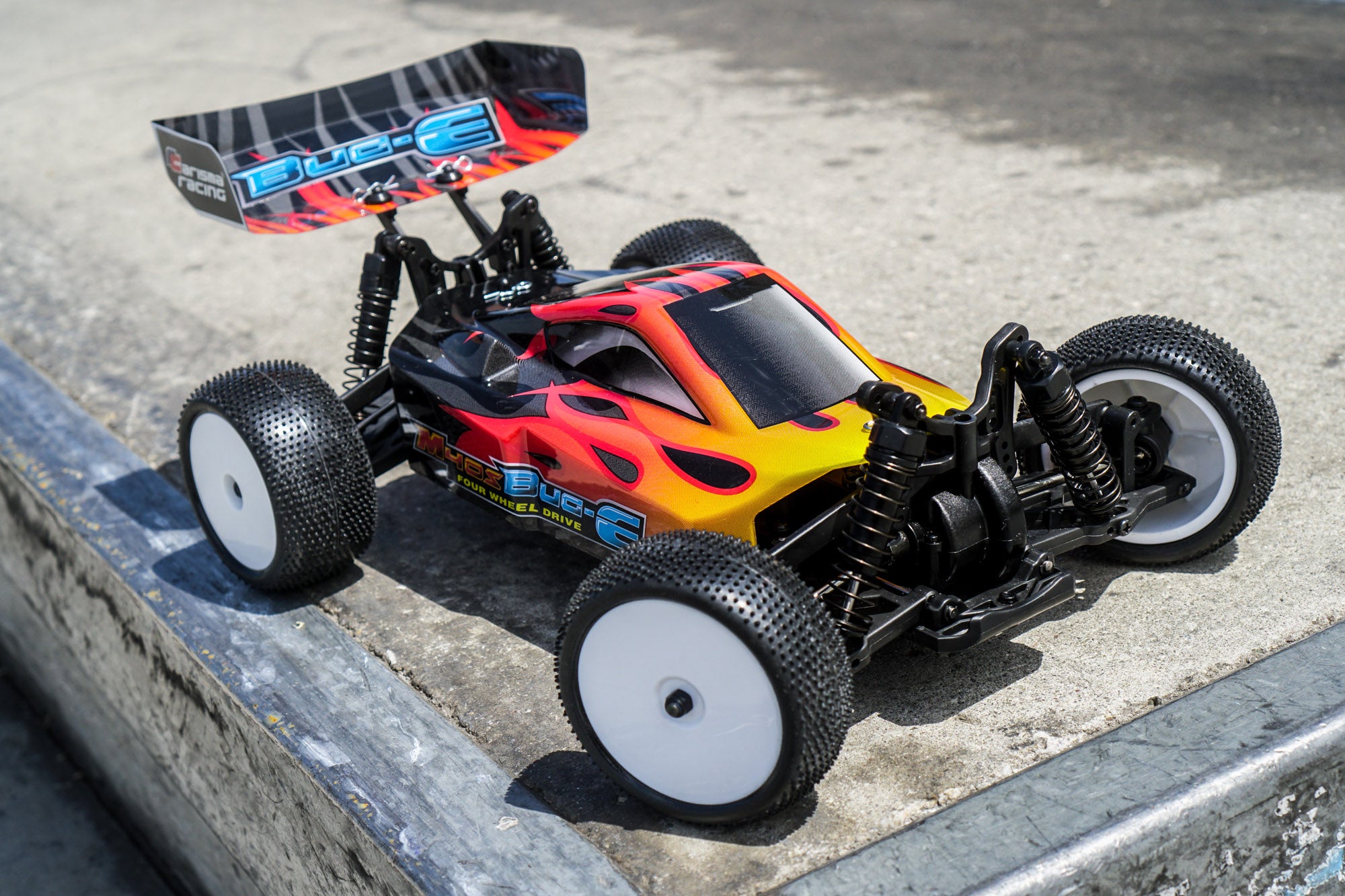

VehiclesCarisma M40 BUG-E
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 16TStock | Stock |
| Spur | 72TStock | Stock |
| Transmission & axle | 2.60:1Stock | Stock |
| Final drive | 11.70:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not published | |
| Power | ||
| Motor | Not applicable | |
| Battery | Not published | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | 83568 | |
| Scale | 1/10 | |
| Class | Buggy | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
How these numbers were settled
Carisma's spec list gives a 16T pinion, a 72T spur and an internal gear ratio of 15/39, which is a 2.6 reduction after the spur.
- Carisma prints the final drive as N/A, so the total is worked out: 72/16 x 2.6 = 11.7.
- The motor is a 19T 540 brushed motor, so there is no KV.
- The spec list gives a wheel size of 65x30mm front and 64x40mm rear, but it is labelled as the wheel and may not be the tire's outer diameter, so the tire is left blank.
- The MSC-900WP 38A brushed ESC has no published LiPo rating, so the cell count is left blank.
Sources
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
