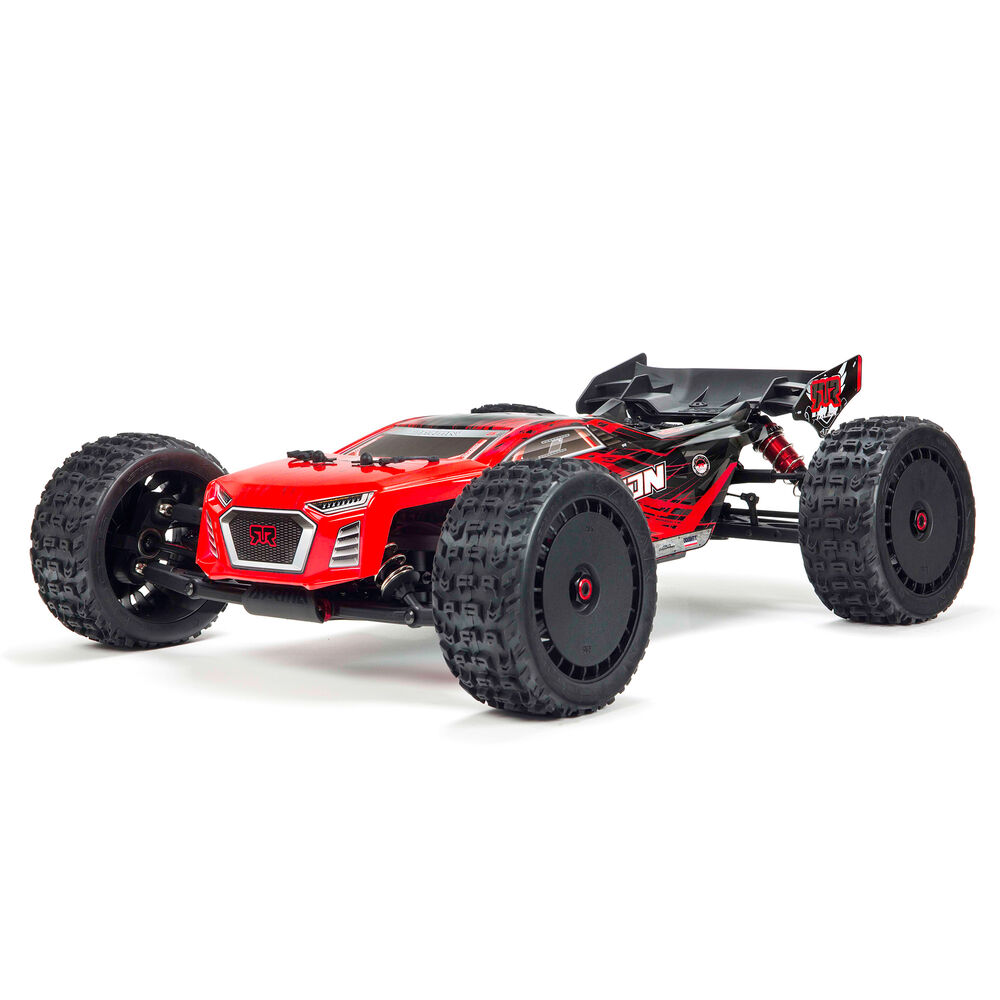

VehiclesArrma Talion 6S BLX
Arrma Talion 6S BLX
1/8 scale · ARA106048
- Top speed
- 47mphcalculated
- Final drive
- 16.54:1
- Tire
- 145mm
Open in Top Speedsourced
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 13TStock | Stock |
| Spur | 50TStock | Stock |
| Transmission & axle | 4.30:1Stock | Stock |
| Spur ÷ pinion | 3.846:1Calculated | Calculated |
| Final drive | 16.54:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 145mmStock | Stock |
| Rollout | 27.5mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | 2050KVStock | Stock |
| Battery | Up to 6SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | 46.7mph on 6SCalculated | Calculated |
| Motor speed | 45,510rpm, no loadCalculated | Calculated |
| Advertised top speed | 70mphMaker's claim | Maker's claim |
| Vehicle | ||
| Part number | ARA106048 | |
| Scale | 1/8 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. The top speed is kinematic: an ideal no-load RPM with no slip and no loss under load, so a real car is slower. The maker advertises 70 mph, which is their own claim on their own conditions.
How these numbers were settled
Stock gearing.
- Arrma's own footnote on this product reads 'Speed achievable in optimum conditions on 6S LiPo with optional pinion gear', so the 70+ mph claim is excluded from the physics check: stock 13T gearing computes to about 53 mph. 50/13 x 4.3 = 16.538 against the printed 16.54.
- Tire diameter is the Outer Diameter published on Arrma's own spec sheet for the vehicle.
Sources
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
