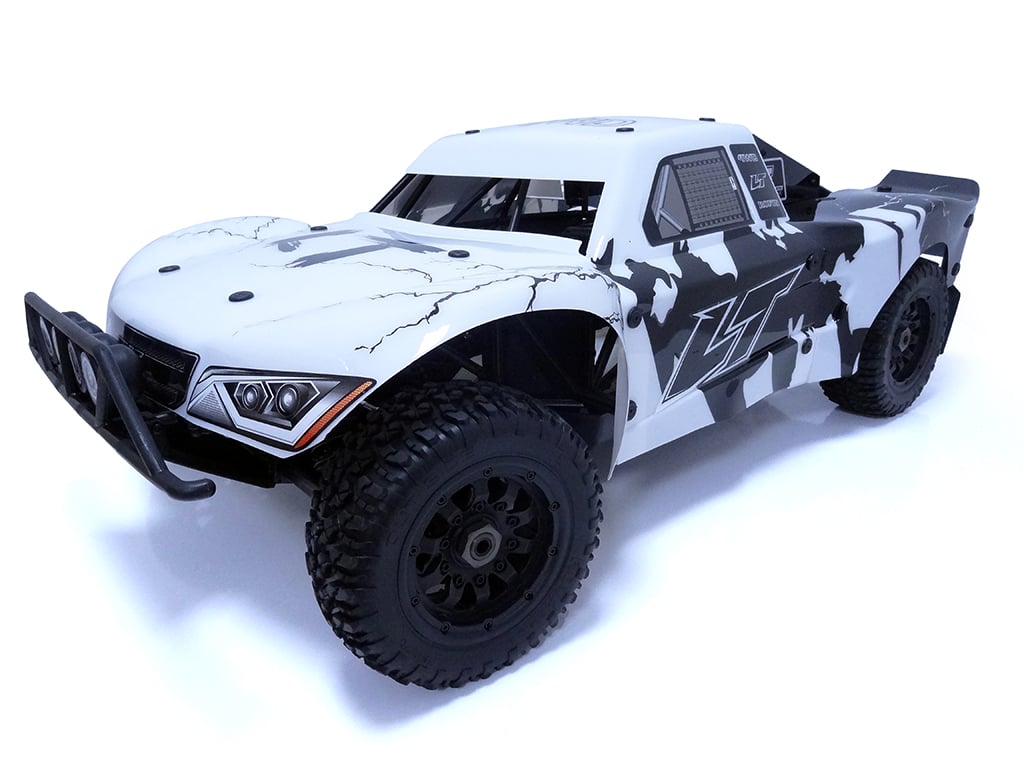

VehiclesRovan 360LT
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 19TStock | Stock |
| Spur | 58TStock | Stock |
| Transmission & axle | Not published | |
| Final drive | Not published | |
| Wheels & tires | ||
| Tire diameter | 170mmStock | Stock |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | RV360LT | |
| Scale | 1/5 | |
| Class | Short course truck | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 19T | Not published | Not applicable | RV151051 (opens in a new tab) |
| Spur | 58T | Not published | Not applicable | RV151050 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
Gas powered by a 36cc Rovan two-stroke through an 8000 rpm clutch, so motor KV and cell count do not apply.
- The LT manual Rovan RC publishes states that stock gearing for the LT is 19/58, with 18T and 20T pinions available as options.
- Rovan RC also sells the 19T steel pinion as the stock replacement for the LT and SLT, and its replacement centre diffs for the LT, XLT and SLT carry a 58T spur.
- No front, centre or rear diff tooth counts are published, so the ratio after the spur and the final drive are left blank.
- The 170mm tire figure is from Rovan RC, the US distributor, which lists the stock wheel set as 170x80mm.
Documents
- ManualLT short course truck manual (PDF) (opens in a new tab)Gearing p. 24
- Exploded viewLT series instruction manual, exploded views (Rovan PDF) (opens in a new tab)Pinion 151051 PDF p. 9; centre diff gear 151050 p. 7
- Exploded viewLT short course truck manual, exploded views (PDF) (opens in a new tab)Section F, p. 25-30
Sources
- rv360ltrovanrc.com (opens in a new tab)
- Manual (PDF)rovanrc.com (opens in a new tab)
- RV151051rovanrc.com (opens in a new tab)
- rv871384rovanrc.com (opens in a new tab)
- rv151051rovanrc.com (opens in a new tab)
- Manual (PDF)rovanrc.com (opens in a new tab)
- rv151050rovanrc.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
