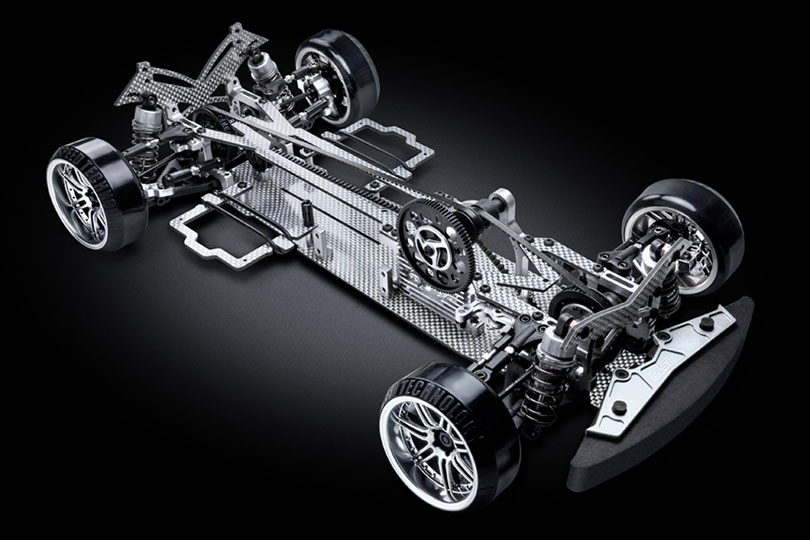

VehiclesMST MS-01D VIP II
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | Not applicable | |
| Spur | 88TStock | Stock |
| Transmission & axle | 2.00:1Stock | Stock |
| Final drive | Not applicable | |
| Wheels & tires | ||
| Tire diameter | Not applicable | |
| Power | ||
| Motor | Not applicable | |
| Battery | Not published | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | 532026 | |
| Scale | 1/10 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
How these numbers were settled
Belt-drive 4WD counter-steer: front one-way, rear spool.
- MST prints 'GEAR RATIO : 2.0 (36T/18T)' and 'CS RATIO : 1.54 (40T/13T)' on the same block, which reads as a contradiction because 40/13 is 3.08, not 1.54.
- It is not one: 40T/13T is the front drive ratio and 36T/18T the rear, and 3.0769 over 2.0 is 1.5385, which is the stated 1.54.
- The manual's own chart is (spur / pinion) x 2.0 throughout, confirming the rear figure. 88T 48P spur included, pinion not.
- MST sells a CS pulley set covering 1.54, 1.66 and 1.82, and the setup sheet has a tickable scale of 1.0 through 2.0, so the kit figure is one point on a range.
Sources
- product_car_info.phprc-mst.com (opens in a new tab)
- Manual (PDF)rc-mst.com (opens in a new tab)
- Manual (PDF)rc-mst.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
