Kyosho KC10 Chassis

Name: Kyosho KC10
Brand: Kyosho

1/10 scale · 4WD crawler chassis · sold as kits

Kyosho's KC10 is a 1/10 four-wheel-drive scale crawler chassis on a 317 mm wheelbase, sold as the Toyota Land Cruiser 60 readyset.

A 25T spur drives a two-speed transmission and axles that give 23.57:1 after the spur in low gear, where the gearbox is locked from the factory. High gear needs an optional shift kit and a third radio channel. For slow trail work the low range suits most owners; enter your pinion in the gearing tool to see the total.

Transmission & axle: 23.57:1
Spur: 25T
Wheelbase: 317mm
Introduced: 2026

Gearing Top speedsourced

The pinion, motor and tires come with each kit: enter yours in the gearing tool.

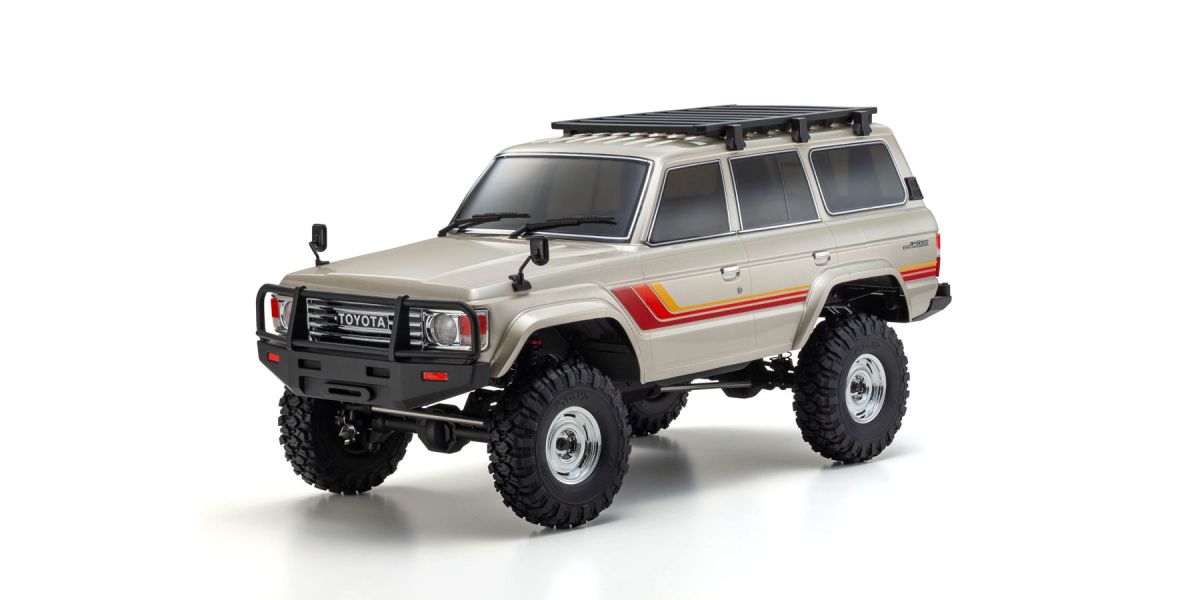

Kyosho KC10 — Photo: Kyosho (opens in a new tab)

Kits on this chassis Built on the KC10

Each kit adds its own body, tires, pinion and motor. The chassis figures below apply to all of them.

Kit	Part no.	Maker page
Toyota Land Cruiser 60 Body Type1	34801T1	rc.kyosho.comPage (opens in a new tab)

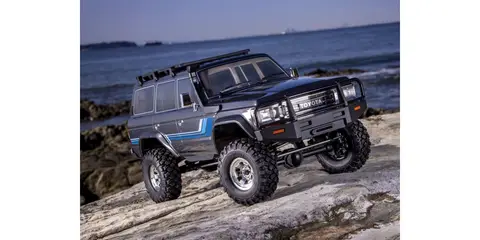

Toyota Land Cruiser 60 Body Type2	34801T2	rc.kyosho.comPage (opens in a new tab)

Specifications

Last modified Sep 28, 2026

Spec	Value	Basis
Vehicle
Class The kind of vehicle the maker sells it as. It sets what the car is built to do and which cars it is fair to compare it with. Crawlers are built for slow, controlled climbing over rocks: very low gearing, flexible suspension and locked axles. Drive All four wheels are driven. That gives more grip under power, especially on loose ground. The cost is more parts to maintain. A crawler needs every wheel pulling to climb. Scale The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement. A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size.
Class	Crawler
Drive	4WD
Scale	1/10
Drivetrain
Pinion The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite. On a chassis sold as kits, each kit brings its own. Spur The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter. Pinion and spur must have the same pitch, or tooth size, to mesh. Transmission & axle Every reduction after the spur, multiplied together: transmission, transfer case and axle gears. That chain is why a crawler's figure is much higher than other classes'. It is fixed by the design; the gearing you change is the pinion and spur. This one is worked out from the tooth counts the maker publishes. Final drive How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed. Crawlers run far higher ratios than other classes, so the truck can creep and hold on a climb.
Pinion	With each kit
Spur	25TStock	Stock
Transmission & axle	23.57:1Derived	Derived
Final drive	With each kit
Wheels & tires
Tire diameter The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller. Crawler wheels are named by rim size, such as 1.9 or 2.2 inches; that is the wheel, not this tire diameter.
Tire diameter	With each kit
Power
Motor Motor KV is the RPM a motor turns per volt with no load. This vehicle comes without a motor, so there is no stock KV; it depends on the one you fit. Battery The highest LiPo cell count the maker rates the electronics for. This vehicle comes without electronics, so it depends on the ESC and motor you fit.
Motor	With each kit
Battery	With each kit
Size & weight
Wheelbase The distance between the front and rear axle centers. A longer wheelbase is steadier at speed and over bumps; a shorter one turns more tightly. On a crawler it also decides how well the truck clears a ledge without the chassis catching.
Wheelbase	317 mm12.5 inStock	Stock

How to read these figures

Stock is as the vehicle ships.
Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart.
Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how.
With each kit means each kit on this chassis brings its own, so enter yours in the gearing tool.

How these numbers were settled

The KC10 is sold as the Toyota Land Cruiser 60 readyset.

Kyosho's KC10 page lists 'Pinion Gear: 12T', 'Spur Gear: 25T', 'Gear Ratio Low: 49.11' and 'Gear Ratio High(w/ CLW001): 21.05', so the transmission and axle ratio after the spur works out at 49.11 x 12 / 25 = 23.57 in low gear (10.10 in high).
As delivered the two-speed transmission stays locked in low with the DIG disabled; high gear needs the optional CLW001 2-Speed Shift Kit.
Kyosho's product pages round the totals to 49.1:1 and 21.1:1.
The spur is 0.8 module on the same page.
The pinion, motor and tires come with each kit, so enter yours in the gearing tool.

Sources

Every figure on this page traces to one of these; where they disagreed, the note above says which was used and why. Links open in a new tab.

Maker documents

Instruction manual, KC10 (Kyosho PDF) (opens in a new tab)kyosho.com

Parts and electronics

KC10 LC60 (opens in a new tab)rc.kyosho.comUsed forMain specsSize
34801T1 (opens in a new tab)rc.kyosho.comUsed forMain specsSize
34801T2 (opens in a new tab)rc.kyosho.comUsed forMain specs
