VehiclesHPI Racing Bullet ST 3.0

HPI Racing Bullet ST 3.0

1/10 scale · 110660

Final drive: 12.78:1

Open in Top Speedverified

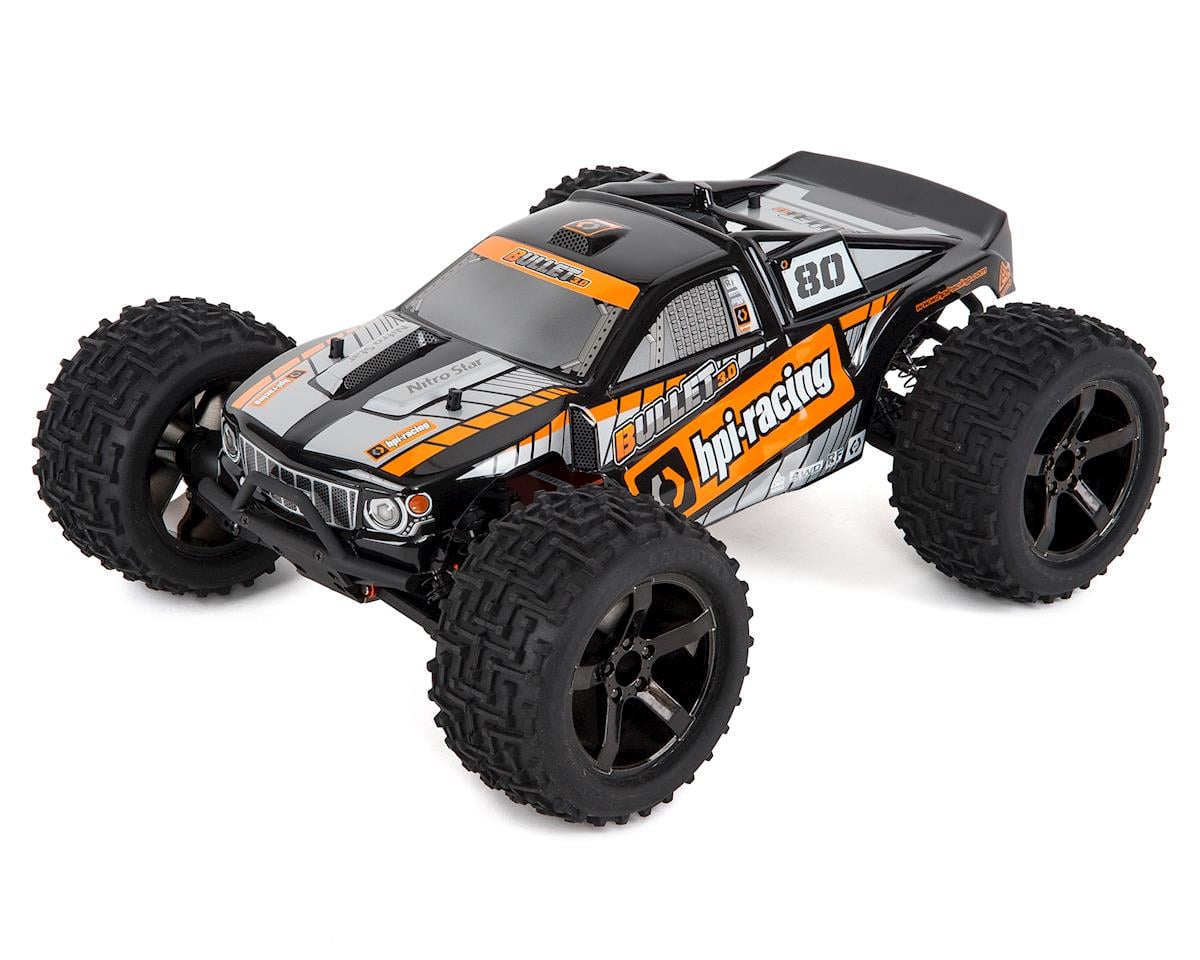

HPI Racing Bullet ST 3.0 — Photo: AMain Hobbies

Specifications

Last modified Sep 25, 2026

Spec	Value	Basis
Drivetrain
Pinion	13TStock	Stock
Spur	54TStock	Stock
Transmission & axle	3.08:1Derived	Derived
Final drive	12.78:1Stock	Stock
Wheels & tires
Tire diameter	Not published
Wheel hex	14 mmStock	Stock
Power
Motor	Not applicable
Motor shaft	Not applicable
Battery	Not applicable
Performance
Theoretical top speed	Not applicable
Chassis
Length	417 mm16.4 inStock	Stock
Width	336 mm13.2 inStock	Stock
Height	160 mm6.3 inStock	Stock
Wheelbase	272 mm10.7 inStock	Stock
Vehicle
Part number	110660
Scale	1/10

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.

Gearing parts

Pinion and spur parts for the HPI Racing Bullet ST 3.0: fitted, and optional gearing supplied in the box
Component	Teeth	Pitch	Bore	Part number
Fitted at the factory
Pinion	13T	Not published	Not applicable	101037 (opens in a new tab)
Spur	54T	Not published	Not applicable	101207 (opens in a new tab)

Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.

How these numbers were settled

Nitro 1/10 stadium truck with the Nitro Star G3.0 engine.

The manual's parts list (p. 38) and HPI's standard parts list both name a 13T clutch bell (101037), a 54T spur (101207) and a 40T/13T diff bevel pair (101215, 101216), so the ratio after the spur is 3.08 and the total is 54/13 x 40/13 = 12.78:1.
HPI gives only the tires' 3.2in (81mm) inner diameter, not the outer diameter, so the tire size is left blank.
The Bullet MT 3.0 (110661) shares the gearing, engine and 81mm wheels, with tires of unpublished size, so it is not listed separately.

Documents

ManualBullet Nitro 3.0 instruction manual (HPI PDF) (opens in a new tab)
Parts listBullet Nitro 3.0 parts list (HPI PDF) (opens in a new tab)p. 38
Exploded viewBullet 3.0 exploded view (HPI PDF) (opens in a new tab)

Sources

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
