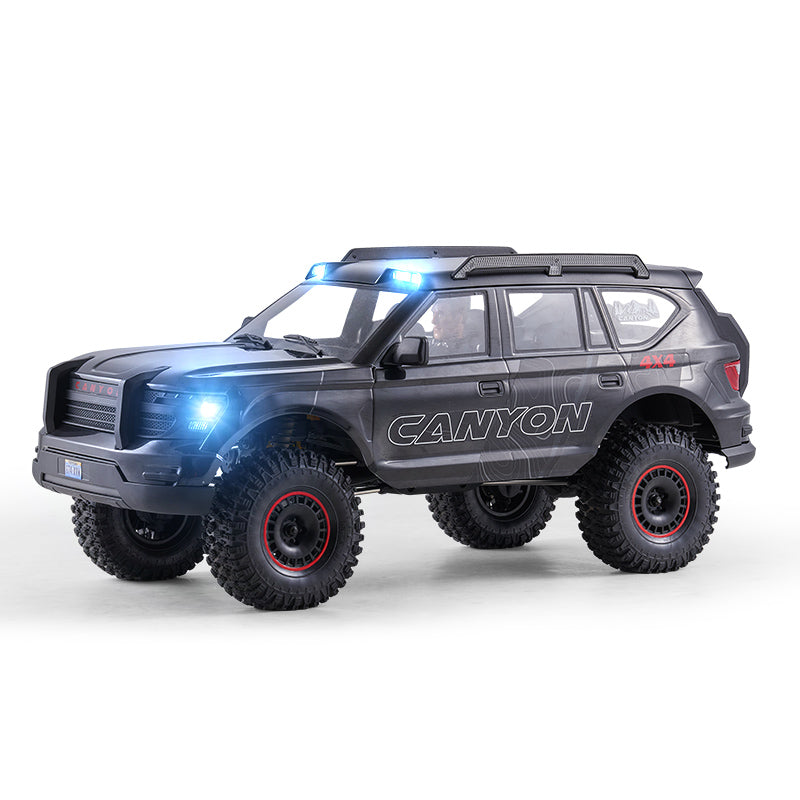

FMS Canyon RS

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.

Gearing parts

Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.

How these numbers were settled

FMS's specification table prints a 14T pinion on a 33T spur, both M0.6, and a 116 x 42mm tire.

• The motor is a 32T 550 brushed can, so there is no KV.
• The ESC is a Hobbywing 1060, which Hobbywing rates at 2-3S LiPo, matching FMS's '2-3S' battery recommendation.
• The truck has a two-speed transmission and servo-locked front and rear differentials, but FMS prints no transmission or axle ratio and the manual is a scanned document with no readable ratio, so the ratio after the spur and the final drive are left blank.
• The 9 mph figure is FMS's '15KM/h' maximum speed.
• This is the RS version, sold with radio and electronics but without battery or charger; FMS11041RSBK is the black edition's SKU.

Documents

• ManualInstruction manual, 1/10 Canyon (FMS PDF) (opens in a new tab)Specification p. 7
• Parts listParts list, 1/10 Canyon (in FMS manual PDF) (opens in a new tab)Gears p. 55; list p. 60

Sources

• fms-1-10-canyon-rsfmshobby.com (opens in a new tab)
• quicrun-10-brushed-eschobbywingdirect.com (opens in a new tab)
• Manual (PDF)cdn-files.myshopline.com (opens in a new tab)
• 1-10-canyon-pinion-gear-14tfmshobby.com (opens in a new tab)
• 1-10-canyon-transmission-ge…fmshobby.com (opens in a new tab)
• 1-10-canyon-550-brushed-mot…fmshobby.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
