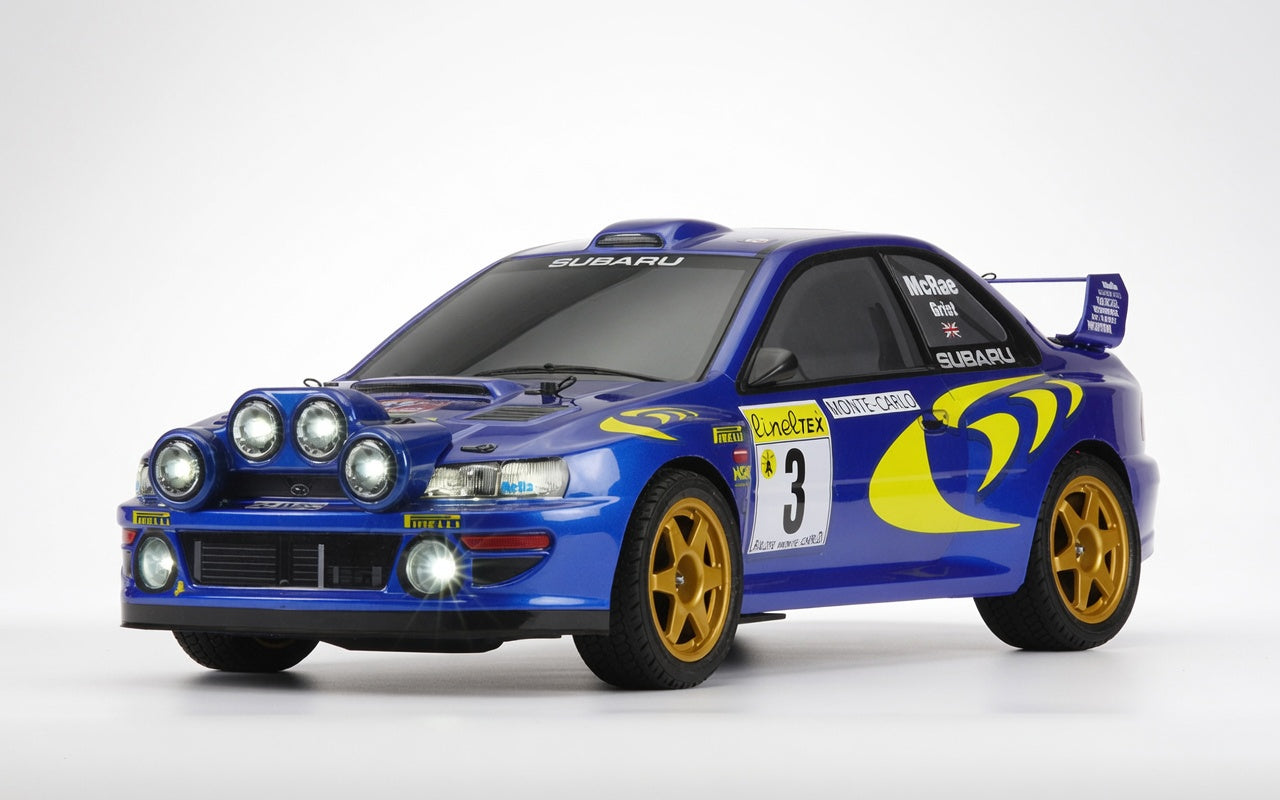

Carisma M48S Subaru WRC 1997 Night Rally Edition
1/8 scale · street and speed-run body · 94168
- Final drive
- 9.97:1
- Tire
- 85mm
Open in Top Speedsourced
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 12TStock | Stock |
| Spur | 46TStock | Stock |
| Transmission & axle | 2.60:1Stock | Stock |
| Spur ÷ pinion | 3.833:1Calculated | Calculated |
| Final drive | 9.97:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 85mmStock | Stock |
| Rollout | 26.8mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not published | |
| Battery | Up to 3SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | Not published | |
| Vehicle | ||
| Part number | 94168 | |
| Scale | 1/8 | |
| Class | Street and speed-run body | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it.
How these numbers were settled
Carisma's product page prints the stock gearing as a 46T M1 spur and a 12T M1 motor pinion with an internal ratio of 15/39, which is a 2.6 reduction after the spur.
- The total is worked out as 46/12 x 2.6 = 9.97.
- The stock tire is 85mm tall front and rear, from Carisma's own page for the stock M48S Tarmac Spec wheel and tire set (16478), and the car ships on Tarmac Spec tires.
- The page states the ESC is rated for 3S.
- Carisma names a 550 size brushless motor but publishes no KV, so the KV is left blank.
Sources
- new-m48s-subaru-wrc-1997-wi…carisma-shop.com (opens in a new tab)
- m48s-tarmat-spec-tires-set-…carisma-shop.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
