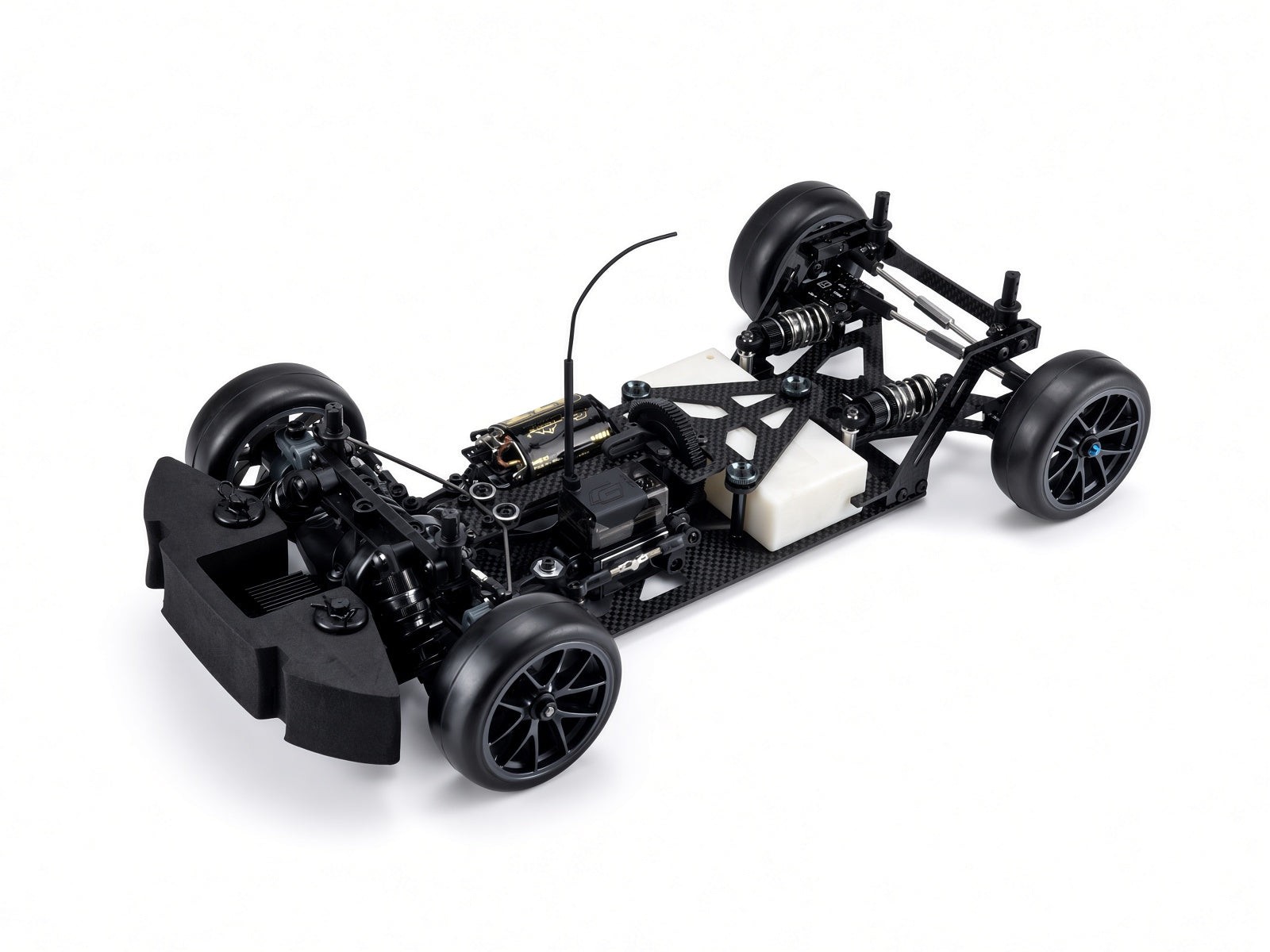

Carisma M40F

The kind of vehicle the maker sells it as. It sets what the car is built to do and which cars it is fair to compare it with.

• Touring cars are 4WD on-road cars for asphalt and carpet tracks, often raced in classes with fixed motor and battery rules.

Only one axle is driven, the rear on almost every 2WD RC car.

• It is lighter and simpler, and it takes more throttle control out of corners.

Sold without a motor, so you choose the motor, ESC and battery yourself.

• Rows that depend on the motor say so.

A kit you build yourself from parts.

• Most kits come without motor, ESC, servo, radio and battery, and many without tires or a painted body.
• The manual lists what to add.

The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement.

• A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size.

The maker's product number for this exact version.

• A V2, a new color, or a kit instead of an RTR usually has a different number, and parts can differ between them.
• Check it against your box or receipt before ordering parts.

The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite.

• It depends on the motor you fit, so the maker does not list one.

The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter.

• Pinion and spur must have the same pitch, or tooth size, to mesh.

Every reduction after the spur, multiplied together: transmission, differentials and axle gears.

• It is fixed by the design; the gearing you change is the pinion and spur.

How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed.

• On-road racers often compare gearing by rollout instead, because tire sizes differ between cars.

The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller.

• Race tires wear down over a day, and a smaller tire gears the car shorter.

The hex on the axle that the wheel locks onto and is driven by. A wheel must match the hex size to fit.

• 12 mm is the common size on 1/10 cars, so most 1/10 wheels fit; offset and width still vary.
• The wheel nut is a separate size, so check its thread too before buying nuts.

Motor KV is the RPM a motor turns per volt with no load.

• This vehicle comes without a motor, so there is no stock KV; it depends on the one you fit.

The highest LiPo cell count the maker rates the electronics for.

• This vehicle comes without electronics, so it depends on the ESC and motor you fit.

It needs a motor KV, and this vehicle comes without a motor. Fit one and the calculator works it out from the motor's KV and the gearing.
