Tamiya TC-01 Chassis

Name: Tamiya TC-01
Brand: Tamiya

1/10 scale · 4WD chassis · sold as kits

Tamiya's TC-01 is a 1/10 four-wheel-drive monocoque chassis with a mid-mounted motor, sold as kits under racing car bodies.

Every kit shares the 63T spur and a 2.50:1 gearbox and axle stage on a 257 mm wheelbase, so the pinion you fit sets the final drive. The pinion, motor and tires come with each kit. Enter the kit pinion and your tire size in the gearing tool before changing anything.

Transmission & axle: 2.50:1
Spur: 63T
Wheelbase: 257mm
Introduced: 2020

Gearing Top speedverified

The pinion, motor and tires come with each kit: enter yours in the gearing tool.

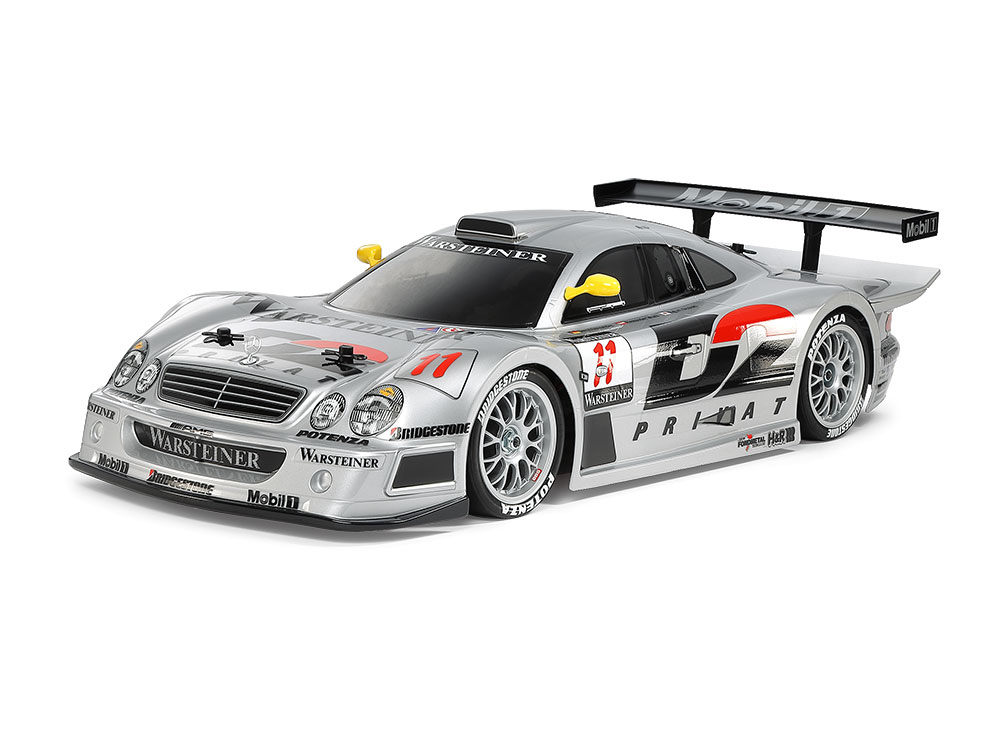

Tamiya TC-01 — Photo: Tamiya (opens in a new tab)

Kits on this chassis Built on the TC-01

Each kit adds its own body, tires, pinion and motor. The chassis figures below apply to all of them.

Kit	Part no.	Maker page

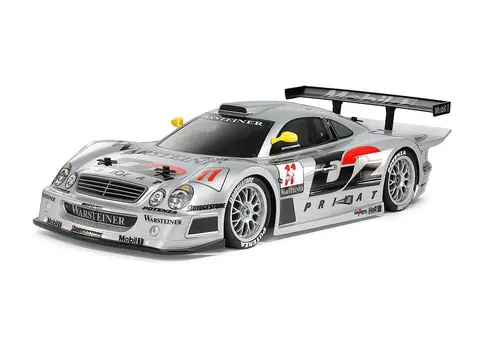

1997 Mercedes-Benz CLK-GTR	58731	tamiya.comPage (opens in a new tab)

Specifications

Last modified Sep 29, 2026

Spec	Value	Basis
Vehicle
Class The kind of vehicle the maker sells it as. It sets what the car is built to do and which cars it is fair to compare it with. Touring cars are 4WD on-road cars for asphalt and carpet tracks, often raced in classes with fixed motor and battery rules. The maker does not name a class for this one, so this is the site's judgment from its design. Drive All four wheels are driven, which puts power down more evenly and keeps the car steadier accelerating out of corners. The cost is more parts to maintain. Build A kit you build yourself from parts. Most kits come without motor, ESC, servo, radio and battery, and many without tires or a painted body. The manual lists what to add. Scale The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement. A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size.
Class	Touringour call
Drive	4WD
Build	Kit
Scale	1/10
Drivetrain
Pinion The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite. On a chassis sold as kits, each kit brings its own. Spur The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter. Pinion and spur must have the same pitch, or tooth size, to mesh. Transmission & axle Every reduction after the spur, multiplied together: transmission, differentials and axle gears. It is fixed by the design; the gearing you change is the pinion and spur. This one is worked out from the tooth counts the maker publishes. Final drive How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed. On-road racers often compare gearing by rollout instead, because tire sizes differ between cars.
Pinion	With each kit
Spur	63TStock	Stock
Transmission & axle	2.50:1Derived	Derived
Final drive	With each kit
Wheels & tires
Tire diameter The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller. Race tires wear down over a day, and a smaller tire gears the car shorter.
Tire diameter	With each kit
Power
Motor Motor KV is the RPM a motor turns per volt with no load. This vehicle comes without a motor, so there is no stock KV; it depends on the one you fit. Battery The highest LiPo cell count the maker rates the electronics for. This vehicle comes without electronics, so it depends on the ESC and motor you fit.
Motor	With each kit
Battery	With each kit
Size & weight
Wheelbase The distance between the front and rear axle centers. A longer wheelbase is steadier at speed and over bumps; a shorter one turns more tightly.
Wheelbase	257 mm10.1 inStock	Stock

How to read these figures

Stock is as the vehicle ships.
Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart.
Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how.
With each kit means each kit on this chassis brings its own, so enter yours in the gearing tool.

How these numbers were settled

TC-01 is a monocoque 4WD chassis with a mid-mounted motor, sold under racing car bodies.

Tamiya's 2026 All-Japan rules list the TC-01 on a 63T spur with a 22T pinion at 7.16:1, which gives a stage after the spur of 7.16 x 22/63 = 2.500.
The CLK-GTR kit page prints a ratio range of 7.50:1 to 5.25:1, with 6.56:1 on the kit-standard 24T pinion: (63/24) x 2.5 = 6.56, and the range matches 21T to 30T pinions on the same spur, so the spur and the 2.5 stage are derived from two Tamiya documents that agree.
The pinion, motor and tires come with each kit.
The first TC-01 kit, the Formula E Gen2 (58681), no longer has a Tamiya page.
