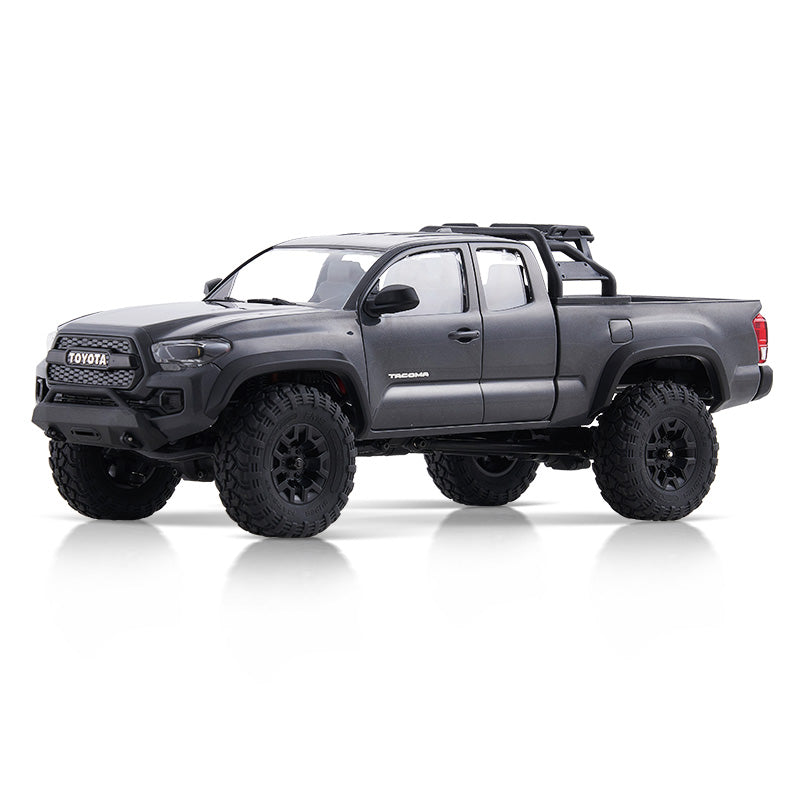

VehiclesFMS FCX24M Toyota Tacoma
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 11TStock | Stock |
| Spur | 70TStock | Stock |
| Transmission & axle | Not published | |
| Final drive | Not published | |
| Wheels & tires | ||
| Tire diameter | 47mmStock | Stock |
| Power | ||
| Motor | Not applicable | |
| Battery | Up to 2SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | FMS12451RTR | |
| Scale | 1/24 | |
| Class | Scale crawler | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
How these numbers were settled
The manual's spare parts list (MAN-G0335) names an '11t Pinion Gear' (plain and brass versions) and a 'Spur Gear 70t 0.3 (Pom)', read here as the fitted motor pinion and the spur it drives; the list does not show the mesh, so that pairing is taken from the part names.
- FMS's product page prints the tire as 'Ø47 × 17 mm'.
- The motor is an 050-size brushed can, so there is no KV.
- The FMS-R3A receiver and ESC unit is rated for a '2S LiPo battery', and the truck ships with a 2S 380mAh pack.
- The two-speed transmission's 17T steel gears appear in the parts list, but FMS prints no transmission or axle ratio, so the ratio after the spur and the final drive are left blank.
- FMS12451RTRGY is the grey edition; red and blue editions share the page.
Sources
- fms-1-24-fcx24m-toyota-taco…fmshobby.com (opens in a new tab)
- Manual (PDF)cdn-files.myshopline.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
